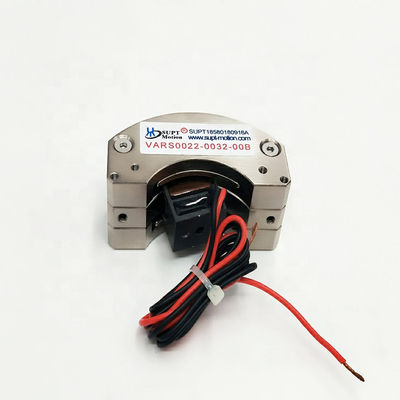

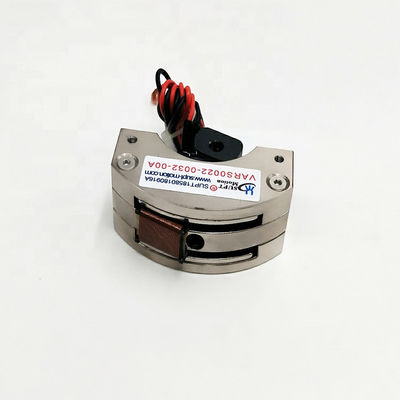

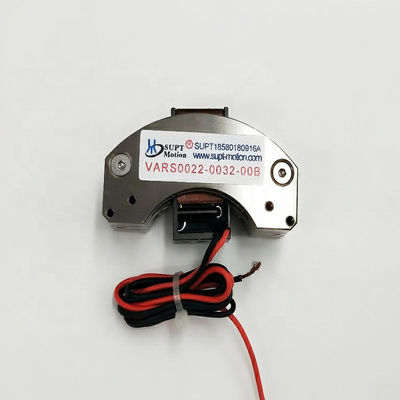

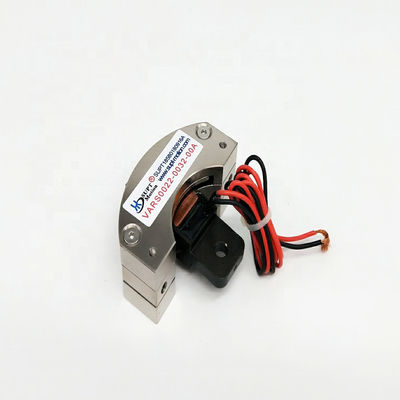

Torque 1-50NM Micro Coreless Motor Coreless Linear Motor For Optical Scanning
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001,CCC |
| Model Number | VARS0022-032-00A |
| Minimum Order Quantity | ≥1 |
| Price | $145.00/pieces 1-59 pieces |
| Packaging Details | Carton packing |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 1000 Piece/Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, Optical Scanning, Positioning, Focusing, Etc., Precision Control Of Fast Mirror. And Micro Machine Tool Industries |
|---|---|---|---|
| Type | Micro Motor | Torque | 30 |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | 20 |
| Continuous Current(A) | 1.4A | Efficiency | IE 1 |
| Peak Torque(N-m) | 0.22 | Maximum Travel(mm) | 32 |
| Coreless Motor (V) | 15.5 | Continous Torque(N-m) | 0.12 |
| Back EMF Constant(L-L)(Kb) | 0.16 | Coil Weight(g) | 21.5 |
| Length(mm) | 60 | Width(mm) | 51.5 |
| Height(mm) | 26 | Port | Shanghai |
| Highlight | 50NM Micro Coreless Motor,Micro Coreless Motor For Optical Scanning,Torque 1NM Coreless Linear Motor |
||
Product Description
Torque 1-50N. M Micro Linear Motor Coreless For Optical Scanning
Product Description
Linear motors find applications in optical scanning for their precise and rapid movement capabilities. In optical scanning, linear motors are utilized to move optical components such as mirrors or lenses in a linear path, enabling the manipulation of the direction and angle of light beams for scanning purposes. This is crucial in various optical systems including laser engraving, laser marking, barcode scanning, and medical imaging.
The linear motor's high accuracy and quick response allow for precise positioning of optical elements, ensuring accurate scanning patterns and image acquisition. By controlling the electric current applied to the motor's coils, the position and speed of the optical components can be precisely adjusted, resulting in controlled scanning motions.
Linear motors also offer advantages such as no mechanical wear (since there is no physical contact), high acceleration capabilities, and minimal backlash. These qualities contribute to their effectiveness in optical scanning applications where precision, repeatability, and speed are critical.
Technical Parameters:
| VARS Series of Swing type voice coil motor | ||||||||
| Model | Peak torque(N-M) | Continuous torque25℃(N-M) | Maximum travel(mm) | Voltage(V) | Back EMF constant(V/m/S) | Coil weight(g) | Width*height (mm) | Length(mm) |
| VARS0008-026-00A | 0.080 | 0.045 | 26.0 | 6.4 | 0.045 | 11.7 | 39.8*26.1 | 35.00 |
| VARS0017-090-00A | 0.170 | 0.110 | 90.0 | 11.1 | 0.11 | 18.0 | 44*39 | 70.00 |
| VARS0022-032-00A | 0.220 | 0.120 | 32.0 | 15.5 | 0.16 | 21.5 | 51.5*26 | 60.00 |
| VARS0042-040-00A | 0.420 | 0.380 | 40.0 | 3.5 | 0.12 | 38.0 | 53.6*30.3 | 82.00 |
| VARS0077-020-00A | 0.770 | 0.630 | 20.0 | 6.7 | 0.24 | 66.0 | 50*30 | 75.00 |
| VARS0084-030-00A | 0.840 | 0.600 | 30.0 | 6.3 | 0.2 | 54.2 | 48.9*30.6 | 75.00 |
| VARS0120-020-00A | 1.200 | 1.200 | 20.0 | 8.4 | 0.67 | 65.0 | 73.5*32 | 80.00 |
| VARS0706-014-00A | 7.100 | 2.100 | 14.0 | 52.4 | 1.03 | 220.0 | 65*54.5 | 115.00 |
| VARS4520-030-00A | 45.200 | 19.000 | 30.0 | 71.5 | 4.3 | 1300.0 | 240*78 | 240.00 |
Applications:
Rotary Voice Coil Motor (VCM) is a kind of curved voice coil motor, made of high-quality aluminum alloy, model VARS0022-032-00A. This motor is designed to provide maximum strength and durability. The rotary actuator uses rectangular linear actuator technology and bending thermal technology to provide a high-resolution finite angle positioning system. The typical stroke angle exceeds 100 degrees and the torque reaches 50 N · m. Swing type products are typically used in laser technology in the mirror locator, robotics, medical, automation equipment, aerospace' semiconductor and other industrial fields. Its high quality components ensure smooth and reliable operation, making it a reliable choice for your application. It is also easy to install and maintain. It is a great choice for high performance and reliable applications.
