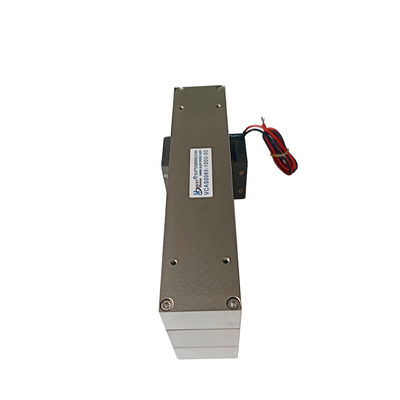

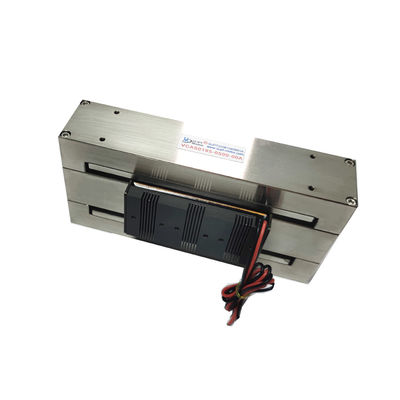

High Speed High Precision Rectangular Linear Motor Actuators For Industrial Robots
| Place of Origin | China,Suzhou |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | CE, ISO9001 |
| Model Number | VCAS Series |
| Minimum Order Quantity | 2PCS |
| Price | $188 |
| Packaging Details | Customized packaging etc. |
| Delivery Time | 1-5pcs ,5 days . >20pcs ,To be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | VCAS0013-0343-00A | Power Source | Electricity |
|---|---|---|---|
| Material | Aluminum Alloy | Noise Level | Low |
| Peak Force | 13N | Stroke | 34.3mm |
| Frequency | 50 | Max Voltage （V） | 12.6 |
| Weight Of The Coil (g) | 40 | Protect Feature | Totally Enclosed |
| Speed | High Speed | ||
| Highlight | High Speed Linear Motor Actuators,Industrial Robots Linear Motor Actuators,High Precision Linear Motor Actuators |
||
Product Description
Product Description:
A rectangular linear motor is a type of motor that directly drives a load through linear motion. Its structure is characterized by an electromagnetic coil directly opposed to a permanent magnet, providing linear motion without conventional mechanical transmission components. Due to their high precision, high speed and high responsiveness, rectangular linear motors are increasingly used in industrial robots.
Rectangular linear motors have high positioning accuracy and are capable of sub-micron motion control. This makes it ideal for industrial robot tasks that require high-precision positioning, such as precision assembly, automated welding, and painting.
During precision assembly, the robot needs to place parts into a specified position very accurately. Rectangular linear motors are able to provide millisecond response times and micrometer-level accuracy to ensure that parts are accurately placed and mounted.
In precision welding, the robot's motion path needs to maintain extremely high accuracy, and rectangular linear motors can ensure the stability and consistency of the weld point position.
In automated production lines, industrial robots may need to move and transfer materials quickly. Rectangular linear motors are able to accomplish such tasks with very high acceleration and speed, reducing cycle times and increasing productivity.
In high-speed stamping, cutting and other machining processes, the robot's trajectory needs to be very precise and fast, rectangular linear motors can quickly respond to control commands to ensure processing accuracy and speed.
The frictionless design of rectangular linear motors makes them very low maintenance. For industrial robots that require high reliability, the low-maintenance nature of rectangular linear motors reduces the frequency of downtime and maintenance and improves overall productivity.
Features:
Rectangular type voice coil linear motorized sub-coils are lightweight, with short response time and high frequency.
Long stroke, effective stroke 1mm-200mm.
High thrust, peak thrust 1N-800N.
Commonly used for x-y axis motion platforms.
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAS0002-0498-00A | 2.1 | 1.3 | 50 | 11.3 | 1.3 | 15 | 72 | 42.6 | 33 |
| VCAS0002-0747-00A | 2.1 | 1.3 | 74.7 | 11.3 | 1.3 | 15 | 100.5 | 42.6 | 37 |
| VCAS0006-0030-00A | 6.1 | 3.2 | 3 | 13.3 | 4.6 | 18.2 | 25.1 | 34.1 | 27 |
| VCAS0006-0099-00A | 6.1 | 3.2 | 10 | 13.7 | 4.6 | 18.2 | 33.5 | 34.1 | 26.9 |

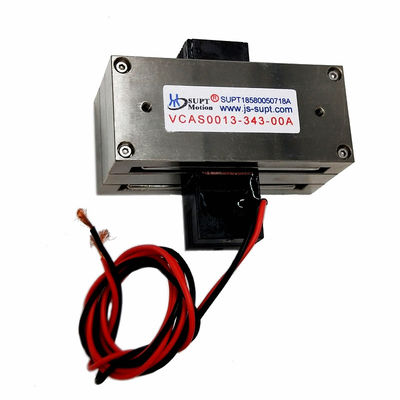

| VCAS0013-0343-00A | 13 | 8 | 34.3 | 12.6 | 5.8 | 40 | 68.3 | 60 | 34.8 |
| VCAS0065-1000-00A | 65 | 22.4 | 100 | 28.7 | 9.7 | 135 | 170 | 59.6 | 81.9 |
Applications:
Main applications of rectangular voice coil linear motors:.
1. Semiconductor industry: wiring, cutting, drilling, transportation systems, welding, robotics.
2. Micro-machinery industry: feeding system, micro-drilling, precision stamping.
