Product Description:

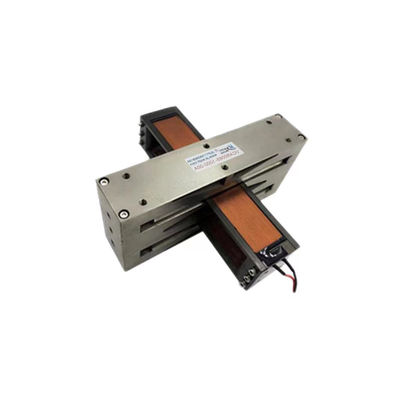

The Rectangular Voice Coil Motor (RVCM) can achieve X-Y axis motion through two mutually perpendicular rectangular coils. This design allows for precise motion control on a two-dimensional plane. The following is the general process of how a rectangular voice coil motor achieves X-Y axis motion:
X-axis motion:  A rectangular coil in RVCM is placed in a position aligned with the X-axis. When current is transmitted through this coil, according to the Lorentz force, the coil will generate motion on the X-axis. By controlling the magnitude and direction of the current passing through the coil, precise X-axis positioning can be achieved.
Y-axis motion:  Another rectangular coil is placed in a position aligned with the Y-axis. By transmitting current to this coil, a Lorentz force is also generated, causing the motor to move on the Y-axis.
Rectangular voice coil motors are mainly used in markets that require high precision, fast response, and compact size. Some major market areas include:
1.  Semiconductor manufacturing: In the semiconductor industry, rectangular voice coil motors can be used for precise positioning, calibration, and motion control in semiconductor equipment.
2.  Medical Equipment:  In the medical field, rectangular voice coil motors can be used for precise positioning, control of surgical tools, and motion control of imaging equipment.
3.  Optical System: The rectangular voice coil motor in the optical system can be used for precise adjustment of optical components, lens positioning, etc.
4.  Automation and Robotics:  In the field of automation and robotics, rectangular voice coil motors can be used for precise position control, picking, and placement operations.
5.  Aerospace:  In the aerospace field, rectangular voice coil motors can be used for applications such as satellite positioning and aircraft control.
6.  Laboratory Automation:  In the laboratory, rectangular voice coil motors can be used for precise sample positioning, droplet manipulation, and more.
7.  Micro manufacturing and micro machining:  In the field of micro manufacturing and micro machining, rectangular voice coil motors can be used for positioning and machining of small size components.

Features:

• Product Name: Linear Motor Actuator
• Type: Rectangular Type Actuator
• Linear Motor Drive System
• Linear Actuator Motor
• Linear Electric Mechanical System
• Lifetime:100 million times
• Voltage: 11V
• Speed: High

Technical Parameters:

Applications:

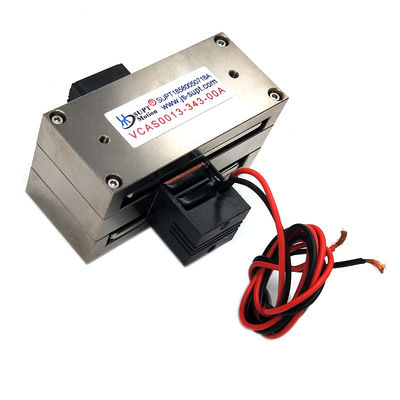

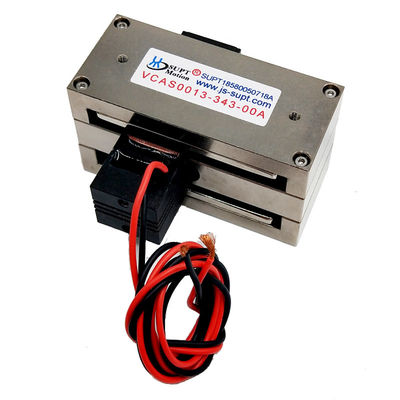

Linear motor drivers are a reliable and cost-effective solution for motion control and high accuracy motor applications. VCAS series rectangular voice coil motors are designed for reliable and repeatable motion control in a wide range of industrial applications. The moving ring has the advantages of light weight, short response time and high frequency. Long stroke, effective stroke 74.7 mm. High Thrust, peak thrust 2.1N, its thrust up to 1000N, round trip of 250mm is often used to make x-y axis motion platform. Widely used in semiconductor micro-machine tool industry. The Modular design can be processed and customized. Linear motor drives are the perfect choice for a range of applications and industries.

It is often used to make x-y axis movement platform. Widely used in semiconductor micro machine tool industryfield. Modular design,can be processed and customized. The package is carton packaging, and the delivery time is general 5-7 days delivery, fast 3-5 days, bulk to be negotiated. The payment terms are T/T, and the supply ability is available for interview.

Customization:

Support and Services:

We offer technical support and service for our Linear Motor Actuator product. Our team of experienced technicians and engineers are available to provide assistance when you need it.

We can help you troubleshoot problems with your Linear Motor Actuator, provide advice on installation and maintenance, and answer any questions you may have about our product.

We offer free phone and email support to ensure that you get the help you need when you need it.

If you have any questions about our technical support and service for the Linear Motor Actuator, please don't hesitate to contact us.

Packing and Shipping:

Linear motor actuators are packaged and shipped with the utmost care. The following details outline the process for packing and transporting these items.

Linear motor actuators are securely packaged in sturdy cardboard boxes with foam inserts. The boxes are designed to protect the items from shock, vibration, and other environmental factors during transit. All parts and components of the linear motor actuator are inspected for damage before packaging.

Linear Motor Actuator is packaged in accordance with the manufacturer's instructions, and shipped in secure, weather-proof containers.

To ensure the product is delivered safely and on time, all packages are tracked and insured.
