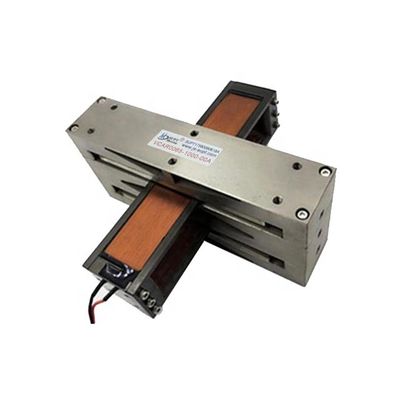

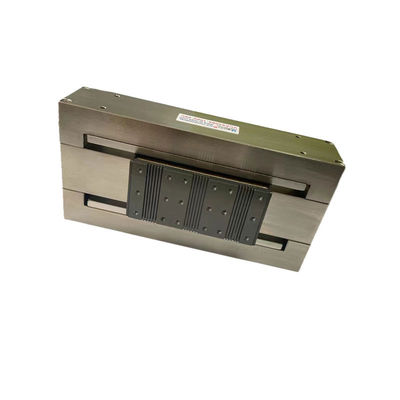

65N Rectangular Type Voice Coil Motor For Laser Cutting Voice Coil Actuator
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce, ISO9001 |
| Model Number | VCAS0065-1000-00A |
| Minimum Order Quantity | 2 pieces |
| Price | $225.00/pieces 2-47 pieces |
| Packaging Details | CARTON |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 600 Piece/Pieces per Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage(V) | 28V | Output Power | TBD |
|---|---|---|---|
| Usage | BOAT, UAV, Robot, Medical Respirator, Microscope, Optics, | Type | Micro Motor |
| Torque | Requests | Construction | Permanent Magnet |
| Commutation | Brush | Protect Feature | Totally Enclosed |
| Speed(RPM) | Variable Speed | Continuous Current(A) | Current |
| Efficiency | IE 1 | Peak Force(N) | 65 |
| Maximum Travel(mm) | 100 | Voice Coil Motor(v) | 28.7 |
| Continuous Force(N) | 22.4 | Weight Rotor(g) | 135 |
| Length*height(mm) | 170*81.9 | Port | Shanghai |
| Highlight | Rectangular Type Voice Coil Motor,65N Voice Coil Motor,65N Laser Cutting Voice Coil Motor Actuator |
||
Product Description
65N Rectangular Type Voice Coil Motor For Laser Cutting High-Accuracy
Product Description:
Using a rectangular voice coil motor (RVCM) in laser cutting involves integrating the motor within the laser cutting system to achieve precise motion control for optimal cutting performance. Here's a presentation in English:
Integration of Rectangular Voice Coil Motor in Laser Cutting:
The integration of a rectangular voice coil motor (RVCM) into laser cutting systems enhances precision and dynamic control, resulting in improved laser cutting efficiency. The process involves the following steps:
1.Positioning of Laser Head:The RVCM is employed to position and move the laser cutting head with high accuracy across the workpiece surface. This ensures precise alignment of the laser beam for cutting operations.
2. Dynamic Focus Adjustment: RVCM is utilized to adjust the focus of the laser beam in real-time as the cutting head moves. This maintains an optimal focus point, ensuring consistent cutting quality throughout the process.
3. Path Following:The motor's responsive control is used to accurately follow the programmed cutting path, enabling intricate and complex cuts without deviations.
4. Multi-Axis Control: In multi-axis laser cutting systems, RVCMs are integrated to control the movement of the cutting head along multiple axes, allowing for intricate and three-dimensional cuts.
5. Raster and Vector Cutting: RVCMs are used to switch between raster and vector cutting modes by adjusting the speed and path of the laser head movement, ensuring efficient material removal for various cutting tasks.
6. Dynamic Compensation: The motor compensates for material irregularities or variations in workpiece flatness, maintaining a consistent distance between the laser head and the workpiece surface for uniform cutting depth.
7. Speed and Acceleration Control:RVCMs provide precise control over speed and acceleration, enabling the laser cutting system to achieve optimal cutting parameters for different materials and thicknesses.
8. High-Speed Cutting: The motor's fast response allows for high-speed cutting operations while maintaining accuracy and quality, contributing to increased productivity.
9. Micro-Cutting: In micro-cutting applications, RVCMs enable extremely precise positioning and movement of the laser beam, facilitating the creation of intricate micro-scale features.
10. Closed-Loop Feedback: Integration with position feedback systems, such as encoders, allows RVCMs to operate in closed-loop control, further enhancing precision and repeatability.
Technical Parameters:

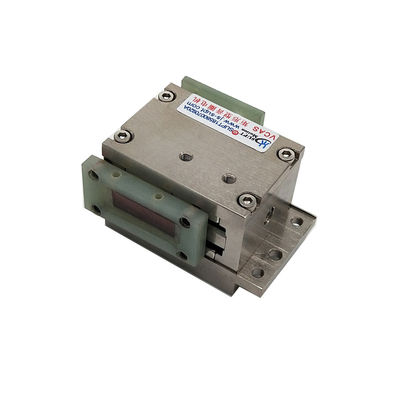

| VCAS Series of Rectangular type voice coil motor | ||||||||
| Model | Peak force(N) | Continuous force25℃(N) | Maximum travel(mm) | Voltage(V) | Back EMF constant(V/m/S) | Mover weight(g) | Width*height (mm) | Length(mm) |
| VCAS0002-0498-00A | 2.1 | 1.3 | 49.8 | 11.3 | 1.3 | 16.0 | 42.6*33 | 72.0 |
| VCAS0002-0747-00A | 2.1 | 1.3 | 74.7 | 11.3 | 1.3 | 16.0 | 42.6*37 | 100.5 |
| VCAS0006-0030-00A | 6.1 | 3.2 | 3.0 | 13.3 | 4.6 | 18.2 | 34.1*27 | 25.1 |
| VCAS0006-0099-00A | 6.1 | 3.2 | 9.9 | 13.7 | 4.6 | 18.2 | 34.1*26.9 | 33.5 |
| VCAS0013-0343-00A | 13.0 | 8.0 | 34.3 | 12.6 | 5.8 | 40.0 | 59.9*34.8 | 68.3 |
| VCAS0065-1000-00A | 65.0 | 22.4 | 100.0 | 28.7 | 9.7 | 135.0 | 59.6*81.9 | 170.0 |
Application:
Linear motor actuators are ideal for applications that require high-precision, fast, and reliable linear motion. It is characterized by light weight, short response time and high frequency. It can be used in a variety of applications, such as industrial automation, robotics and precision instrumentation. This linear motor actuator is a cost-effective solution for your linear motion control needs. It is designed to provide high accuracy and superior performance. It is also easy to install and maintain. Under the same volume, the thrust of VCAS series rectangular voice coil motor is less than that of cylindrical voice coil motor. But the stroke is longer, its rectangular motor thrust of 1000N and round trip for 250 mm. VCAS series rectangular voice coil motors are the ideal solution for X-Y axis motion, which is primarily marketed in the semiconductor and micro machine tool industries.
