High Frequency Rectangular Voice Coil Motors For Use In Automation Equipment
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001,CCC |
| Model Number | VCAS0013-0343-00A |
| Minimum Order Quantity | 2 pieces |
| Price | $180.00/pieces >=2 pieces |
| Packaging Details | in carton and as customer requirements<br>voice coil motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 3000 Piece/Pieces per Month voice coil motor |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical Project |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | Variable Speed |
| Continuous Current(A) | 2.2A | Efficiency | IE 1 |
| Product Name | Voice Coil Motor | Keywords | Voice Coil Motor |
| Rated Voltage | 12.1V | Peak Force | 13N |
| Continuous Force | 8N | Maximum Travel | 34.3mm |
| Port | Shanghai Port | ||
| Highlight | Electric Linear Motor Actuator,Linear Motor Actuator Vibration vcm,Rectangular Perpetual Magnetic Motor vcm |
||
Product Description
Electric Motor Winding Wire Special Drive Control Technology Vibration Rectangular Voice Coil Motor
Product Description
Rectangular Voice Coil Motor (VCM) is widely used in various automation equipments due to its advantages of high response speed, precise control and contactless friction.
For example, rectangular voice coil motor plays a vital role in semiconductor manufacturing equipment such as:
Photolithography machines: used to adjust the exact position of the lens and mirror of the optical system.
Wafer Handling: for precise position control and fast response during wafer dicing, packaging and testing.
Next also used for precision measurement and test equipment:
Coordinate Measuring Machine (CMM): Rectangular voice coil motors are used to drive the measurement probes, providing high precision displacement control and fast response to ensure accurate measurement results.
Mechanical Test Equipment: Used to apply precise force and displacement control in the testing of mechanical properties of materials.
In automated optical equipment
Auto Focus System: In microscopes and camera equipment, rectangular voice coil motors are used to drive the focusing lens, providing fast and precise focusing.
Optical Stage: Used to adjust the position of optical components for high precision optical path adjustment and stabilization control.
The VCAS series of Rectangular Voice Coil Motor
|
Product Mdel
|
Peak Force
(N)
|
Continious
Force
(N)
|
Total Stroke
(mm)
|
Max
Voltage
(V)
|
Back EMF
Constant
(V/m/S)
|
Weight of the Coil
(g)
|
Length(mm)
|
Width
(mm)
|
|
VCAS0013-0343-00A
|
13
|
8
|
34.3
|
12.6
|
5.8
|
40
|
68.3
|
60
|
|
VCAS0002-0498-00A
|
2.1
|
1.3
|
49.8
|
11.3
|
1.3
|
16
|
72
|
42.6
|
|
VCAS00020-0747-00A
|
2.1
|
1.3
|
74.7
|
11.3
|
1.3
|
16
|
100.5
|
42.6
|
|
VCAS0006-0030-00A
|
6.1
|
3.2
|
3
|
13.3
|
4.6
|
18.2
|
25.1
|
34.1
|
|
VCAS0006-0099-00A
|
6.1
|
3.2
|
10
|
13.7
|
4.6
|
18.2
|
33.5
|
34.1
|
|
VCAS0013-0343-00A
|
13
|
8
|
34.3
|
12.6
|
5.8
|
40
|
68.3
|
60
|
|
VCAS0065-1000-00A
|
65
|
22.4
|
100
|
28.7
|
9.7
|
135
|
170
|
59.6
|
Applications:

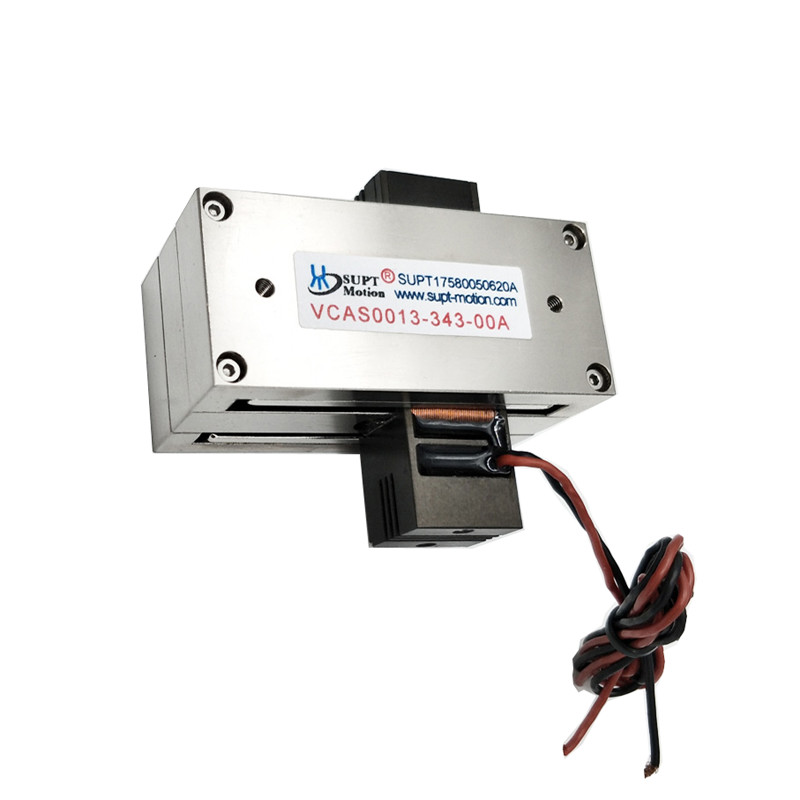

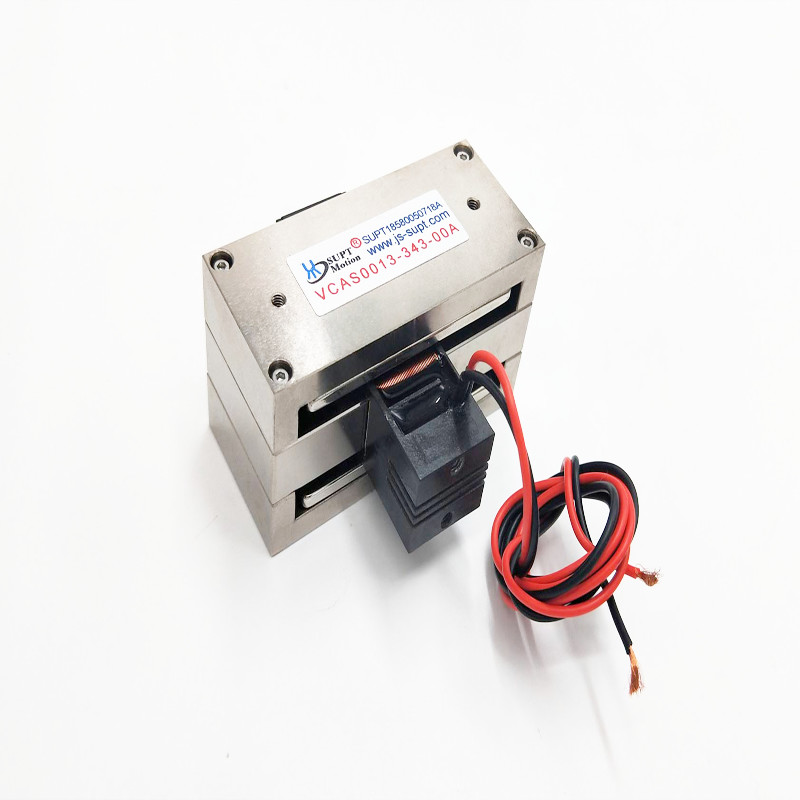

Rectangular voice coil motor linear motor is a linear drive system designed for precision linear motion. The model VCAS0013-0343-00A, this linear electromechanical actuator is completely closed, characterized by the rotor coil light, short response time, high frequency. Long stroke, effective stroke 1mm-200mm, thrust, the linear motor drive unit with 12.1 V voltage, high-speed motor, . It also has a completely enclosed protection function, in the rated current of 2.2 a work. Linear motor drivers are a reliable and cost-effective solution for applications requiring motion control and accuracy. This closed motor actuator is designed for reliable and repeatable motion control in a wide range of industrial applications, commonly used in the production of x-y axis motion platform, widely used in semiconductor, micro-machine tool industry.
Detailed Images
Certifications
Our Company
Suzhou Unite Precision Technology Co,Ltd.(SUPT Motion)is an engineering and manufacturing company dedicated to providing Voice Coil Actuator linear motor and linear motor platform,SUPT Motion is to provide both a standard distribution product and also madium and high volume custom OEM solutions.The primary product is voice coil based linear and rotary actuator and brushless permantent magnet type linear motor.
The company has strong R&D capability perfect after sale service system.SUPT Motion is able to according to customer specific requirements design and produce voice coil motor linear motor and all kinds of linear motion platform.With many years of experience,our international engineering and manufacturing staff is able to provide the most advanced technology and best quality product for the Asia,North America,Europe and the world varios areas of voice coil motor and linear motor customers and dealers.
The company is able to provide cost effective solution to you large OEM production requirement for you by being based in the manufacturing centers of Suzhou,we will continue to improve in technology strive for perfection in the quality.Adhering to the tenet of SUPT Motion Hight quality is our pursult,Customer satisfaction is our commitment.With our strict quality deparment and production deparment ensure that our high quality and inexpensive products motor more cost-effective to serve customers make it has strong competitiveness.
