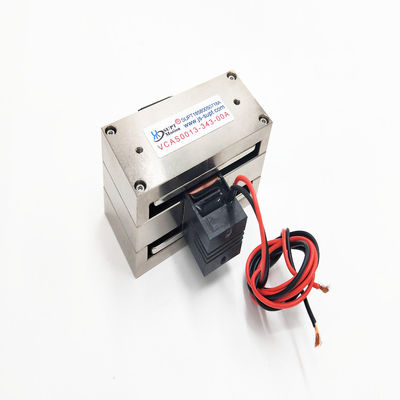

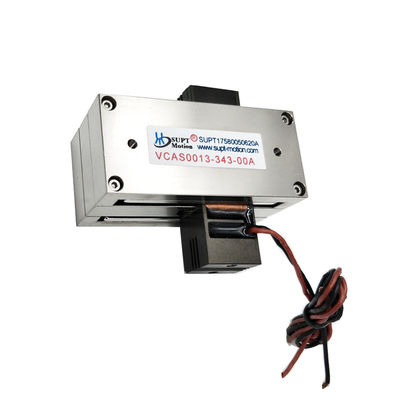

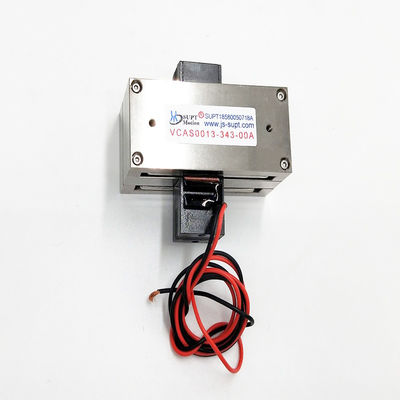

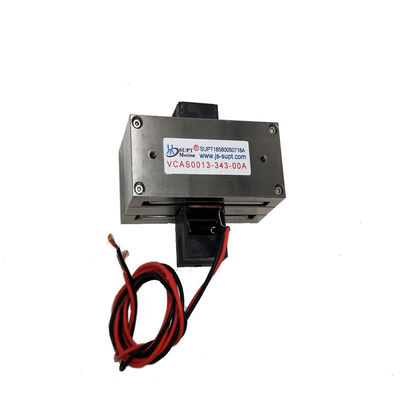

Low Inductance Electric Motor Linear Actuator High Response Voice Coil Motor
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001,CCC |
| Model Number | VCAS0013-0343-00A |
| Minimum Order Quantity | 2 pieces |
| Price | $180.00/pieces >=2 pieces |
| Packaging Details | in carton and as customer requirements<br>voice coil motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 3000 Piece/Pieces per Month voice coil motor |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical Project |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | Variable Speed |
| Continuous Current(A) | 2.2A | Efficiency | IE 1 |
| Product Name | Voice Coil Motor | Keywords | Voice Coil Motor |
| Rated Voltage | 12.1V | Peak Force | 13N |
| Continuous Force | 8N | Maximum Travel | 34.3mm |
| Port | Shanghai Port | ||
| Highlight | Low Inductance Electric Motor Linear Actuator,Electric Motor Linear Actuator High Response,High Response Voice Coil Motor |
||
Product Description
Low Inductance High Response Motor Small Vibrating Rectangular Voice Coil Motor
Product Description
A rectangular voice coil motor (RVCM) with features such as low current consumption, compact size, and high responsiveness finds suitability across various industry sectors.
The distinctive characteristics of a rectangular voice coil motor (RVCM), including low current consumption, compact dimensions, and rapid responsiveness, make it well-suited for a range of industries. Some notable sectors include:
1. Precision Optics: In industries like precision optics, RVCMs are employed for precise positioning of optical components, beam steering, and focusing applications, enhancing optical system performance.
2. Medical Devices;RVCMs find use in medical devices, particularly in applications requiring precise motion, such as surgical tools, minimally invasive procedures, and diagnostic imaging equipment.
3. Micro-Manufacturing: Industries involved in micro-manufacturing and microfabrication benefit from RVCMs' accuracy, making them suitable for micro-assembly, micro-lithography, and micro-machining processes.
4. Semiconductor Manufacturing: RVCMs are utilized in semiconductor manufacturing for tasks like wafer alignment, probe movement, and micro-positioning in lithography equipment.
5. Aerospace and Defense: These motors are valuable for applications like optics alignment in satellites, unmanned aerial vehicles (UAVs), and precision control mechanisms in aerospace and defense equipment.
6. Microscopy and Imaging: Industries involving microscopy and imaging benefit from RVCMs' ability to precisely position samples, lenses, and imaging systems for high-resolution imaging.
7. Robotics and Automation:RVCMs are integrated into robotic systems for precise positioning, actuation of grippers, pick-and-place operations, and automation tasks.
The VCAS series of Rectangular Voice Coil Motor
|
Product Mdel
|
Peak Force
(N)
|
Continious
Force
(N)
|
Total Stroke
(mm)
|
Max
Voltage
(V)
|
Back EMF
Constant
(V/m/S)
|
Weight of the Coil
(g)
|
Length(mm)
|
Width
(mm)
|
|
VCAS0013-0343-00A
|
13
|
8
|
34.3
|
12.6
|
5.8
|
40
|
68.3
|
60
|
|
VCAS0002-0498-00A
|
2.1
|
1.3
|
49.8
|
11.3
|
1.3
|
16
|
72
|
42.6
|
|
VCAS00020-0747-00A
|
2.1
|
1.3
|
74.7
|
11.3
|
1.3
|
16
|
100.5
|
42.6
|
|
VCAS0006-0030-00A
|
6.1
|
3.2
|
3
|
13.3
|
4.6
|
18.2
|
25.1
|
34.1
|
|
VCAS0006-0099-00A
|
6.1
|
3.2
|
10
|
13.7
|
4.6
|
18.2
|
33.5
|
34.1
|
|
VCAS0013-0343-00A
|
13
|
8
|
34.3
|
12.6
|
5.8
|
40
|
68.3
|
60
|
|
VCAS0065-1000-00A
|
65
|
22.4
|
100
|
28.7
|
9.7
|
135
|
170
|
59.6
|
Applications:
Linear motor voice coil motor is a kind of advanced rectangular voice coil motor, its model is VCAS0013-0343-00A, aiming at providing high voltage, high speed linear motor system for applications requiring precise positioning accuracy and protection function. The linear motor drive unit has a voltage of 12.1 V, high-speed motor, positioning accuracy of 0.1 mm. It also has a completely enclosed protection function, in the rated current of 2.2 a work. This linear motor driver is the perfect solution for a variety of industrial applications requiring precise positioning accuracy and environmental hazard protection. And can provide 12.1 V high-voltage and high-speed motor to achieve excellent performance. Its main applications in yachts, cars, electric bicycles, UAV, 3D printing, microscopy, robotics, medical ventilator, commercial fields, so it becomes an ideal choice for various applications. In addition, its positioning accuracy of 0.1 mm is ideal for applications where precise and accurate positioning is necessary.
Detailed Images
Certifications
Our Company
Suzhou Unite Precision Technology Co,Ltd.(SUPT Motion)is an engineering and manufacturing company dedicated to providing Voice Coil Actuator linear motor and linear motor platform,SUPT Motion is to provide both a standard distribution product and also madium and high volume custom OEM solutions.The primary product is voice coil based linear and rotary actuator and brushless permantent magnet type linear motor.
The company has strong R&D capability perfect after sale service system.SUPT Motion is able to according to customer specific requirements design and produce voice coil motor linear motor and all kinds of linear motion platform.With many years of experience,our international engineering and manufacturing staff is able to provide the most advanced technology and best quality product for the Asia,North America,Europe and the world varios areas of voice coil motor and linear motor customers and dealers.
The company is able to provide cost effective solution to you large OEM production requirement for you by being based in the manufacturing centers of Suzhou,we will continue to improve in technology strive for perfection in the quality.Adhering to the tenet of SUPT Motion Hight quality is our pursult,Customer satisfaction is our commitment.With our strict quality deparment and production deparment ensure that our high quality and inexpensive products motor more cost-effective to serve customers make it has strong competitiveness.
