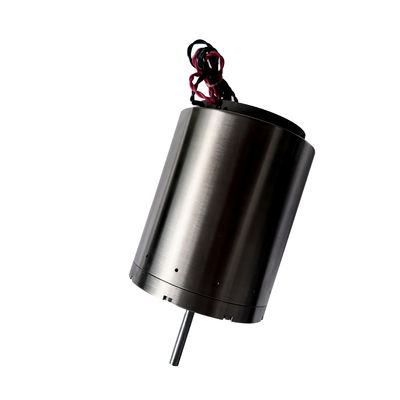

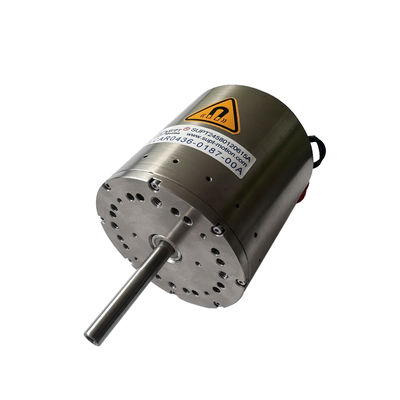

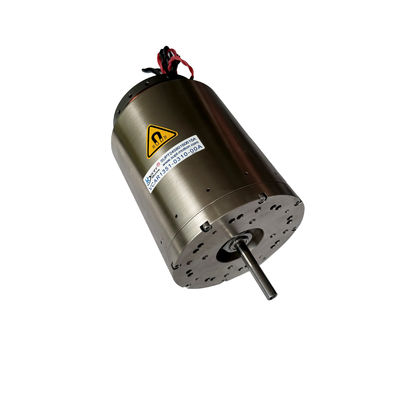

Micro Magnetic Actuator Linear Voice Coil Motor Module For Thin Plate Laser Cutting Machines
| Place of Origin | China,Suzhou |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | VCAH Series |
| Minimum Order Quantity | 2PCS |
| Price | $157 |
| Packaging Details | Customized packaging etc. |
| Delivery Time | 1-5pcs ,5 days . >20pcs ,To be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Model Number | VCAH0040-0240-00A |
|---|---|---|---|
| Total Stroke | 24mm | Current Range | 4.2A |
| Peak Force(N) | 40 | Continuous Force(N) | 6 |
| Product Type | Linear Voice Coil Motor | Protect Feature | Totally Enclosed |
| Commutation | Brushless | Port | Shanghai Linear Shaft Motor |
| Type | Micro Motor | ||
| Highlight | Micro Linear Voice Coil Motor Module,Magnetic Linear Voice Coil Motor Module,Actuator Linear Voice Coil Motor Module |
||
Product Description
Product Description:
Linear voice coil motor module is characterized by high speed, high precision and low friction in thin plate laser cutting machine. Linear voice coil motor module is suitable for driving the X/Y axis of the laser cutting machine due to its low friction, gearless structure and high-precision response, providing very precise and fast movement to ensure accurate positioning of the laser beam.
Linear voice coil motor modules can be used to accurately control the height of the Z-axis, allowing the laser head to adjust its focus according to the thickness of the material, ensuring a uniform and high quality cut.
Compared with the traditional Z-axis adjustment method, the linear voice coil motor can adjust the focus position more quickly and accurately, reducing the reliance on the operator and increasing the degree of automation.
The stability of the machine is also important during the laser cutting process, especially at high speeds where any unwanted vibrations or oscillations may affect the cutting results. The linear voice coil motor, due to its linear motion characteristics, significantly reduces mechanical vibration and improves the stability of the entire machine compared to traditional servo motors and gear drive systems.
Thin plate laser cutting machines require the machine to respond quickly to path changes when cutting complex paths. Linear voice coil motor has a very high dynamic response, can quickly adapt to sudden changes in the cutting path, especially in the cutting of complex shapes, can effectively improve the cutting efficiency and accuracy.
Features:
Axial linear voice coil motors have a built-in motion shaft and precision linear bearings.
The kinematic shaft is made of lightweight, highly rigid and wear-resistant materials.
The actuator coil is lightweight, with short response time and high frequency.
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Stator Diameter (mm) | The Length (mm) |
Shaft end thread (mm) |
| VCAH0253-0120-00A | 253 | 46.5 | 12 | 42.7 | 16 | 53.95 | 109 | M5(Inner) |
| VCAH0011-0070-00A | 11 | 3.6 | 7 | 26.2 | 4.9 | 31.5 | 38.9 | M3(Outer) |
| VCAH0013-0070-00A | 13 | 4.2 | 7 | 26.6 | 5.7 | 29 | 40.5 | M3(Outer) |
| VCAH0030-0100-00A | 30 | 7.2 | 10 | 24.9 | 5.2 | 37 | 47 | M3(Outer) |
| VCAH0040-0075-00A | 40 | 12.3 | 7.5 | 16.8 | 6.9 | 36 | 50 | ∮3 |
| VCAH0040-0240-00A | 40 | 6 | 24 | 44.5 | 8 | 41 | 83 | M3(Inner) |
| VCAH0065-0140-00A | 65 | 24.6 | 14 | 27.6 | 16 | 44 | 75 | M3(Inner) |
| VCAH0230-0110-00A | 230 | 100 | 11 | 34.2 | 37 | 71 | 117 | ∮10 |
Applications:
With nearly 80% market share, the VCAH series of linear voice coil motors produce high forces with large accelerations, peak forces ranging from 0.7N to 3000N, and typical stroke lengths of less than 50mm.Applications for the VCAH series of actuators include valve actuators, Z-axis pickups and placements, small precision volumetric metering pumps, as well as vibrators and active vibration damping systems. Markets include medical semiconductors.
Semiconductor industry: wiring, cutting, drilling, transportation systems, welding, robotics.
