High Speed Linear Actuator Rotary Voice Coil Motors For Mounters
| Place of Origin | China,Suzhou |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | VARS0706-014-00A |
| Minimum Order Quantity | 1PCS |
| Price | $148 |
| Packaging Details | Customized packaging etc. |
| Delivery Time | 1-5pcs ,5 days . >20pcs ,To be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | Mini Electric Motors | Model Number | VARS0706-014-00A |
|---|---|---|---|
| Maximum Travel(mm) | 14 | Continuous Torque | 2.1N-M |
| Max Voltage | 52.4V | Peak Torque(N-m) | 7.1 |
| Material | Aluminum Alloy | Warranty | 3months-1year |
| Protect Feature | Totally Enclosed | Construction | Permanent Magnet |
| Speed(RPM) | High Speed | ||
| Highlight | Mounters Rotary Voice Coil Motor,High Speed Rotary Voice Coil Motor,Linear Actuator Rotary Voice Coil Motor |
||
Product Description
Product Description:
The Rotary Actuators have taken the technology of the rectangular linear actuator and bent therm to provide a high resolution limited angle positioning system.Typical stroke angles exceed 100 degrees and torques to 50 N-mThe Rotary Actuators are typically utilized as mirror position Actuators for laser technologies,rotary valve and damping Actuators, rotary positioning systems and flight control Actuators, Rotary Actuators markets include semiconductor,automotive,industrial and aerospace industries.
Oscillating voice coil motors also play an important role in mounters. Oscillating voice coil motors are mainly used to drive the patch head for precise positioning and movement. Since mounters need to perform precise placement operations at high speeds, the performance of the drive motors is required to be extremely high. Oscillating voice coil motors are ideal for mounters because of their fast response and high precision control.
During the working process of the mounter, the oscillating voice coil motor makes the patch head achieve high-speed and high-precision movement in the direction of X and Y axes by accurately controlling the size and direction of the current. At the same time, through the synergistic work with other control systems, the oscillating voice coil motor can also realise the Z-axis height adjustment and rotary operation of the mounter head, in order to meet the needs of the mapping of different specifications of electronic components.
Features:
Light weight of actuator coil, short response time and high frequency.
Swing angle 1-100 degrees.
Torque 1-50N.m.
Product Parameter:
| Product Model | Peak torque (N-m) |
Continuos torque at 25℃(N-m) |
Total Stroke degrees ( mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil(g) | Length (mm) |
Width (mm) |
Height (mm) |
| VARS0008-026-00A | 0.08 | 0.05 | 26 | 6.4 | 0.05 | 11.7 | 35 | 39.8 | 36.1 |

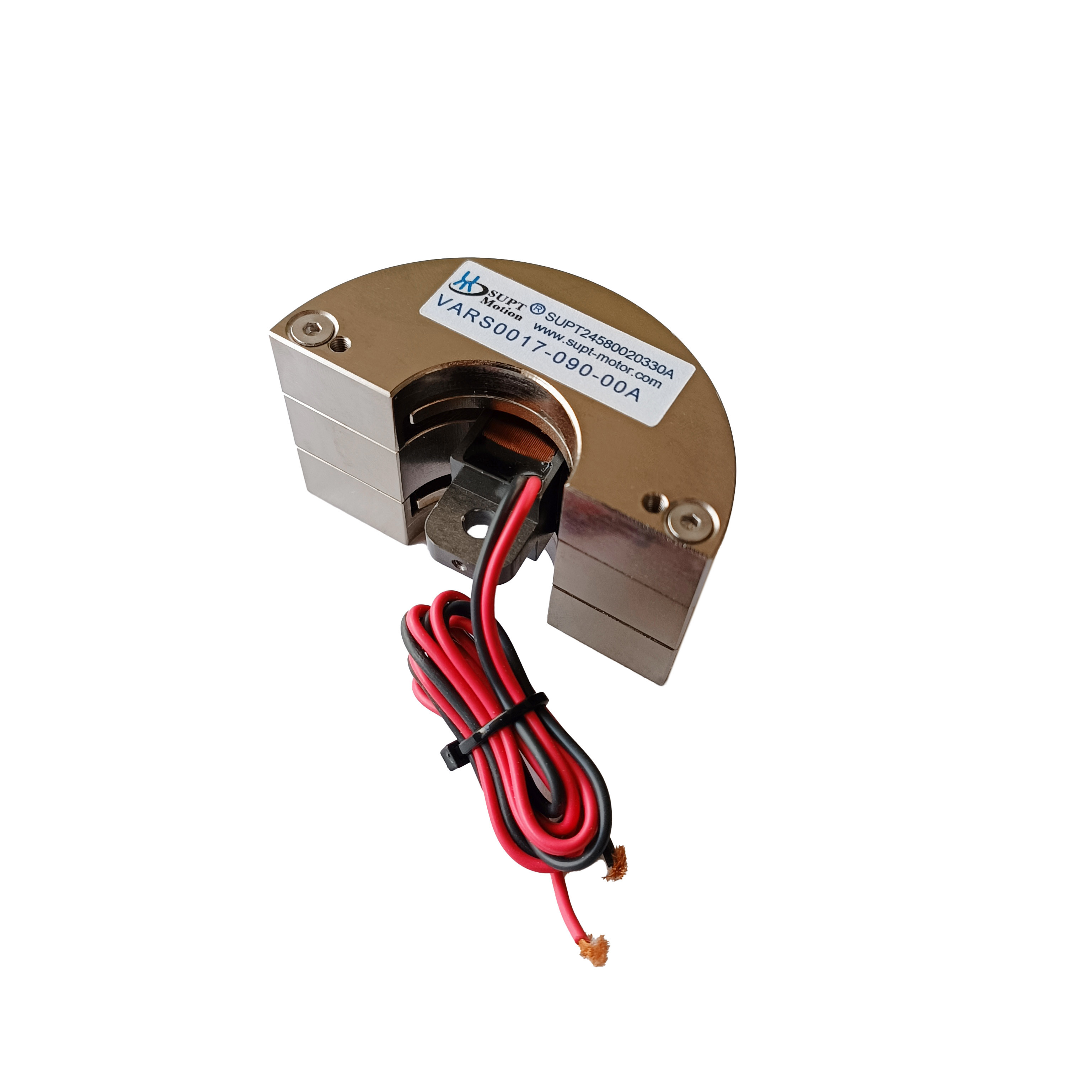

| VARS0017-090-00A | 0.17 | 0.1 | 90 | 11.1 | 0.1 | 17.8 | 70 | 41.5 | 39 |
| VARS0022-032-00A | 0.22 | 0.12 | 32 | 15.5 | 0.16 | 21.5 | 60 | 60 | 36 |
| VARS0042-040-00A | 0.42 | 0.38 | 40 | 3.5 | 0.12 | 38 | 82 | 53.6 | 30.3 |

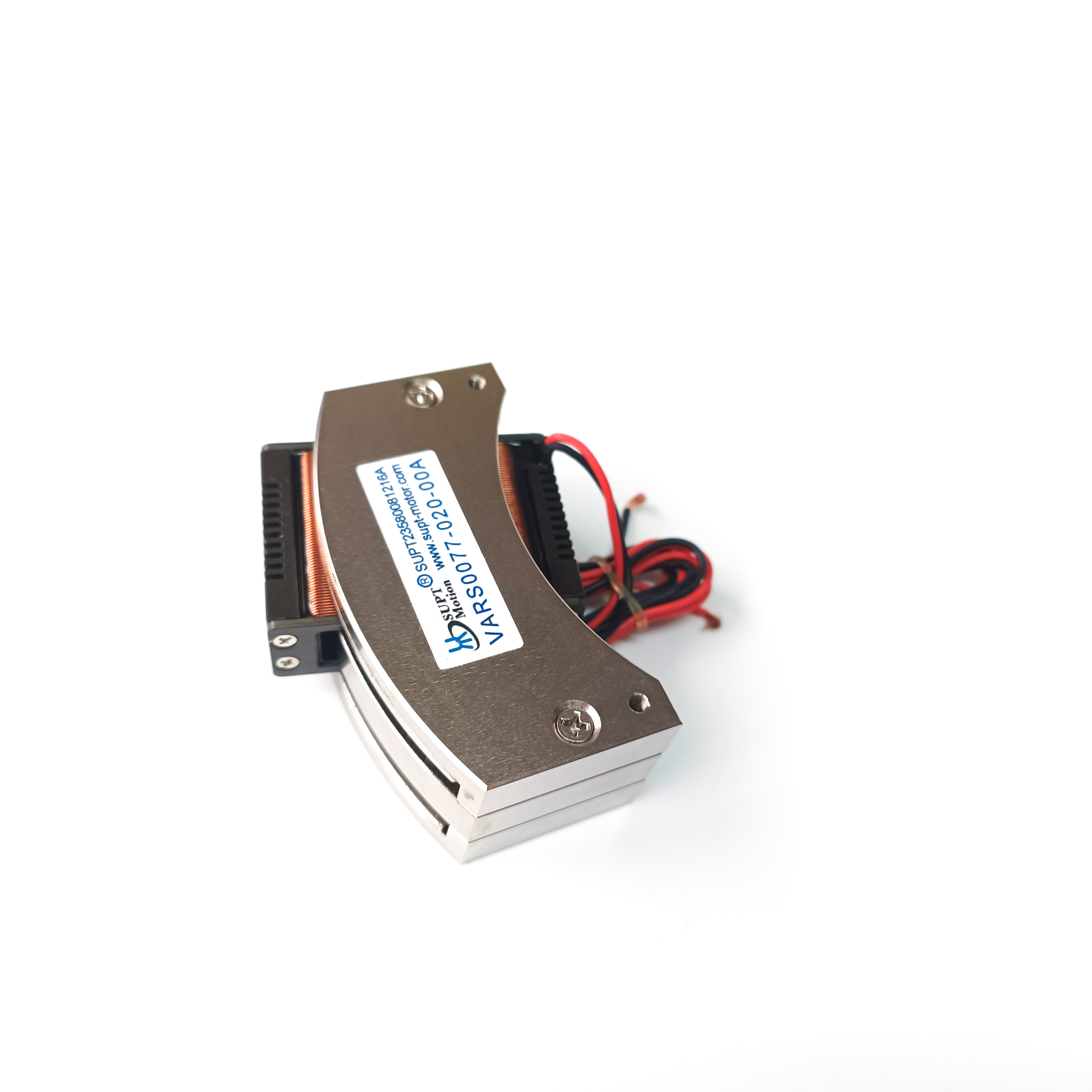

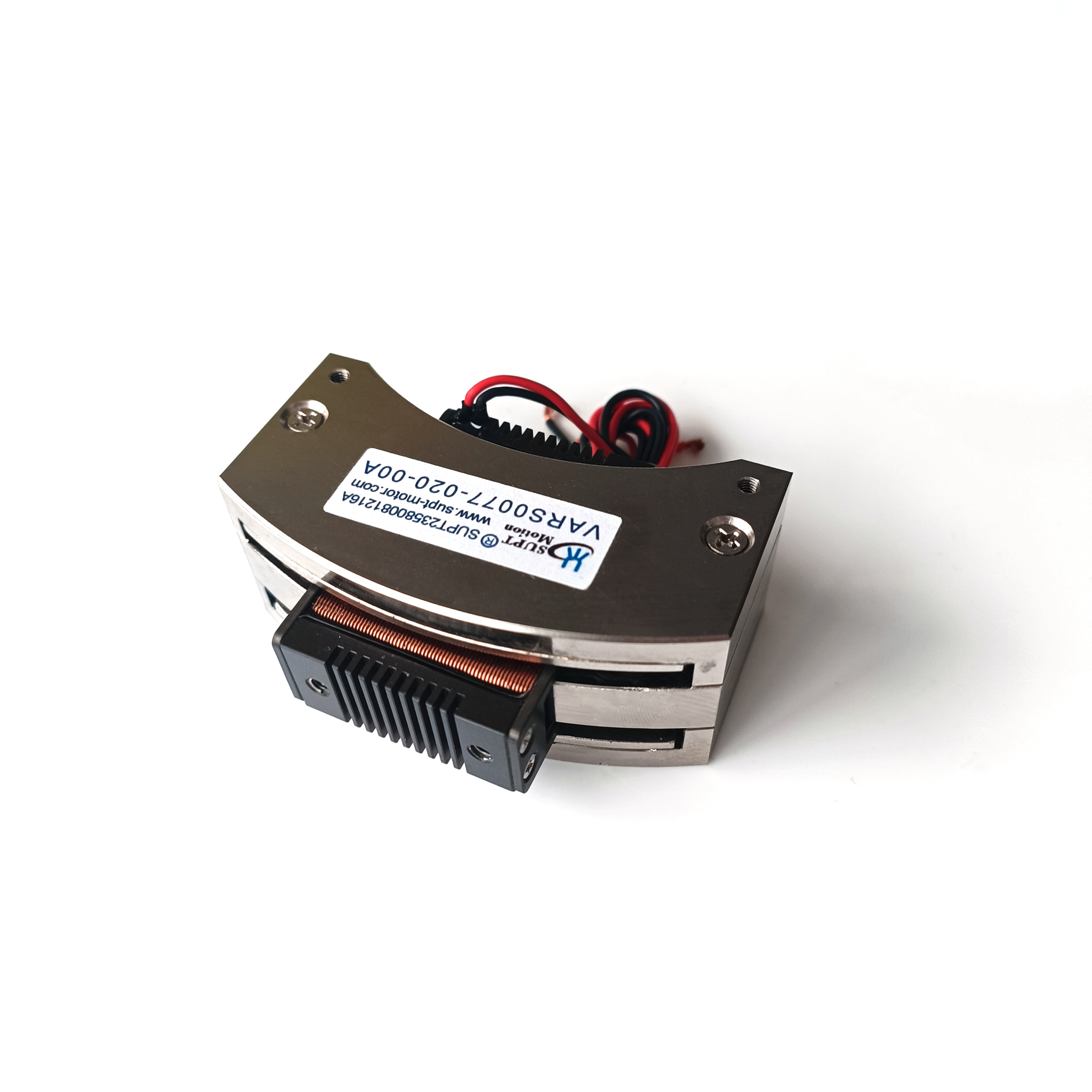

| VARS0077-020-00A | 0.77 | 0.63 | 20 | 6.7 | 0.24 | 66 | 75 | 50 | 30 |
| VARS0084-030-00A | 0.84 | 0.6 | 30 | 6.3 | 0.2 | 50.4 | 75 | 48.9 | 30.6 |
| VARS0120-020-00A | 1.2 | 0.5 | 20 | 8.4 | 0.67 | 65 | 81 | 73.4 | 32 |
| VARS0350-060-00A | 3.5 | 1.14 | 60 | 25.8 | 0.52 | 115 | 115 | 65 | 54.5 |
| VARS0706-014-00A | 7.1 | 2.1 | 14 | 52.4 | 1.03 | 225.5 | 115 | 65 | 54.5 |
| VARS4520-030-00A | 45.2 | 19 | 30 | 71.5 | 4.3 | 1350 | ￠240 | 240 | 78 |
Product Applications:
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
|
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
