Permanent Magnet High Precision For Large Thrust Valves Fully House Voice Coil Actuator
| Place of Origin | China,Suzhou |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | CE, ISO9001 |
| Model Number | VCAH Series |
| Minimum Order Quantity | 3PCS |
| Price | $158 |
| Packaging Details | Customized packaging etc. |
| Delivery Time | General 5-7 days delivery, fast 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | VCAH0030-0100-00A | Peak Force(N) | 30N |
|---|---|---|---|
| Continuous Force | 7.2N | Length | 47mm |
| Voltage | 24.9V | Material | Aluminum Alloy |
| Type | Micro Motor | Weight | 24g |
| Item | Mini Electric Motors | Use | BOAT, Car, Electric Bicycle, UAV, Robot, Medical Respirator, Microscope, Optics |
| Protect Feature | Totally Enclosed | Construction | Permanent Magnet |
| Highlight | Permanent Magnet Voice Coil Actuator,Fully House Voice Coil Actuator,Large Thrust Valves Voice Coil Actuator |
||
Product Description
Product Description:

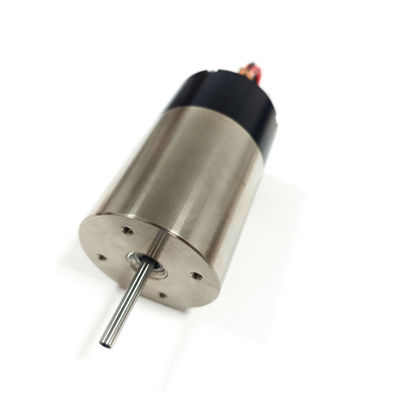

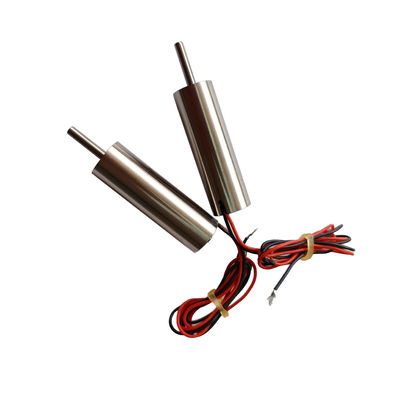

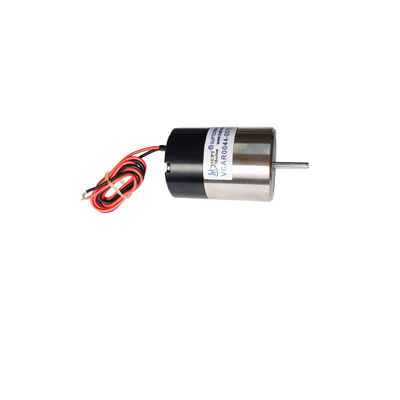

The Fully House Voice Coil Actuator has a built-in motion shaft and precision linear bearings.The kinematic axis is made of lightweight, highly rigid and wear-resistant materials of high quality.The actuator coil is lightweight, with short response time and high frequency.
The VCAH series of Cylindrical Actuators constitute nearly 80% of the market ,they can productce a high force with a high acceleration rates.Peak Forces range for 0.7N to 3000N.Typically ,their stroke length is less than 50mm The VCAH Series Actuators Applications include valve Actuators,Z Axis pick and place,small accurate positive displacement metering pumps and both vibrators and active vibration dampening systems. Markets include Medical semiconductor,Aerospace and Automotive.
This kind of fully house voice coil actuator is especially suitable for short stroke, high control precision, small size, large thrust occasions, so it is widely used in the field of valves. This kind of ball valve consists of voice coil motor and water-hydraulic ball valve body two parts, the motor shaft and the spool assembly in direct contact, so that the spool assembly by the friction, spring force, sealing ring resistance and fluid force and so on directly on the fully house voice coil actuator, become part of the fully house voice coil actuator load.
Features:
Fast response time, high precision, smooth motion
Precise angle control can be realized, flexible movement and relatively small space occupied.
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Stator Diameter (mm) | The Length (mm) |
Shaft end thread (mm) |
| VCAH0253-0120-00A | 253 | 46.5 | 12 | 42.7 | 16 | 53.95 | 109 | M5(Inner) |
| VCAH0011-0070-00A | 11 | 3.6 | 7 | 26.2 | 4.9 | 31.5 | 38.9 | M3(Outer) |
| VCAH0013-0070-00A | 13 | 4.2 | 7 | 26.6 | 5.7 | 29 | 40.5 | M3(Outer) |
| VCAH0030-0100-00A | 30 | 7.2 | 10 | 24.9 | 5.2 | 37 | 47 | M3(Outer) |
| VCAH0040-0075-00A | 40 | 12.3 | 7.5 | 16.8 | 6.9 | 36 | 50 | ∮3 |
| VCAH0040-0240-00A | 40 | 6 | 24 | 44.5 | 8 | 41 | 83 | M3(Inner) |
| VCAH0065-0140-00A | 65 | 24.6 | 14 | 27.6 | 16 | 44 | 75 | M3(Inner) |
| VCAH0230-0110-00A | 230 | 100 | 11 | 34.2 | 37 | 71 | 117 | ∮10 |
Application:
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
|
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
