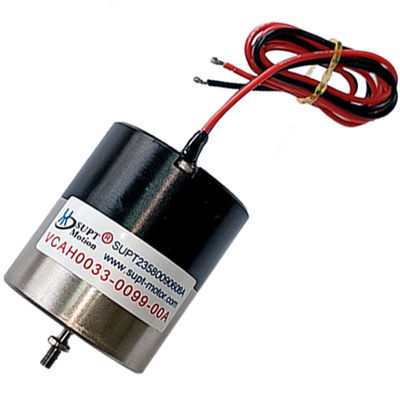

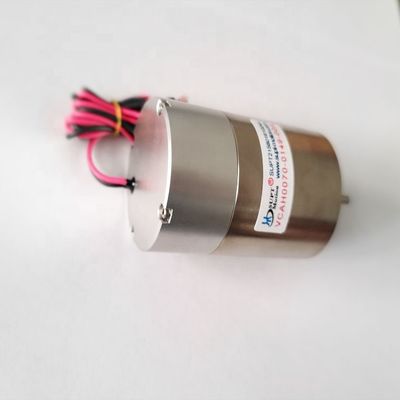

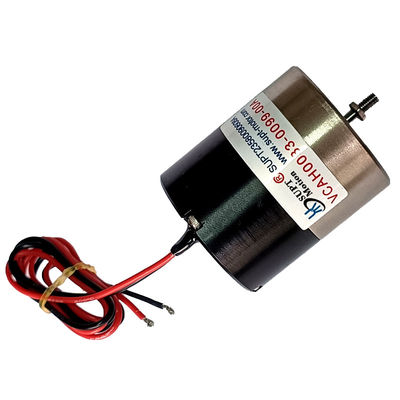

Medical Testing Equipment Fully House Voice Coil Actuator High Frequency Voice Coil Motor
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce, ISO9001 |
| Model Number | VCAH0253-0120-00A |
| Minimum Order Quantity | ≥1 |
| Price | $290.00/pieces 1-49 pieces |
| Packaging Details | Carton packing |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Negotiable |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Usage | BOAT, UAV, 3D Printing, Microscope, Endoscope, Robot,Medical Ventilators | Type | Micro Motor |
|---|---|---|---|
| Torque | Requests | Construction | Permanent Magnet |
| Commutation | Brush | Protect Feature | Totally Enclosed |
| Speed(RPM) | Variable Speed | Continuous Current(A) | 15.8 |
| Efficiency | IE 1 | Peak Force(N) | 253 |
| Maximum Travel(mm) | 12 | Voice Coil Motors(v) | 42.7 |
| Highlight | Medical Testing Equipment Voice Coil Motors,Voice Coil Motors High Frequency 12mm,High Frequency Voice Coil Actuator 12mm |
||
Product Description
Medical Testing Equipment Voice Coil Motors High Frequency Of Movement
Product Description:
The axial voice coil motor has a wide range of applications in medical testing equipment, and its high precision, fast response, and precise control characteristics make it an ideal choice in the medical field. The following are some application examples of axial voice coil motors in medical testing equipment:
1. Magnetic Resonance Imaging (MRI): The axial voice coil motor can be used for motion control in MRI equipment, such as adjusting the position of the patient's bed, motion platform, and image acquisition device. Its precise position control helps to obtain clear and accurate images.
2. Surgical Robot: The axial voice coil motor can be used for the joints and tool components of surgical robots, enabling surgeons to achieve highly accurate surgical operations through the controller.
3. Respiratory Support Equipment: In respiratory support equipment, the axial voice coil motor is used to control the adjustment of airflow and the expansion of the airbag, in order to achieve respiratory support and treatment for patients.
4. Microscope System: In high-resolution microscopes, the axial voice coil motor is used to adjust the focal length and position of the lens to obtain clear microscopic images.
Technical Parameters:
VCAH Series of linear type voice coil motor:| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Stator Diameter (mm) | The Length (mm) |
Shaft end thread (mm) |
| VCAH0253-0120-00A | 253 | 46.5 | 12 | 42.7 | 16 | 53.95 | 109 | M5(Inner) |
| VCAH0011-0070-00A | 11 | 3.6 | 7 | 26.2 | 4.9 | 31.5 | 38.9 | M3(Outer) |
| VCAH0013-0070-00A | 13 | 4.2 | 7 | 26.6 | 5.7 | 29 | 40.5 | M3(Outer) |
| VCAH0030-0100-00A | 30 | 7.2 | 10 | 24.9 | 5.2 | 37 | 47 | M3(Outer) |
| VCAH0040-0075-00A | 40 | 12.3 | 7.5 | 16.8 | 6.9 | 36 | 50 | ∮3 |
| VCAH0040-0240-00A | 40 | 6 | 24 | 44.5 | 8 | 41 | 83 | M3(Inner) |
| VCAH0065-0140-00A | 65 | 24.6 | 14 | 27.6 | 16 | 44 | 75 | M3(Inner) |
| VCAH0230-0110-00A | 230 | 100 | 11 | 34.2 | 37 | 71 | 117 | ∮10 |
Applications:
Linear voice coil motor with built-in motion shaft and precision linear bearing. The movable shaft is made of high quality material with light weight, high rigidity and wear resistance. It is widely used in semiconductor, precision testing, valve flow control and other fields. The VCAH series actuator can be easily adapted to package/seal assemblies with bushings or bearings. Output voice coil motors provide superior performance and are completely enclosed to achieve low noise levels and long life. This voice coil actuator provides a reliable solution for a variety of applications, it is strongly recommended for the application of miniature output shaft motors. Minimum order quantity ≥1 piece, price $290.00 per piece 1-49 pieces. Packing cartons packaging, delivery time for 1-5 products 5-7 days shipment, sample 3-5 days shipment, batch negotiation. Payment is T/T, SUPT is capable of meeting any order needs and can provide interviews if necessary. Full built-in voice coil actuators are a reliable and good solution for applications requiring precise motion control. It is designed to provide maximum performance and long-term reliability. This kind of actuator is an ideal choice for applications requiring high precision motion control.
