Micro Permanent Magnet Motor Linear Built-In Shaft Voice Coil Motor For The Semiconductor Industry
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001,CCC |
| Model Number | VCAH0070-0149-00A |
| Minimum Order Quantity | 2 pieces |
| Price | $180.00/pieces >=2 pieces |
| Packaging Details | carton & wooden box voice coil motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 2000 Piece/Pieces per Month voice coil motor |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, UAV, Robot, Medical Ventilator, Microscope, Endoscope, Optics |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | High Speed |
| Continuous Current(A) | 4A | Efficiency | IE 1 |
| Peak Force(N) | 70 | Maximum Travel(mm) | 14.9 |
| Voice Coil Motor(V) | 26.9 | Weight Rotor(kg) | 79 |
| Stator Dia(mm) | 43 | Continuous Force(N) | 27.3 |
| Port | Shanghai Voice Coil Motor | ||
| Highlight | Micro Permanent Magnet Motor VCM,VCM Vertical Voice Coil Motor,Voice Coil Motor For Small Diaphragm Pump |
||
Product Description
Micro-Magnetic Vertical Direction Voice Coil Motor For Small Diaphragm Pump
Product Description

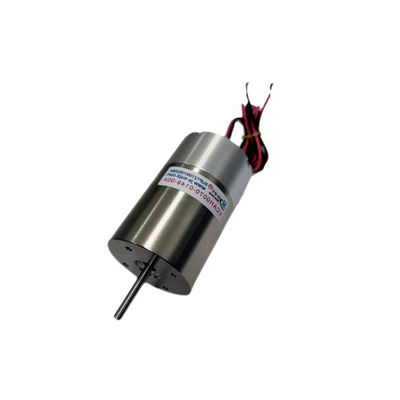

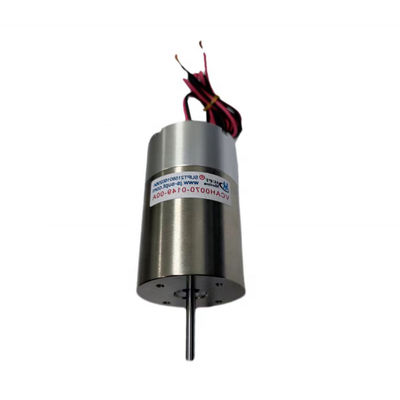

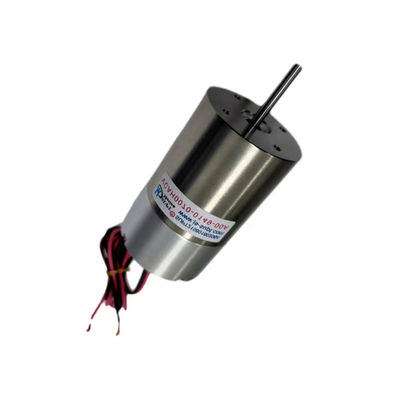

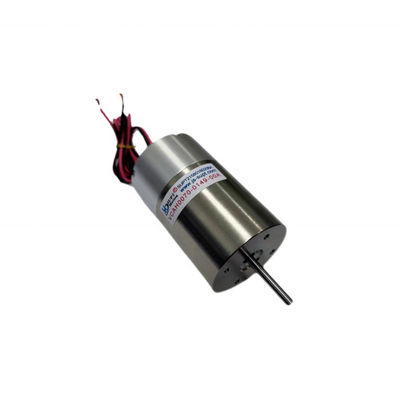

The model is VCAH0070-0149-00A voice coil motor with built-in motion shaft and precision linear bearing. The movable shaft is made of high quality material with light weight, high rigidity and wear resistance. It is characterized by light weight, small volume, short response time, high frequency, high precision, high acceleration, long life, etc. . Presents a fully enclosed shaft voice coil motor with a fully protected, export-type voice coil motor that provides superior performance and is completely enclosed at a low noise level. Made of aluminum alloy wear-free, full house voice coil actuator to provide superior durability and life.
Linear built-in shaft Voice Coil Motor (VCM) has a wide range of applications in the semiconductor industry, mainly in the following areas:
Lithography Systems:
Lithography is a key piece of equipment in the semiconductor manufacturing process, used to transfer circuit patterns onto silicon wafers. The lithography process requires extreme precision and fast response. Linear built-in shaft voice coil motors are ideally suited for use in alignment and scanning systems for lithography machines due to their high acceleration, precise position control and wear-free motion.
Wafer Handling:
During wafer handling, wafers need to be moved precisely and quickly. Voice coil motors provide frictionless linear motion to ensure highly accurate positioning of wafers during handling. This is critical for transferring, positioning and loading wafers to improve productivity and yield.
Probe Stations:
Probe Stations are used to accurately place probes at specific locations on a wafer to test its electrical characteristics during semiconductor testing. The high accuracy and responsiveness of voice coil motors make them ideally suited to the tiny movements and precise positioning needs of probe stations.
Packaging Equipment:
In the semiconductor packaging process, chips need to be precisely mounted and connected. Voice coil motors can play a key role in the precise control and fast response of the mounting head, thus increasing the speed and accuracy of the packaging process.
Auto-alignment Systems:
The alignment process in semiconductor manufacturing requires a high degree of precision to ensure that the circuit patterns of each layer are correctly stacked. The high-precision positioning characteristics of voice coil motors make them ideal for use in auto-alignment systems, enabling nanometer-level alignment accuracy.
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Stator Diameter (mm) | The Length (mm) |
Shaft end thread (mm) |
| VCAH0253-0120-00A | 253 | 46.5 | 12 | 42.7 | 16 | 53.95 | 109 | M5(Inner) |
| VCAH0011-0070-00A | 11 | 3.6 | 7 | 26.2 | 4.9 | 31.5 | 38.9 | M3(Outer) |
| VCAH0013-0070-00A | 13 | 4.2 | 7 | 26.6 | 5.7 | 29 | 40.5 | M3(Outer) |
| VCAH0030-0100-00A | 30 | 7.2 | 10 | 24.9 | 5.2 | 37 | 47 | M3(Outer) |
| VCAH0040-0075-00A | 40 | 12.3 | 7.5 | 16.8 | 6.9 | 36 | 50 | ∮3 |
| VCAH0040-0240-00A | 40 | 6 | 24 | 44.5 | 8 | 41 | 83 | M3(Inner) |
| VCAH0065-0140-00A | 65 | 24.6 | 14 | 27.6 | 16 | 44 | 75 | M3(Inner) |
| VCAH0230-0110-00A | 230 | 100 | 11 | 34.2 | 37 | 71 | 117 | ∮10 |
Applications:
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
|
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
Our Services
Technical indicators & specifications can be customized
Satisfactory after-sales service
Packaging & Shipping
Company Information
Certifications
FAQ
1.Travel: effective travel, used to calculate the the total travel of value force.
2.The direction of movement: horizontal or vertical installation 90 degree.
3.Load force: constant in the reverse direction of force on the motor, such as springs, etc.
4.Load weight: the total quality part of movement, including the quality slider
5.Movement Type: 1.point to point movement; 2.the reciprocation of the rule (e.g. scanning).
6.Velocity curve: 1.a trapezoidal speed curve; 2.triangular speed curve; 3.sine speed curve.
