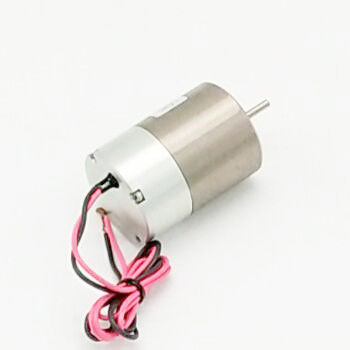

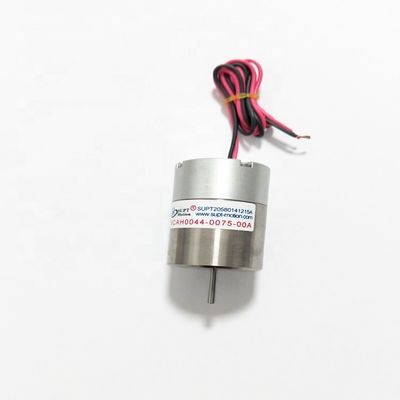

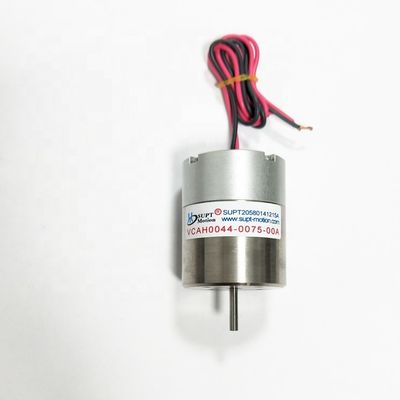

Low Noise Fully House Voice Coil Actuator 14mm Stroke Length Voice Coil Actuator
| Place of Origin | China Suzhou |
|---|---|
| Brand Name | SUPT |
| Certification | ISO9001 |
| Model Number | VCAH/VCRH Series |
| Minimum Order Quantity | ≥3 |
| Price | $135 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | General 5-7 days delivery, fast 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Speed | 100HZ(RPM) | Type | Micro Output Shaft Motor |
|---|---|---|---|
| Weight | Light | Connector | Molex |
| Stroke Length | 14mm | Voltage | 27.6V |
| Resolution | Hight | Product Model | VCAH0065-0140-00A |
| Peak Force | 65N | ||
| Highlight | 100HZ Fully House Voice Coil Actuator,Fully House Voice Coil Actuator IP54,IP54 Fully Protected Voice Coil Actuator |
||
Product Description
High-Accuracy Light Weight Lead Wire Fully-Protected Voice Coil Actuator
Product Description:
The Fully-Housed Voice Coil Actuator is a micro output shaft motor designed to deliver accurate and precise positional control with low noise levels. It is a completely-housed and fully-protected voice coil actuator, providing superior protection against dust and other kinds of external damage. The positioning accuracy of this device is ±0.1mm and the Low noise, making it ideal for applications that require low-noise operation. This actuator is powered by a 27.6V voltage source and can be used in a variety of applications. The Fully-Housed Voice Coil Actuator is an excellent choice for any application that requires a reliable and accurate actuator.
Features:
- Product Name: Fully-Housed Voice Coil Actuator
- Voltage: 27.6V
- Resolution: High
- Type: Micro Output Shaft Motor
- Material: Aluminum Alloy
- Fully-Enclosed Voice Coil Actuator
- Fully-Protected Voice Coil Actuator
Technical Parameters:
| Product Name | Totally-Housed Voice Coil Actuator, Outlet Type Voice Coil Motor, Fully-Protected Voice Coil Actuator |
|---|---|
| Weight | Light |
| Rated Speed | 100HZ(RPM) |
| Stroke Length | 14mm |
| Connector | Molex |
| Type | Micro Output Shaft Motor |
| Voltage | 27.6V |
| Noise Level | Low |
| Material | Aluminum Alloy |
| Resolution | Hight |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Stator Diameter (mm) | The Length (mm) |
Shaft end thread (mm) |
| VCAH0253-0120-00A | 253 | 46.5 | 12 | 42.7 | 16 | 53.95 | 109 | M5(Inner) |
| VCAH0011-0070-00A | 11 | 3.6 | 7 | 26.2 | 4.9 | 31.5 | 38.9 | M3(Outer) |
| VCAH0013-0070-00A | 13 | 4.2 | 7 | 26.6 | 5.7 | 29 | 40.5 | M3(Outer) |
| VCAH0030-0100-00A | 30 | 7.2 | 10 | 24.9 | 5.2 | 37 | 47 | M3(Outer) |
| VCAH0040-0075-00A | 40 | 12.3 | 7.5 | 16.8 | 6.9 | 36 | 50 | ∮3 |
| VCAH0040-0240-00A | 40 | 6 | 24 | 44.5 | 8 | 41 | 83 | M3(Inner) |
| VCAH0065-0140-00A | 65 | 24.6 | 14 | 27.6 | 16 | 44 | 75 | M3(Inner) |
| VCAH0230-0110-00A | 230 | 100 | 11 | 34.2 | 37 | 71 | 117 | ∮10 |
Applications:
Fully-Housed Voice Coil Actuator from SUPT
The SUPT VCAH/VCRH Series Fully-Housed Voice Coil Actuator is a top-of-the-line micro output shaft motor. It is designed to provide precise and reliable motion control. This device is certified to ISO9001 standards, has a minimum order quantity of 3, and is priced at $135 per unit. Packaging is available in carton packaging, and the estimated delivery time is from general 5-7 days delivery, fast 3-5 days, bulk to be negotiated.
Payment terms are available in T/T, and the company is capable of supplying up to the interview. For more details on the SUPT VCAH/VCRH Series Fully-Housed Voice Coil Actuator, please contact the manufacturer directly to receive a detailed product description and your personalized quotation.
It is widely used in semiconductor, precision test and detection, valve flow control field.
