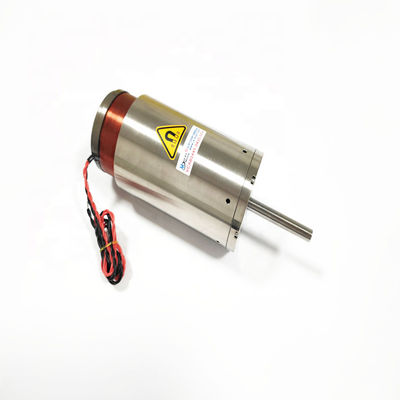

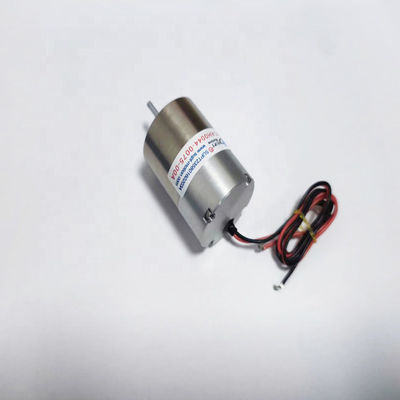

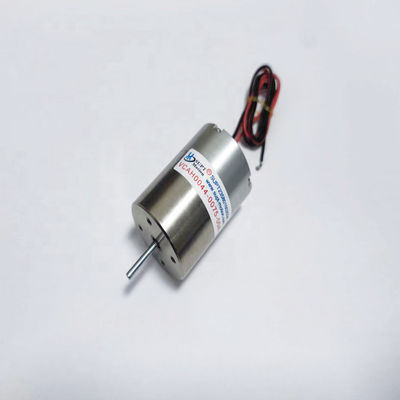

High Frequency Response Voice Coil Actuator VCM Voice Coil Motor For Valve Control
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001,CCC |
| Model Number | VCAR0044-0075-00A |
| Minimum Order Quantity | ≥1 |
| Price | $160.00/pieces >=1 pieces |
| Packaging Details | carton & wooden box voice coil motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 1000 Piece/Pieces per Month voice coil motor |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, UAV, Robot, Medical Respirator, Microscope, Optics |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | High Speed |
| Continuous Current(A) | 5.8A | Efficiency | IE 1 |
| Peak Force(N) | 44 | Maximum Travel(mm) | 7.5 |
| Voice Coil Motor(V) | 16.8 | Weight Rotor(kg) | 38.6 |
| Stator Dia(mm) | 31.1 | Continuous Force(N) | 13.7 |
| Port | Shanghai Voice Coil Motor | ||
| Highlight | High Frequency Response Voice Coil Actuator,Voice Coil Actuator VCM Valve Control,VCM Voice Coil Motor For Valve Control |
||
Product Description
High Frequency Response Voice Coil Motor Without Cogging Effect For Valve Control
Product Description
The High Frequency Response Voice Coil Motor Without Cogging Effect for Valve Control refers to an innovative motor designed to enable precise and rapid control of valves, particularly in scenarios requiring high-frequency adjustments. This motor's unique attributes address challenges associated with traditional motors, enhancing valve control performance.
The concept of a voice coil motor without cogging effect is pivotal. Cogging effect, also known as detent or notchiness, refers to a phenomenon where traditional motors experience resistance or jerky motion due to magnetic interactions within the motor. By eliminating this effect, the motor ensures smooth and consistent motion control, allowing valves to be positioned precisely and without interruptions, even during high-frequency operations.
The motor's application in valve control highlights its relevance in industrial processes where fluid or gas flow regulation is paramount. In fields like manufacturing, HVAC systems, and automation, accurate valve control directly impacts product quality, energy efficiency, and process optimization. This motor's unique design contributes to enhanced performance by reducing response time and minimizing undesirable motion artifacts.
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Stator Diameter (mm) | The Length (mm) |
Shaft end thread (mm) |
| VCAH0253-0120-00A | 253 | 46.5 | 12 | 42.7 | 16 | 53.95 | 109 | M5(Inner) |
| VCAH0011-0070-00A | 11 | 3.6 | 7 | 26.2 | 4.9 | 31.5 | 38.9 | M3(Outer) |
| VCAH0013-0070-00A | 13 | 4.2 | 7 | 26.6 | 5.7 | 29 | 40.5 | M3(Outer) |
| VCAH0030-0100-00A | 30 | 7.2 | 10 | 24.9 | 5.2 | 37 | 47 | M3(Outer) |
| VCAH0040-0075-00A | 40 | 12.3 | 7.5 | 16.8 | 6.9 | 36 | 50 | ∮3 |
| VCAH0040-0240-00A | 40 | 6 | 24 | 44.5 | 8 | 41 | 83 | M3(Inner) |
| VCAH0065-0140-00A | 65 | 24.6 | 14 | 27.6 | 16 | 44 | 75 | M3(Inner) |
| VCAH0230-0110-00A | 230 | 100 | 11 | 34.2 | 37 | 71 | 117 | ∮10 |
Applications:
Out-of-shaft voice coil motor built-in motion shaft and precision linear bearing, is a small size, high performance, lightweight voice coil motor. The VCAR0044-0075-00A is CE, ISO9001, CCC certified. All built-in voice coil drivers are the perfect solution for accuracy and precision applications. Voice coil motor with built-in motion shaft and precision linear bearing. The sports shaft is made of light weight, high rigidity and wear-resistant material. It has the characteristics of light weight, high frequency response, high speed, high acceleration and high precision. It is widely used in the field of flow control of semiconductor precision test valve, also widely used in semiconductor, precision testing and detection, valve flow control fields, yachts, automobiles, electric bicycles, uavs, robots, medical respirators, microscopes, optical systems. This completely built-in voice coil drive is ideal for applications.
Our Services
Technical indicators & specifications can be customized
Satisfactory after-sales service
Company Information
FAQ
1.Travel: effective travel, used to calculate the the total travel of value force.
2.The direction of movement: horizontal or vertical installation 90 degree.
3.Load force: constant in the reverse direction of force on the motor, such as springs, etc.
4.Load weight: the total quality part of movement, including the quality slider
5.Movement Type: 1.point to point movement; 2.the reciprocation of the rule (e.g. scanning).
6.Velocity curve: 1.a trapezoidal speed curve; 2.triangular speed curve; 3.sine speed curve.
