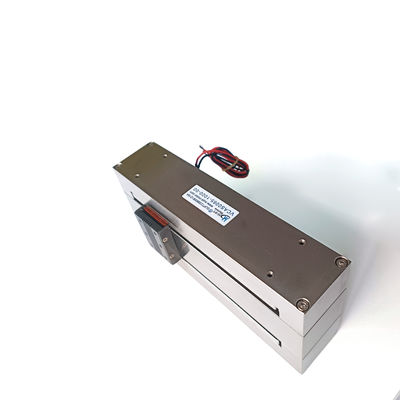

X Y Axis Motion Platform With Linear Motor Actuator For Precision Machining
| Place of Origin | china,Suzhou |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | VCAS Series |
| Minimum Order Quantity | 1PCS |
| Price | $148 |
| Packaging Details | Carton Packaging etc. |
| Delivery Time | 1-5pcs ,5 days . >20pcs ,To be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Model Number | VCAS0002-0747-00A |
|---|---|---|---|
| Peak Force(N) | 2.1N | Max Voltage | 11.3V |
| Continuous Force | 1.3N | Maximum Travel | 74.7mm |
| Construction | Permanent Magnet | Protect Feature | Totally Enclosed |
| Rated Speed | 500rpm | Use | BOAT, Car, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical Project |
| Product Name | Linear Voice Coil Motor | ||
| Highlight | Precision Machining Linear Motor Actuator,Linear Motor Actuator For Precision Machining,X Y Axis Linear Motor Actuator |
||
Product Description
Product Description:

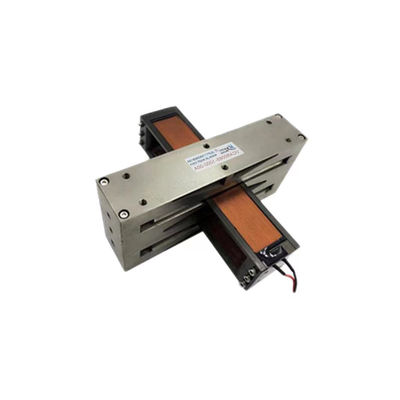

The VCAS series Rectangular Actuators have a lower force per weight than the Cylindrical Actuators.But they also have a much longer strokes Forces range up to 1000N and 250mm.The VCAS series Rectangular Actuator are the ideal solution for X-Y Axis movements and their major market is in the semiconductor and micro machine tool industries.
The application of linear rectangular motors in the micro-machine tool industry focuses on improving the machining accuracy and stability of the equipment.
Linear voice coil motors are widely used in precision machine control fields, such as machine tools and robots, to improve the machining accuracy and stability of equipment due to their advantages of high sensitivity, fast response and contactless measurement. Rectangular motors are particularly useful in the micro-machine tool industry, where they can provide high-accuracy linear or rotary motion, which is essential for achieving precision machining of tiny parts. With the precise control of linear motors, micro-machines are able to realize more detailed and accurate cutting and engraving, thus improving product quality and productivity.
Features:
The actuator coil is lightweight, with short response time and high frequency.
Long stroke, effective stroke 1mm-200mm.
High thrust, peak thrust 1N-800N.
Commonly used for making x-y axis motion platform.
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAS0002-0498-00A | 2.1 | 1.3 | 50 | 11.3 | 1.3 | 15 | 72 | 42.6 | 33 |
| VCAS0002-0747-00A | 2.1 | 1.3 | 74.7 | 11.3 | 1.3 | 15 | 100.5 | 42.6 | 37 |
| VCAS0006-0030-00A | 6.1 | 3.2 | 3 | 13.3 | 4.6 | 18.2 | 25.1 | 34.1 | 27 |
| VCAS0006-0099-00A | 6.1 | 3.2 | 10 | 13.7 | 4.6 | 18.2 | 33.5 | 34.1 | 26.9 |

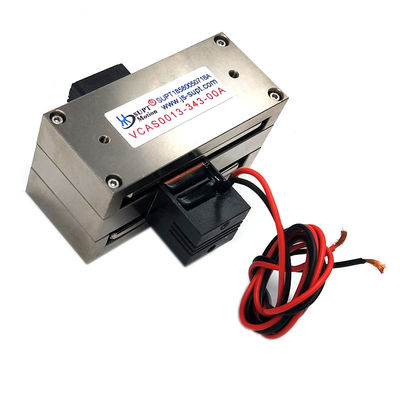

| VCAS0013-0343-00A | 13 | 8 | 34.3 | 12.6 | 5.8 | 40 | 68.3 | 60 | 34.8 |
| VCAS0065-1000-00A | 65 | 22.4 | 100 | 28.7 | 9.7 | 135 | 170 | 59.6 | 81.9 |
applications:
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding, robotics. |
| 2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment, dispenser, test equipment, textile machinery. |
