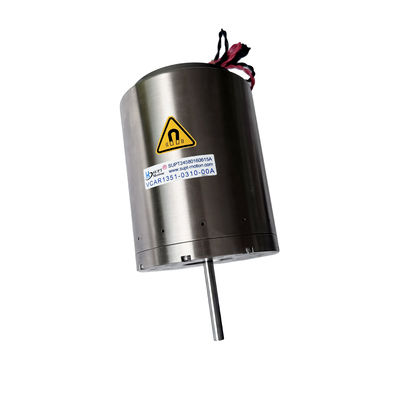

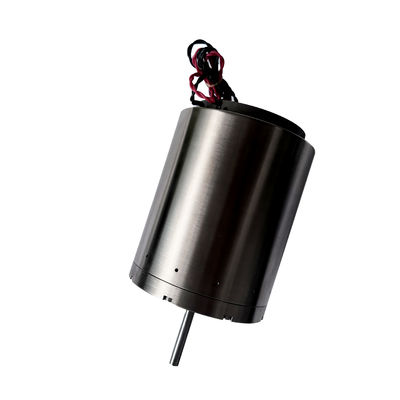

High Acceleration And High Precision Linear Voice Coil Motors For Wire Bonding Machines
| Place of Origin | china,Suzhou |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | VCAB0033-0224-00A |
| Minimum Order Quantity | 1PCS |
| Price | $149 |
| Packaging Details | Carton sealed packing etc. |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Peak Force | 33N |
|---|---|---|---|
| Actuation Method | Voice Coil | Product Model | VCAB0033-0224-00A |
| Usage | Measurement, Laser Welding, Laser Cutting, Gluing Machine, Spraying Machine, Punching Machine, Dispensing Machine, Small CNC Machine Tools. | Performance | High Performance |
| Voltage Range | 26.7V | Commutation | Brush |
| Total Stroke | 22.4mm | Weight | 69g |
| Highlight | High Acceleration Linear Voice Coil Motors,High Precision Linear Voice Coil Motors,Wire Bonding Machines Voice Coil Motors |
||
Product Description
Product Description:
Linear voice coil motors are widely used in semiconductor crystal solidification machines and wire bonding machines. For the wire welding process customized development of voice coil motor and linear motor direct drive system, motion control algorithms and drive technology after more than ten years of iterative upgrading, can easily and stably control high-speed, high-precision bang head movement, U-Tech voice coil motor has a high-frequency response, high-precision, high-speed, high-acceleration, simple structure, small size, good force characteristics, easy to control and other advantages. It is suitable for short stroke closed-loop servo applications. Due to its small size, it is especially suitable for use in some narrow space. It has fast response speed and small weight, so it can reach high acceleration and can do high-speed oscillation reciprocating motion.
Linear voice coil motor in the application of wire welding machine is mainly reflected in the improvement of production efficiency and reduce the dependence on the import of foreign complete sets of equipment. Wire bonding machine is a widely used in backlighting and IC packages and arrays and other semiconductor lead welding automation equipment.
Features:
Linear voice coil motors have a built-in motion axis and precision linear bearings.
The kinematic axis is made of lightweight, high rigidity, wear-resistant and high quality materials.
The actuator coil is lightweight, with short response time and high frequency.
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |

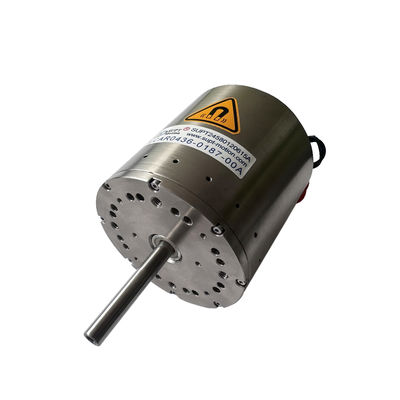

| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Application:
Linear voice coil motor has been widely used in measuring, laser welding, laser cutting, gluing machine, spraying machine, punching machine, dispensing machine, small CNC machine tools.
Widely used in semiconductor, precision testing and inspection, valve flow control.
Modular design, can be customized.
