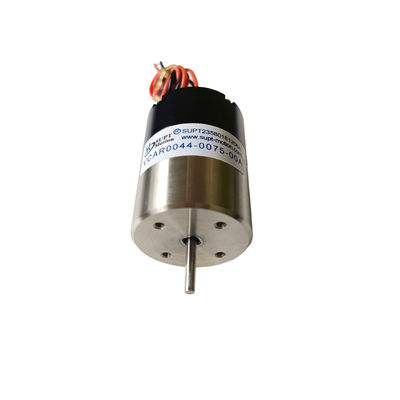

Totally Enclosed Voice Coil Motor Linear Actuators For Semiconductor Equipment
| Place of Origin | china,Suzhou |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | CE, ISO9001 |
| Model Number | VCAH0013-0070-00A |
| Minimum Order Quantity | 1PCS |
| Price | $155 |
| Packaging Details | Customized packaging etc. |
| Delivery Time | 1-5pcs ,5 days . >20pcs ,To be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Continuous Force | 4.2N | Max Voltage | 26.6V |
|---|---|---|---|
| Warranty | 3months-1year | Weight | 16g |
| Protect Feature | Totally Enclosed | Size | 40.5mm |
| Peak Force(N) | 13N | Use | BOAT, Car, Electric Bicycle, UAV, Robot, Medical Respirator, Microscope, Optics |
| Continuous Current(A) | 5.8A | Commutation | Brush |
| Highlight | Semiconductor Equipment Linear Actuators,Enclosed Voice Coil Motor Linear Actuators,Semiconductor Voice Coil Motor Linear Actuators |
||
Product Description
Product Description:
Totally enclosed voice coil motors have a built-in motion shaft and precision linear bearings. Its motion shaft is made of lightweight, high rigidity and wear-resistant high quality materials.
The voice coil motors are widely used in semiconductor solid crystal and wire bonding machines. The voice coil motor and linear motor direct drive system customized and developed for wire bonding process, the motion control algorithm and drive technology have been selectively upgraded for more than ten years, which can easily and stably control high-speed and high-precision bumping head motion, U-Tech voice coil motor has the advantages of high-frequency response, high-precision, high-speed, high-acceleration, simple structure, small size, good force characteristics, easy to control, and so on. It is suitable for short stroke closed loop coaxial applications. Due to its small size, it is especially suitable for use in some narrow spaces. It has fast response speed and small weight, so it can reach high acceleration and do high-speed oscillating reciprocating motion.
SUPT MOTION is a high-tech enterprise specializing in the design, manufacture and sales of voice coil motors, linear motors and precision linear motion stages. The company produces high-quality, high-performance voice coil motors, linear motors, precision linear motion stages. Our products are exported to domestic market and radiate to Europe, North America, South Asia, Southeast Asia and other regions.
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Stator Diameter (mm) | The Length (mm) |
Shaft end thread (mm) |
| VCAH0253-0120-00A | 253 | 46.5 | 12 | 42.7 | 16 | 53.95 | 109 | M5(Inner) |
| VCAH0011-0070-00A | 11 | 3.6 | 7 | 26.2 | 4.9 | 31.5 | 38.9 | M3(Outer) |
| VCAH0013-0070-00A | 13 | 4.2 | 7 | 26.6 | 5.7 | 29 | 40.5 | M3(Outer) |
| VCAH0030-0100-00A | 30 | 7.2 | 10 | 24.9 | 5.2 | 37 | 47 | M3(Outer) |
| VCAH0040-0075-00A | 40 | 12.3 | 7.5 | 16.8 | 6.9 | 36 | 50 | ∮3 |
| VCAH0040-0240-00A | 40 | 6 | 24 | 44.5 | 8 | 41 | 83 | M3(Inner) |
| VCAH0065-0140-00A | 65 | 24.6 | 14 | 27.6 | 16 | 44 | 75 | M3(Inner) |
| VCAH0230-0110-00A | 230 | 100 | 11 | 34.2 | 37 | 71 | 117 | ∮10 |
Applications:
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
|
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
