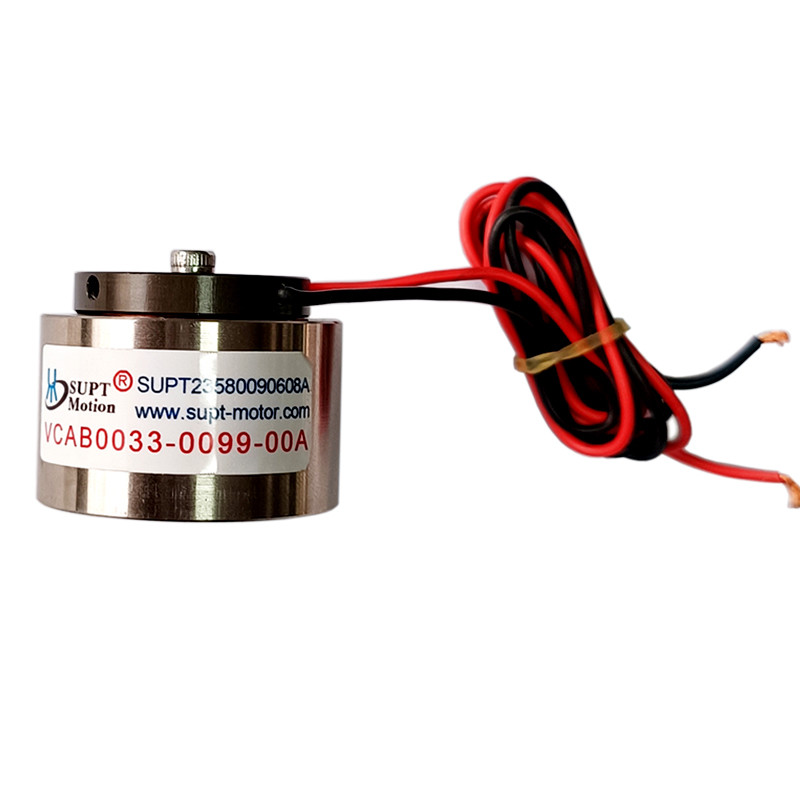

High Load Capacity Linear Voice Coil Motor For High Precision Control
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | VCAB0033-0099-00A |
| Minimum Order Quantity | ≥1 |
| Price | $119~$169 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Power | 2500N | Noise Level | Low |
|---|---|---|---|
| Repeatability | High | Linearity | High |
| Resolution | High | Stroke Length | 9.9mm |
| Voltage Range | 24.3V | Product Type | Linear Voice Coil Motor With Shaft |
| Highlight | High Precision Linear Voice Coil Motor,High Precision Voice Coil Motor,High Load linear voice coil motor |
||
Product Description
Product Description:

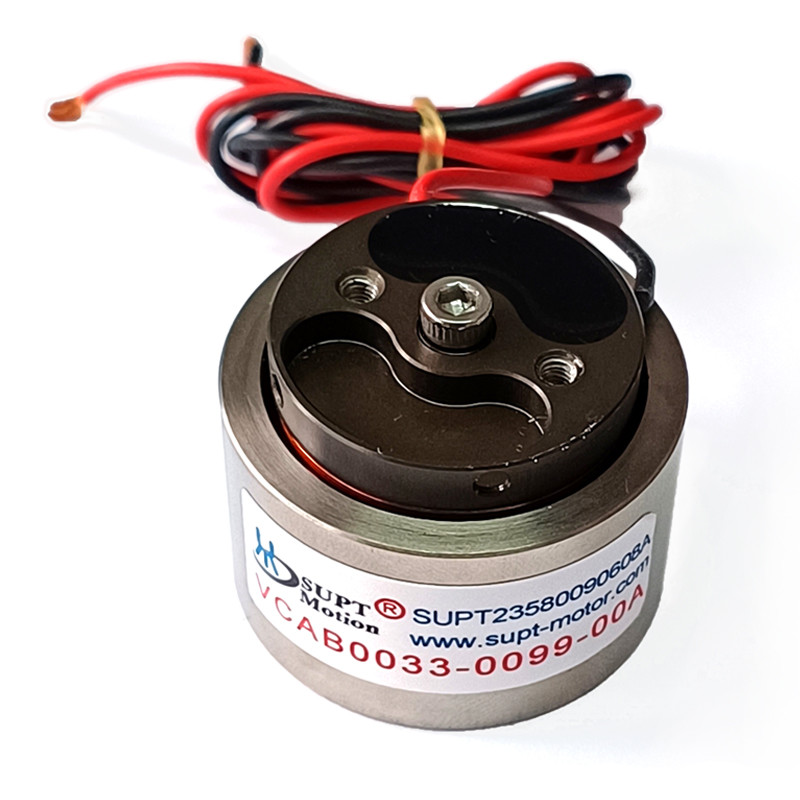

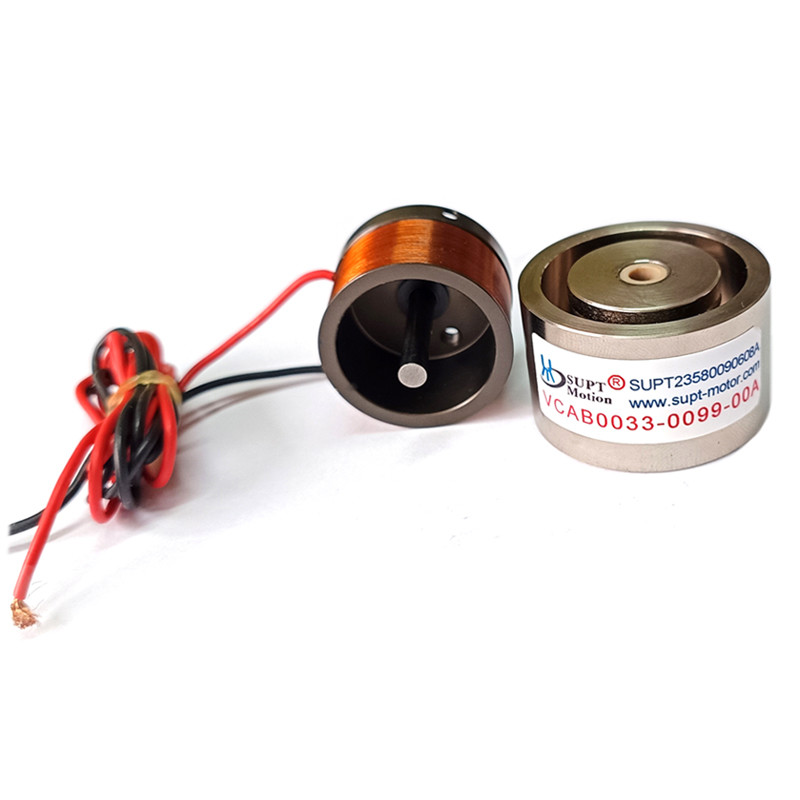

Built in motion shaft and precision linear bearing. The moving shaft is made of light, high rigidity and wear-resistant.
The Linear Voice Coil Motor is ideal for applications requiring a high degree of accuracy. Whether you need to control the motion of a robotic arm or ensure that a manufacturing process is operating with precision, the Linear Voice Coil Motor is an excellent choice.
The Linear Voice Coil Motor can be used in various product application occasions and scenarios such as:
Medical Equipment: The Linear Voice Coil Motor can be used in medical equipment such as MRI machines, surgical robots, and medical pumps. Its high linearity and positioning accuracy can ensure precision movements in these critical applications.
Optical Equipment: Precision and accuracy are essential in optical equipment. The Linear Voice Coil Motor can be used in applications such as autofocus mechanisms in cameras, 3D scanning systems, and laser beam steering systems.
Industrial Automation: The Linear Voice Coil Motor can be used in robotic arms, pick and place machines, and conveyor systems. Its high repeatability and low noise level make it a reliable choice for industrial automation applications.
Aerospace and Defense: The Linear Voice Coil Motor can be used in satellite positioning systems, missile guidance systems, and unmanned aerial vehicles. Its high precision and low noise level make it a suitable choice for aerospace and defense applications.
Features:
- Product Name: Linear Voice Coil Motor
- Load Capacity: High
- Resolution: High
- Power Consumption: Low
- Voltage Range: 24.3V
- Current Range: 4.8A
Technical Parameters:
| Product Type: | Linear Voice Coil Motor With Shaft |
| Resolution: | High |
| Voltage Range: | 24.3V |
| Rated Speed: | 100HZ(RPM) |
| Rated Power: | 2500N |
| Power Consumption: | Low |
| Current Range: | 4.8A |
| Stroke Length: | 9.9mm |
| Noise Level: | Low |
| Positioning Accuracy: | High |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
|
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
Customization:
Linear Voice Coil Motor ? Look no further than SUPT MOTION , the manufacturer of the VCAB0033-0099-00A model. Our products are made in Jiangsu, China and are certified to meet ISO9001 standards. With a minimum order quantity of 1 , our prices range from $119-$169 with packaging details including carton packaging. Delivery time for 1-5 products is 5-7 days shipment, samples take 3-5 days, and bulk orders can be negotiated. Payment terms accepted are T/T and supply ability is based on interview. Our Linear Voice Coil Motor has a stroke length of 9.9mm , low power consumption, high repeatability, low noise level, and a rated speed of 100HZ(RPM) . Trust SUPT MOTION to provide top-notch customization services for your Linear Voice Coil System or Linear Vocal Coil Engine .Support and Services:
Our Linear Voice Coil Motors are designed to provide high precision and accurate motion control in various applications. We offer comprehensive technical support and services to ensure our customers can fully utilize the capabilities of our products. Our team of experienced engineers can assist with product selection, customization, installation, and troubleshooting. Contact us to learn more about our technical support and services.
Packing and Shipping:
- The Linear Voice Coil Motor product will be packaged in a sturdy cardboard box to ensure safe delivery.
- The product will be wrapped in protective material to prevent any damage during transit.
- The package will include a user manual and any necessary mounting hardware.
Shipping:
- The Linear Voice Coil Motor product will be shipped via a reliable shipping service.
- The shipping cost will be calculated based on the destination and weight of the package.
- The estimated delivery time will be provided to the customer at the time of purchase.
FAQ:
Q: What is the brand name of this product?
A: The brand name of this product is SUPT MOTION.
Q: What is the model number of this product?
A: The model number of this product is VCAB0033-0099-00A.
Q: Where is this product manufactured?
A: This product is manufactured in Jiangsu, China.
Q: Does this product have any certification?
A: Yes, this product is certified with ISO9001.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1 unit.
Q: What is the price range for this product?
A: Different models of motors, different quantities, different prices.
Q: What are the packaging details of this product?
A: The packaging details of this product include carton packaging or as per customer's requirement.
Q: What is the delivery time for this product?
A: For 1-5 products, the delivery time is 5-7 days shipment. For samples, it takes 3-5 days. For bulk orders, delivery time can be negotiated.
Q: What are the payment terms for this product?
A: The payment terms for this product are T/T.
Q: What is the supply ability of this product?
A: The supply ability for this product will be determined during the interview process.
