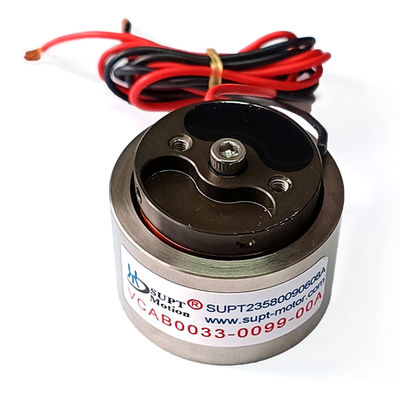

High Positioning Accuracy Linear Voice Coil Motor For Pick And Place Systems
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | VCAB0033-0099-00A |
| Minimum Order Quantity | ≥1 |
| Price | $119~$169 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Noise Level | Low | Load Capacity | High |
|---|---|---|---|
| Voltage Range | 24.3V | Repeatability | High |
| Product Type | Linear Voice Coil Motor With Shaft | Power Consumption | Low |
| Current Range | 4.8A | Stroke Length | 9.9mm |
| Highlight | High Positioning Accuracy Voice Coil Motor,Pick And Place Systems Motor |
||
Product Description
Product Description:
With its high positioning accuracy, the Linear Vocal Coil Engine ensures that your application will be positioned exactly where you need it to be. The linear nature of the motor also ensures that the position will be maintained without any deviation, guaranteeing a highly precise and linear result.
Built in motion shaft and precision linear bearing. The moving shaft is made of light, high rigidity and wear-resistant.
high-quality materials. It is widely used in semiconductor, precision test and detection,valve flow control field.
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
|
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
Features:
- Product Name: Linear Voice Coil Motor
- Current Range: 4.8A
- Power Consumption: Low
- Resolution: High
- Load Capacity: High
- Positioning Accuracy: High
Technical Parameters:
| Product Type: | Linear Voice Coil Motor With Shaft |
| Stroke Length: | 9.9mm |
| Linearity: | High |
| Load Capacity: | High |
| Voltage Range: | 24.3V |
| Noise Level: | Low |
| Resolution: | High |
| Repeatability: | High |
| Rated Speed: | 100HZ(RPM) |
| Rated Power: | 2500N |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
The Linear Voice Coil Motor is a high-quality product with a current range of 4.8A, and it is highly repeatable. The rated power of the product is 2500N, and it has a high resolution. The load capacity of the Linear Voice Coil Motor is high, making it ideal for use in numerous applications.
The Linear Voice Coil Motor is suitable for a variety of product application occasions and scenarios. Some of these include:
- Industrial automation: The Linear Voice Coil Motor is suitable for industrial automation applications, such as pick-and-place equipment, labeling machines, and conveyor systems. With its high resolution and repeatability, the product is ideal for applications that require precise control over linear motion.
- Medical equipment: The Linear Voice Coil Motor is ideal for medical equipment, such as medical pumps, imaging systems, and laboratory automation systems. The high-load capacity of the product makes it suitable for applications that require high force and accuracy.
- Optical systems: The Linear Voice Coil Motor is also suitable for use in optical systems, such as laser cutting machines, scanning systems, and optical metrology systems. The high resolution of the product makes it ideal for applications that require precise linear motion control.
- Consumer electronics: The Linear Voice Coil Motor can be used in consumer electronics applications, such as smartphones, tablets, and laptops. The high-load capacity of the product makes it suitable for applications that require high force and accuracy.
The Linear Voice Coil Motor is a high-performance product that provides precise linear motion control. With its high resolution, repeatability, and load capacity, the product is suitable for a wide range of applications.
Customization:
Linear Voice Coil Motor device:- Brand Name: SUPT MOTION
- Model Number: VCAB0033-0099-00A
- Place of Origin: Jiangsu, China
- Certification: ISO9001
- Minimum Order Quantity: ≥1
- Price: $119~$169
- Packaging Details: Carton Packaging etc
- Delivery Time: 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated
- Payment Terms: T/T
- Supply Ability: Interview
- Stroke Length: 9.9mm
- Noise Level: Low
- Load Capacity: High
- Rated Power: 2500N
- Current Range: 4.8A
Support and Services:
Our Linear Voice Coil Motor product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction.
Our trained technicians are available to answer any product-related questions and provide assistance with installation, operation, and maintenance.
We also offer repair and replacement services for any faulty or damaged components, as well as customization options to meet specific customer requirements.
Additionally, we provide documentation and training materials to help users fully understand the capabilities and features of our Linear Voice Coil Motor product.
Packing and Shipping:
Product Packaging:
The Linear Voice Coil Motor product will be carefully packaged in a sturdy cardboard box to ensure that it arrives at its destination in perfect condition. The box will be labeled with the product name, quantity, and any necessary handling instructions. Inside the box, the product will be securely wrapped in bubble wrap or foam to prevent any damage during transit.
Shipping:
The Linear Voice Coil Motor product will be shipped via a reputable courier service to ensure prompt and safe delivery. The shipping cost will be calculated based on the destination and the weight of the package. Once the package has been shipped, the customer will receive a tracking number to monitor the delivery status of their order.
FAQ:
Q1: What is the brand name of this product?
A1: The brand name of this product is SUPT MOTION.
Q2: What is the model number of this product?
A2: The model number of this product is VCAB0033-0099-00A.
Q3: Where is this product made?
A3: This product is made in Jiangsu, China.
Q4: What certifications does this product have?
A4: This product has the ISO9001 certification.
Q5: What is the minimum order quantity and price for this product?
A5: The minimum order quantity for this product is 1 and the price range is between $119 and $169. The final price will depend on the quantity ordered and other factors, such as delivery location and shipping method.
Q6: What are the packaging details for this product?
A6: The packaging details for this product include carton packaging and other options, depending on your preference and the quantity ordered.
Q7: How long does it take to receive the product after ordering?
A7: For 1-5 products, the shipment usually takes 5-7 days. Samples can be delivered within 3-5 days. Bulk orders can be negotiated for delivery time.
Q8: What are the payment terms for this product?
A8: The payment terms for this product are T/T.
Q9: What is the supply ability of this product?
A9: The supply ability of this product will be discussed during the interview process.
