High Positional Accuracy Rotary Voice Coil Motors For Semiconductor Manufacturing
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001-2000 |
| Model Number | VARS0084-030-00A |
| Minimum Order Quantity | ≥1 |
| Price | $112 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Rotary Voice Coil Motor | Material | Aluminum Alloy |
|---|---|---|---|
| Noise | Low | Accuracy | 0.05mm |
| Peak Torque | 0.84N.m | Type | Rotary Motor |
| Size | 75*48.9*30.6mm | Life | ≥100 Million Cycles |
| Highlight | Semiconductor Manufacturing Rotary Voice Coil Motors,Semiconductor Manufacturing Voice Coil Motors,High Accuracy Rotary Voice Coil Motors |
||
Product Description
Product Description:
The Rotary Actuators have taken the technology of the rectangular linear actuator and bent therm to provide a high resolution limited angle positioning system.Typical stroke angles exceed 100 degrees and torques to 50 N-mThe Rotary Actuators are typically utilized as mirror position Actuators for laser technologies,rotary valve and damping Actuators, rotary positioning systems and flight control Actuators, Rotary Actuators markets include semiconductor,automotive,industrial and aerospace industries.
With a continuous torque of 0.6N-m and a peak torque of 0.84N-m, our Rotational Voice Coil provides exceptional rotational force to meet your application needs.
Semiconductor Manufacturing:
Application: In semiconductor production, voice coil motors are employed for wafer positioning and inspection tools, contributing to precise semiconductor fabrication.
Installation: Install the motor within the semiconductor equipment, ensuring its alignment with the wafer handling mechanisms. Integrate it into the system's control software for coordinated movement.
Features:
- Product Name: Rotary Voice Coil Motor
- Model Number: VARS0084-030-00A
- Continous Torque: 0.6N-m
- Voltage: 6.3V
- Life: ≥100 million cycles
- Warranty: 3months-1 Year
The Rotary Voice Coil Motor, also known as Rotating VCM or Rotational VCM, features a model number of VARS0084-030-00A. It provides a continuous torque of 0.6N-m and operates at a voltage of 6.3V. With a long life of ≥10000h, it comes with a warranty of 3 months to 1 year.
Technical Parameters:
| Name | Rotary Voice Coil Motor |
| Model Number | VARS0084-030-00A |
| Type | Rotary Motor |
| Size | 75*48.9*30.6mm |
| Material | Aluminum Alloy |
| Accuracy | 0.05mm |
| Peak Torque | 0.84N.m |
| Continuous Torque | 0.6N-m |
| Noise | Low |
| Life | ≥100 million cycles |
| Product Model | Peak torque (N-m) |
Continuos torque at 25℃(N-m) |
Total Stroke degrees ( mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil(g) | Length (mm) |
Width (mm) |
Height (mm) |

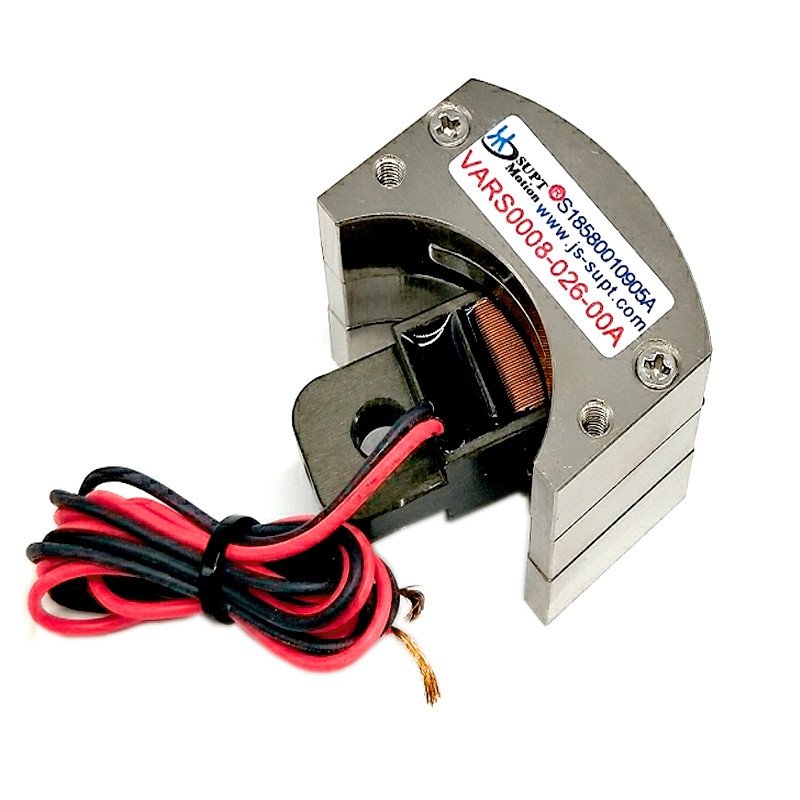

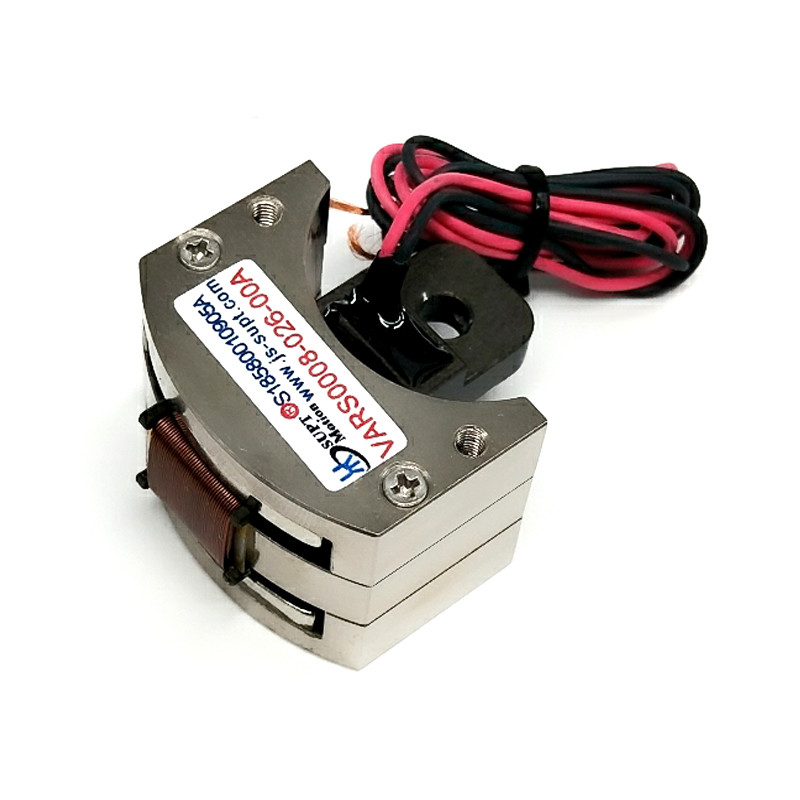

| VARS0008-026-00A | 0.08 | 0.05 | 26 | 6.4 | 0.05 | 11.7 | 35 | 39.8 | 36.1 |

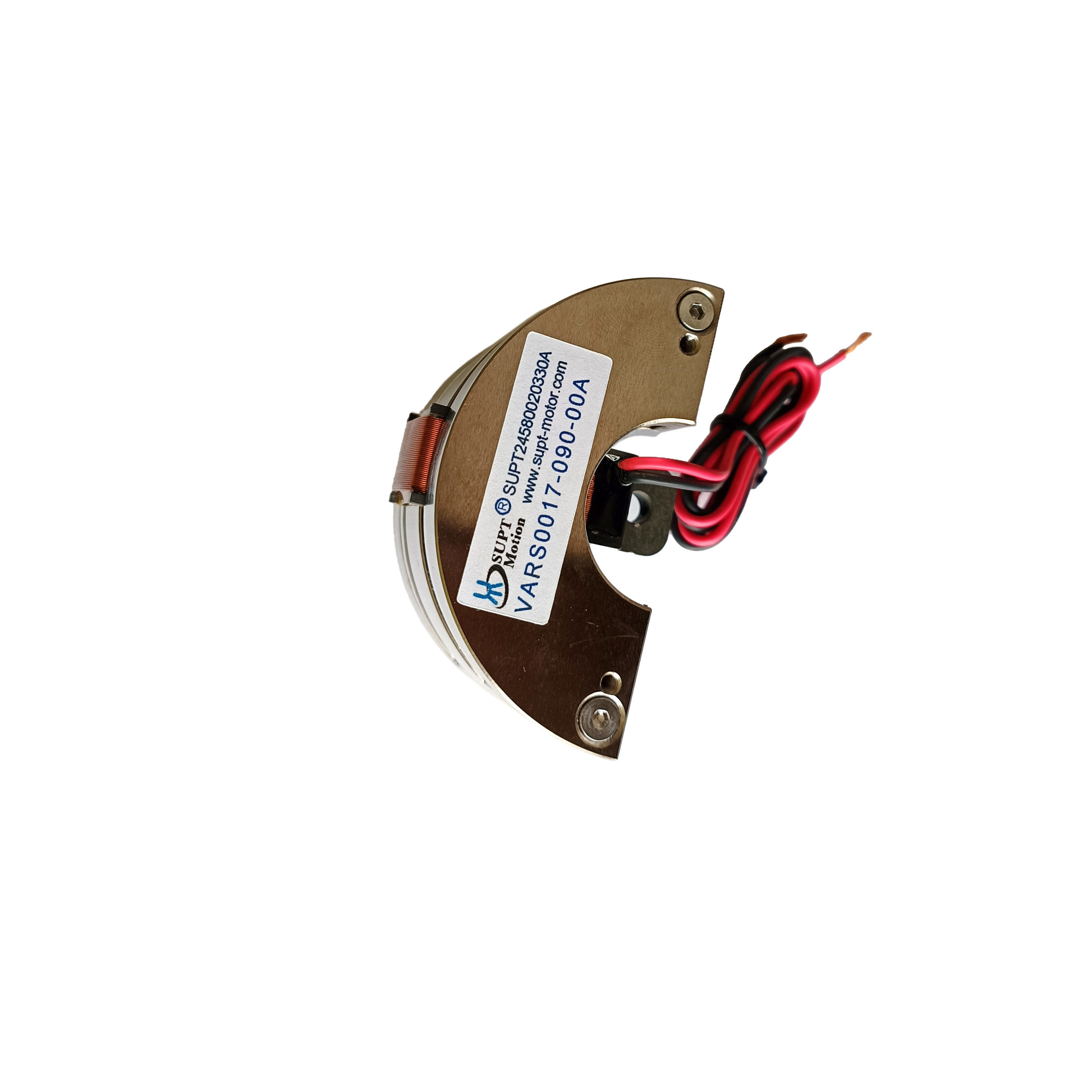

| VARS0017-090-00A | 0.17 | 0.1 | 90 | 11.1 | 0.1 | 17.8 | 70 | 41.5 | 39 |

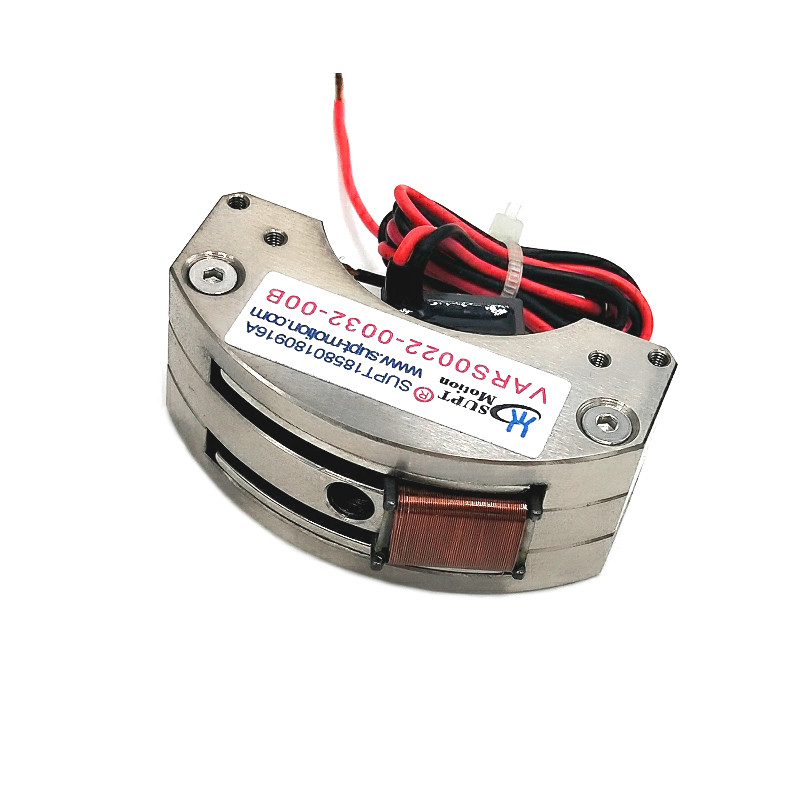

| VARS0022-032-00A | 0.22 | 0.12 | 32 | 15.5 | 0.16 | 21.5 | 60 | 60 | 36 |
| VARS0042-040-00A | 0.42 | 0.38 | 40 | 3.5 | 0.12 | 38 | 82 | 53.6 | 30.3 |
| VARS0077-020-00A | 0.77 | 0.63 | 20 | 6.7 | 0.24 | 66 | 75 | 50 | 30 |
| VARS0084-030-00A | 0.84 | 0.6 | 30 | 6.3 | 0.2 | 50.4 | 75 | 48.9 | 30.6 |
| VARS0120-020-00A | 1.2 | 0.5 | 20 | 8.4 | 0.67 | 65 | 81 | 73.4 | 32 |
| VARS0350-060-00A | 3.5 | 1.14 | 60 | 25.8 | 0.52 | 115 | 115 | 65 | 54.5 |
| VARS0706-014-00A | 7.1 | 2.1 | 14 | 52.4 | 1.03 | 225.5 | 115 | 65 | 54.5 |
| VARS4520-030-00A | 45.2 | 19 | 30 | 71.5 | 4.3 | 1350 | ￠240 | 78 |
Applications:
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding, robotics. |
| 2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment, dispenser, test equipment, textile machinery. |
Customization:
SUPT MOTION's VARS Series offers a range of Rotational VCM options that can be tailored to meet your specific needs. Our products are manufactured in Jiangsu, China and come with ISO9001-2000 certification, ensuring the highest standards of quality and reliability.
Our Rotary Voice Coil Motors are highly accurate, with a precision of 0.05mm, and have a long lifespan of at least 100 million cycles. They operate at a voltage of 6.3V and offer a peak torque of 0.84N.m and a continuous torque of 0.6N-m.
Support and Services:
The Rotary Voice Coil Motor (RVCM) offers high-speed, high-precision rotary motion control with no contact between the moving parts. Our technical support team is available to assist with any questions or issues related to the RVCM, including installation, operation, and troubleshooting.
In addition, we offer a range of services to support our RVCM customers, including:
- Customization of RVCMs to meet specific application requirements
- Repair and maintenance services to ensure optimal performance and longevity
- Training and education for RVCM operation and maintenance
- Technical consulting and engineering services for RVCM integration into larger systems
Our goal is to provide comprehensive support and services to ensure that our customers get the most out of their RVCMs.
Packing and Shipping:
Product Packaging:
- The Rotary Voice Coil Motor will be packaged in a sturdy cardboard box with appropriate cushioning material to prevent damage during transit.
- Each motor will be individually wrapped in bubble wrap to provide extra protection during shipping.
- The package will also include a user manual and any necessary installation hardware.
Shipping:
- The Rotary Voice Coil Motor will be shipped via a reputable courier service.
- Shipping options will be provided at checkout, including standard and expedited shipping.
- Tracking information will be provided to the customer once the package has been shipped.
FAQ:
Q1: What is the brand name of this product?
A1: The brand name of this product is SUPT MOTION.
Q2: What is the model number of this product?
A2: The model number of this product is VARS Series.
Q3: What is the place of origin for this product?
A3: The place of origin for this product is Jiangsu, China.
Q4: What certifications does this product have?
A4: This product is certified with ISO9001-2000.
Q5: What is the minimum order quantity for this product?
A5: The minimum order quantity for this product is 1 or more.
Q6: What is the price of this product?
A6: Different models of motors, different quantities, different prices.
Q7: What are the packaging details for this product?
A7: The packaging details for this product include carton packaging, etc.
Q8: What is the delivery time for this product?
A8: For 1-5 products, shipment takes 5-7 days; samples take 3-5 days; bulk order delivery time is to be negotiated.
Q9: What are the payment terms for this product?
A9: The payment terms for this product are T/T.
Q10: What is the supply ability for this product?
A10: The supply ability for this product will be provided during the interview.
