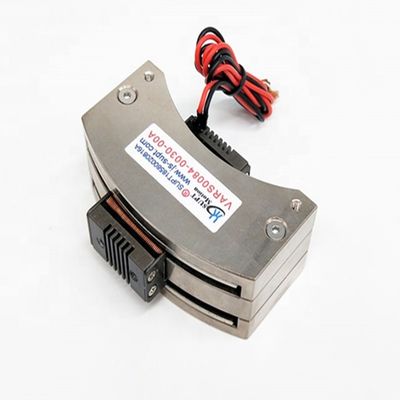

0.84N.M Peak Torque Rectangular Voice Coil Motor For Laser Technologies
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001-2000 |
| Model Number | VARS0084-030-00A |
| Minimum Order Quantity | ≥1 |
| Price | $112 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Life | ≥10000h | Voltage | 6.3V |
|---|---|---|---|
| Accuracy | 0.05mm | Peak Torque | 0.84N.m |
| Material | Aluminum Alloy | Noise | Low |
| Continous Torque | 0.6N-m | Size | 75*48.9*30.6mm |
| Stroke | 30° | ||
| Highlight | Laser Technologies Rectangular Voice Coil Motor,0.84N.M Rectangular Voice Coil Motor,Rectangular Rotary Voice Coil Motor |
||
Product Description
Product Description:
The VARS0084-030-00A Rotary VCM is designed to produce low noise during operation, making it suitable for applications. The low noise feature is due to the motor's design, which minimizes vibration and friction.
The Rotary Actuators have taken the technology of the rectangular linear actuator and bent therm to provide a high resolution limited angle positioning system.Typical stroke angles exceed 100 degrees and torques to 50 N-m,The Rotary Actuators are typically utilized as mirror position Actuators for laser technologies,rotary valve and damping Actuators, rotary positioning systems and flight control Actuators, Rotary Actuators markets include semiconductor,automotive,industrial and aerospace industries. Its high precision and fast response time make it ideal for applications that require accurate and rapid motion.
Features:
- Product Name: Rotary Voice Coil Motor
- Size: 75*48.9*30.6mm
- Type: Rotary Motor
- Peak Torque: 0.84N.m
- Voltage: 6.3V
Technical Parameters:
| Product Name: | Rotary Voice Coil Motor |
| Type: | Rotary Motor |
| Model Number: | VARS0084-030-00A |
| Size: | 75*48.9*30.6mm |
| Voltage: | 6.3V |
| Continous Torque: | 0.6N-m |
| Peak Torque: | 0.84N-m |
| Noise: | Low |
| Life: | ≥10000h |
| Warranty: | 3 months-1 Year |
| Product Model | Peak torque (N-m) |
Continuos torque at 25℃(N-m) |
Total Stroke degrees ( mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil(g) | Length (mm) |
Width (mm) |
Height (mm) |
| VARS0008-026-00A | 0.08 | 0.05 | 26 | 6.4 | 0.05 | 11.7 | 35 | 39.8 | 36.1 |
| VARS0017-090-00A | 0.17 | 0.1 | 90 | 11.1 | 0.1 | 17.8 | 70 | 41.5 | 39 |
| VARS0022-032-00A | 0.22 | 0.12 | 32 | 15.5 | 0.16 | 21.5 | 60 | 60 | 36 |
| VARS0042-040-00A | 0.42 | 0.38 | 40 | 3.5 | 0.12 | 38 | 82 | 53.6 | 30.3 |
| VARS0077-020-00A | 0.77 | 0.63 | 20 | 6.7 | 0.24 | 66 | 75 | 50 | 30 |
| VARS0084-030-00A | 0.84 | 0.6 | 30 | 6.3 | 0.2 | 50.4 | 75 | 48.9 | 30.6 |
| VARS0120-020-00A | 1.2 | 0.5 | 20 | 8.4 | 0.67 | 65 | 81 | 73.4 | 32 |
| VARS0350-060-00A | 3.5 | 1.14 | 60 | 25.8 | 0.52 | 115 | 115 | 65 | 54.5 |
| VARS0706-014-00A | 7.1 | 2.1 | 14 | 52.4 | 1.03 | 225.5 | 115 | 65 | 54.5 |
| VARS4520-030-00A | 45.2 | 19 | 30 | 71.5 | 4.3 | 1350 | ￠240 | 78 |
Applications:
The SUPT MOTION Rotary Voice Coil Motor (model number VARS0084-030-00A) is a high-precision actuator that is manufactured in Jiangsu, China and has been certified with ISO9001-2000. It is a versatile and reliable product that can be used in a variety of applications and scenarios due to its unique features and attributes.
The Rotary Voice Coil Motor is ideal for applications where a high degree of accuracy is required, such as in semiconductor manufacturing, medical equipment, and aerospace engineering. It can also be used in robotics, precision optics, and automation systems, among other applications.
Support and Services:
The Rotary Voice Coil Motor product comes with technical support and services to ensure optimal performance and longevity. These services include:
- Expert technical support from our team of engineers and product specialists
- Installation guidance and assistance
- Ongoing maintenance and repair services
- Customization and design services to meet unique application requirements
Our goal is to provide comprehensive support throughout the life of your Rotary Voice Coil Motor product to maximize its performance and minimize downtime.
Packing and Shipping:
Product Packaging:
- The Rotary Voice Coil Motor will be carefully packaged in a sturdy cardboard box.
- The motor will be placed in a foam insert to prevent any damage during transport.
- All necessary cables and manuals will be included in the package.
Shipping:
- The package will be shipped via a reputable courier to ensure timely and safe delivery.
- Customers will receive a tracking number once their order has been shipped.
- Shipping times will vary depending on the destination, but customers can expect delivery within 5-10 business days.
FAQ:
Q: What is the brand name of the rotary voice coil motor?
A: The brand name is SUPT MOTION.
Q: What is the model number of the rotary voice coil motor?
A: The model number is VARS Series.
Q: Where is the rotary voice coil motor manufactured?
A: The rotary voice coil motor is manufactured in Jiangsu, China.
Q: Does the rotary voice coil motor come with any certification?
A: Yes, the rotary voice coil motor has ISO9001-2000 certification.
Q: What is the price of the rotary voice coil motor?
A: Different models of motors, different quantities, different prices.
Q: What is the minimum order quantity for the rotary voice coil motor?
A: The minimum order quantity is 1.
Q: What are the packaging details for the rotary voice coil motor?
A: The packaging details include carton packaging and others.
Q: How long will it take to receive my order of 1-5 rotary voice coil motors?
A: It will take 5-7 days for shipment of 1-5 rotary voice coil motors.
Q: How long will it take to receive samples of the rotary voice coil motor?
A: It will take 3-5 days to receive samples of the rotary voice coil motor.
Q: What are the payment terms for the rotary voice coil motor?
A: The payment terms are T/T.
Q: What is the supply ability of the rotary voice coil motor?
A: The supply ability will be discussed during the interview process.
