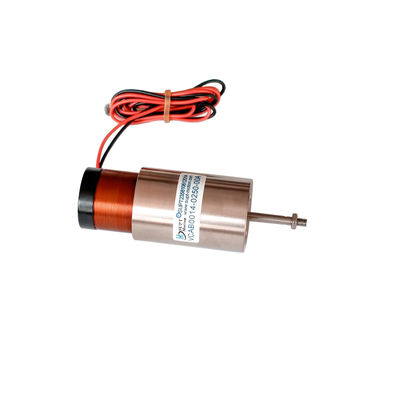

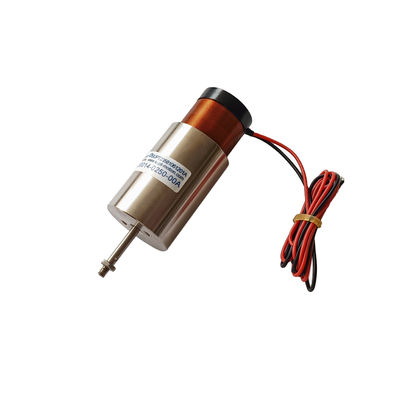

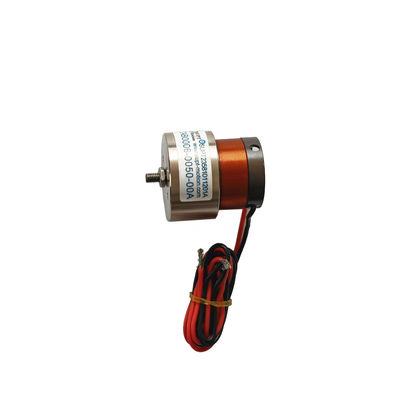

High Performance And High Thrust Output Shaft Voice Coil Motor For Robot Technology
| Place of Origin | china,Suzhou |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | VCAB Series |
| Minimum Order Quantity | 1PCS |
| Price | $126 |
| Packaging Details | Carton Packaging etc. |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Batch Number | YET-YQDJ29 | Power Consumption | Low |
|---|---|---|---|
| Rated Speed | 100HZ(RPM) | Noise Level | Low |
| Speed Range | High | Rated Power | 2500N |
| Load Capacity | High | Repeatability | High |
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle |
| Performance | High Performance | ||
| Highlight | High Thrust Voice Coil Motor,Robot Technology Voice Coil Motor,High Performance Voice Coil Motor |
||
Product Description
Product Description:
The output voice coil motor is a special type of voice coil motor, which is designed differently from traditional built-in voice coil motors. Its voice coil (coil) is located outside the motor, surrounding the axis of the motor, and has some unique characteristics and advantages compared to traditional built-in voice coil motors. The working principle of the axial voice coil motor is similar to other voice coil motors, using Lorentz force to generate mechanical motion. When the current passes through the voice coil located outside the motor, it is subjected to a force in the magnetic field inside the motor, causing the external voice coil to start moving. This motion can be used to drive mechanical loads or vibrating membranes to meet various application requirements.
The axial voice coil motor is a flexible, compact, and high-performance motor type suitable for various applications that require precise control and compact design. The design of its external voice coil plays an important role in automation, robotics, aerospace and other fields, promoting the development and innovation of related fields.
Let's talk about the application of axial motors in robotics technology. In automation and robotics, axial voice coil motors can be used to drive robot joints, achieving precise position and speed control; Firstly, the axial voice coil motor is commonly used in the joint drive system of robots to control joint motion. Due to its high precision, fast response, and high efficiency, the output voice coil motor is very suitable for achieving precise control and action execution of robot joints. This precise control can enable robots to complete complex action tasks such as assembly, picking, and placement.
Secondly, the output axis voice coil motor can also be used to drive the end effectors of robots, such as grippers, fixtures, nozzles, etc. By combining the output axis voice coil motor with corresponding mechanical devices, precise position control and force control of the robot's end effector can be achieved, thereby achieving more flexible and precise operations.
Moreover, for wheeled robots, the output voice coil motor is commonly used to drive their wheels or track systems. This type of motor can provide high torque and power density, allowing wheeled robots to move quickly, turn flexibly, and achieve stable motion in different terrains.
It also has the functions of joint sensor driving and dynamic balance control. The output axis voice coil motor is usually used in conjunction with sensors to achieve closed-loop control of robot joints. Through feedback mechanisms, real-time monitoring and adjustment of joint position, velocity, and force can be achieved, thereby improving the motion accuracy and stability of robots. The high response speed and precise control ability of the output axis voice coil motor make it play an important role in the dynamic balance control of robots. For example, in bipedal robots or aircraft, the axial voice coil motor can be used to adjust the robot's posture and balance in real-time to maintain its stable motion.
Therefore, the use of axial voice coil motors in robot technology involves multiple aspects such as motion control, force control, and attitude adjustment, which can improve the performance, flexibility, and autonomy of robots and promote the continuous development and application of robot technology.
Features:
- Product Name: Output Shaft Voice Coil Motor
- Model Number: VCAB
- Product Type: Linear Voice Coil Motor
- Load Capacity: High
- Force Output: High
- Power Consumption: Low
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
The application of axial voice coil motors is very extensive, and they are widely used globally, mainly concentrated in some developed countries and regions, especially in countries with high industrialization and leading technological levels. Axial voice coil motors are widely used in fields such as automation, robotics, aerospace, industrial automation, automotive manufacturing, medical equipment, and electronic products.
Customization:
Customized Linear Voice Coil Motor
Brand Name: SUPT MOTION
Model Number: VCAB Series
Place of Origin: Jiangsu, China
Certification: ISO9001
Minimum Order Quantity: ≥1
Price: $126
Packaging Details: Carton Packaging etc
Delivery Time: 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated
Payment Terms: T/T
Supply Ability: Interview
Key Features of Linear Voice Coil Motor
Power Consumption: Low
Product Type: Output Shaft Voice Coil Motor
Resolution: High
Linearity: High
Performance:High Performance
Support and Services:
Technical Support and Service for Output Shaft Voice Coil Motor
We offer comprehensive technical support and service to ensure your Output Shaft Voice Coil Motor is running smoothly. Our support team is made up of professional engineers and technicians with years of experience in the field.
We offer phone and email support for any technical inquiries you may have. We also offer comprehensive maintenance and repair services, ensuring that your Output Shaft Voice Coil Motor is always running optimally.
For more information about our technical support and service, please contact us at your convenience. We look forward to helping you get the most out of your Linear Voice Coil Motor.
We can provide installation assistance, maintenance and troubleshooting services, as well as regular preventive maintenance and upgrades.
If you have a problem or need assistance with your Linear Voice Coil Motor, please contact us and we will be happy to help.
Packing and Shipping:
- The linear voice coil motor will be packaged in a standard box that is made of high-quality cardboard.
- The box will be labeled with the product name and other relevant information such as the weight and size.
- The linear voice coil motor will be shipped within 2-3 business days of the order being placed.
- The shipping method will vary depending on the destination. We offer both ground and express shipping options.
- All orders will be shipped with a tracking number to ensure safe and timely delivery.
FAQ:
- Q: What is the Brand Name?
- A: The Brand Name is SUPT MOTION.
- Q: What is the Model Number?
- A: The Model Number is VCAB Series.
- Q: Where is the Place of Origin?
- A: The Place of Origin is Jiangsu, China.
- Q: What is the minimum order quantity for the Output Shaft Voice Coil Motor?
A: The minimum order quantity for the Linear Voice Coil Motor is ≥1. - Q: How much is the Output Shaft Voice Coil Motor?
- A: Different models of motors, different quantities, different prices.
