High Load Capacity Linear Voice Coil Motors High Precision For Automation Industry
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | VCAB Series |
| Minimum Order Quantity | ≥1 |
| Price | $119~$169 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | High | Product Type | Linear Voice Coil Motor With Shaft |
|---|---|---|---|
| Rated Power | 2500N | Repeatability | High |
| Current Range | 4.3A | Positioning Accuracy | High |
| Stroke Length | 13mm | Product Model | VCAB0013-0072-00A |
| Highlight | High Load Capacity Linear Voice Actuator,Linear Voice Actuator 2500N,2500N Linear Coil Actuator For Industrial |
||
Product Description

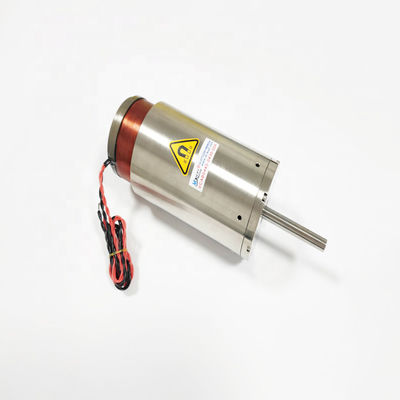

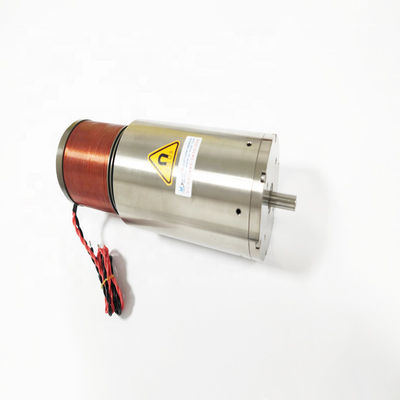

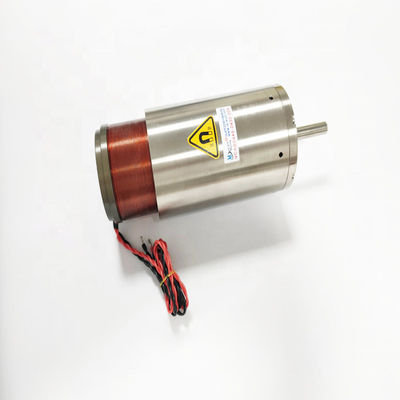

High Load Capacity 2500N Linear Vocal Coil Engine For Industrial Automation
Product Description:
Our Linear Voice Coil Motor is a cutting-edge product that offers high resolution, high repeatability, and a rated speed of 100HZ (RPM). It is a Linear Vocal Coil Engine which provides superior performance and accuracy. The Linear Voice Coil Product is designed to meet the highest standards and is capable of providing a current range of 4.3A. With its robust shaft, it can be used in various applications and is sure to deliver a reliable performance.
Linear Voice Coil Motor built in motion shaft and precision linear bearing. The moving shaft is made of light, high rigidity and wear-resistant. It is widely used in semiconductor, precision test and detection,valve flow control field.Features:
- Product Name: Linear Voice Coil Motor
- Force Output: High
- Positioning Accuracy: High
- Current Range: 4.3A
- Rated Speed : 100HZ(RPM)
- Power Consumption: Low
- Linear Voice Coil System: Highly efficient motion control system
Technical Parameters:
| Parameters | Value |
|---|---|
| Linear Voice Coil Device | VCAB Series |
| Rated Speed | 100HZ(RPM) |
| Force Output | High |
| Voltage Range | 26V |
| Power Consumption | Low |
| Linearity | High |
| Noise Level | Low |
| Rated Power | 2500N |
| Current Range | 4.3A |
| Product Type | Linear Voice Coil Motor With Shaft |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
The main application of a voice coil motor:
1.Semiconductor industry:Writting,cutting,drilling,transportation systems,welding,robotics.
2.Valve operation in the field:Type metering valves,pressure test systems,pneumatic valve chemistry injection system.
3.Micro machine industry:Feed systems,micro drilling,precision stamping.
4.Vibration system:Shaking table,vibration platform.
5.Medical filed:Micro-injection system,respiratory equipment,testing equipment.
6.Aviation Technology:Flight control system,pilot feedback system.
7.Commercial use field:Computer cooling pump miniature camera auto focus system.
8.Automation industry:Laser equipment,dispenser,test equipment,textile machinery.
