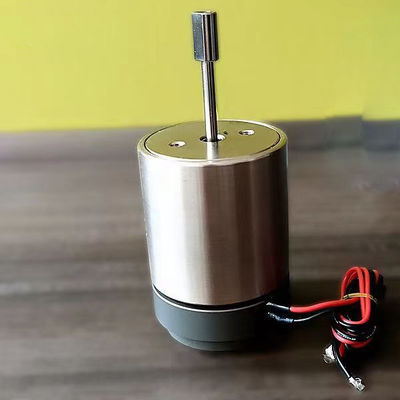

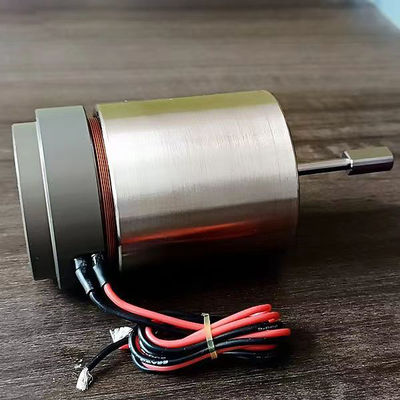

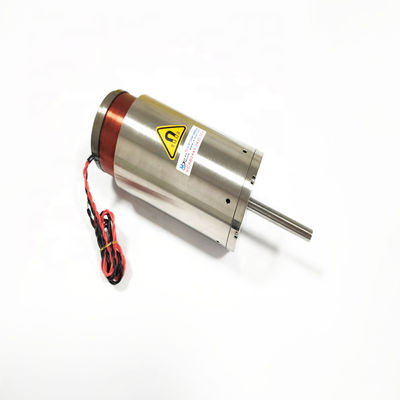

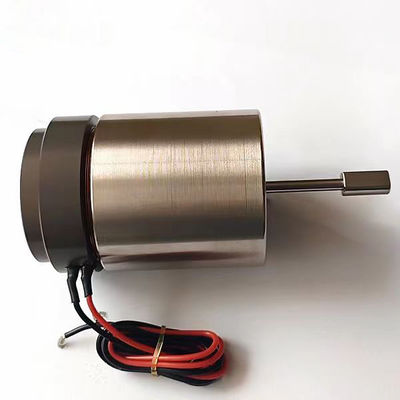

VCAB Series Linear Voice Coil High Force Output VCM Low Noise Motor High Efficiency
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | VCAB0015-0127-00A |
| Minimum Order Quantity | ≥1 |
| Price | $119 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Current Range | 4.2A | Repeatability | High |
|---|---|---|---|
| Rated Power | 2500N | Resolution | High |
| Noise Level | Low | Load Capacity | High |
| Voltage | 21.5V | Model Number | VCAB0015-0127-00A |
| Peak Force | 15N | ||
| Highlight | VCAB Series Linear Voice Coil,Linear Voice Coil High Force Output,VCM Low Noise Motor High Efficiency |
||
Product Description
VCAB Series High Force Output Linear Voice Coil Motor High Efficiency & Low Noise
Product Description:
The Linear Voice Coil Motor is a highly efficient and reliable linear motion system. It is designed to provide precise and accurate linear motion with its high positioning accuracy, high load capacity, and long stroke length. Its voltage range of 21.5V makes it suitable for various applications. Its product type is a linear voice coil motor with a shaft, which can provide a smooth and precise linear motion. The high load capacity and stroke length of 12mm ensure that it can meet any application requirements. Its high positioning accuracy allows for high precision and accuracy when controlling linear motion.
Features:
- Linear Voice Coil System: Linear Voice Coil Motor
- Model Number: VCAH Series
- Voltage Range: 28V
- Current Range: 4.2A
- Rated Speed: 100HZ (RPM)
- Linearity: High
Technical Parameters:
| Parameter | Value |
|---|---|
| Noise Level | Low |
| Linearity | High |
| Rated Speed | 100HZ(RPM) |
| Force Output | High |
| Load Capacity | High |
| Resolution | High |
| Voltage Range | 21.5V |
| Power Consumption | Low |
| Model Number | VCAB0015-0127-00A |
| Repeatability | High |
| Device Type | Linear Voice Coil Motor |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
SUPT MOTION's Linear Voice Coil Motors (Model VCAB Series) are a reliable and powerful motor technology, designed and manufactured in Jiangsu, China to the highest standards of ISO9001 certification. With a minimum order quantity of 1, these motors come with competitive pricing starting from $119 per unit. Packaging is done in a secure carton packaging, and delivery time is typically 1-5 products in 5-7 days, samples in 3-5 days, and bulk orders to be negotiated. Payment terms are done through T/T. SUPT MOTION is capable of supplying as per interviews. The rated power of these motors is 2500N, and the force output is high. The rated speed is 100HZ(RPM). Additionally, these motors have a high load capacity. It is widely used in semiconductor, precision test and detection,valve flow control field.
