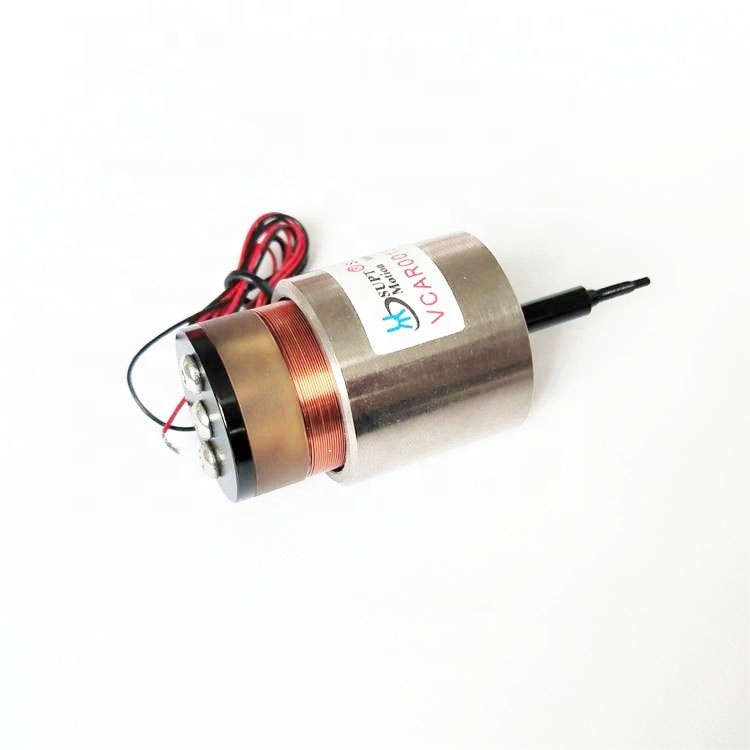

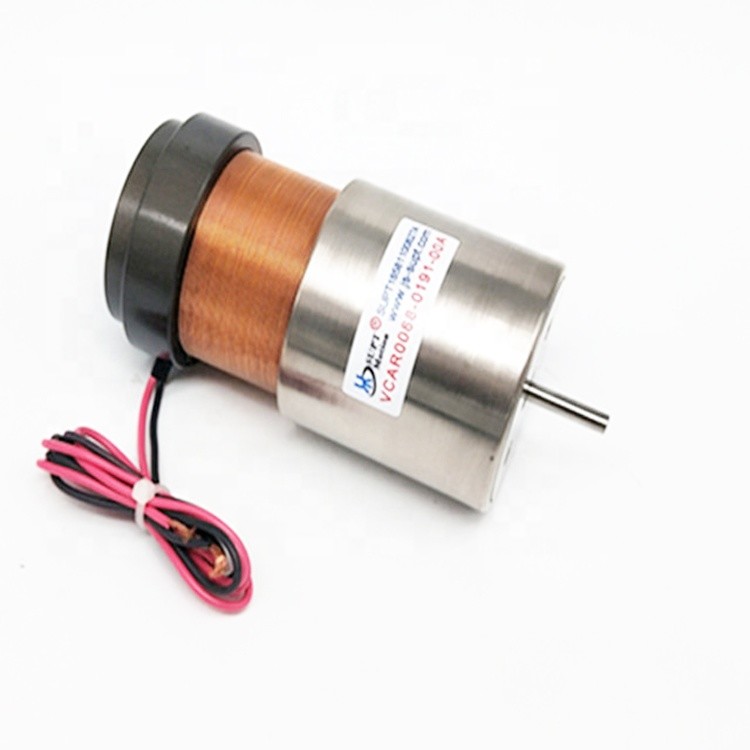

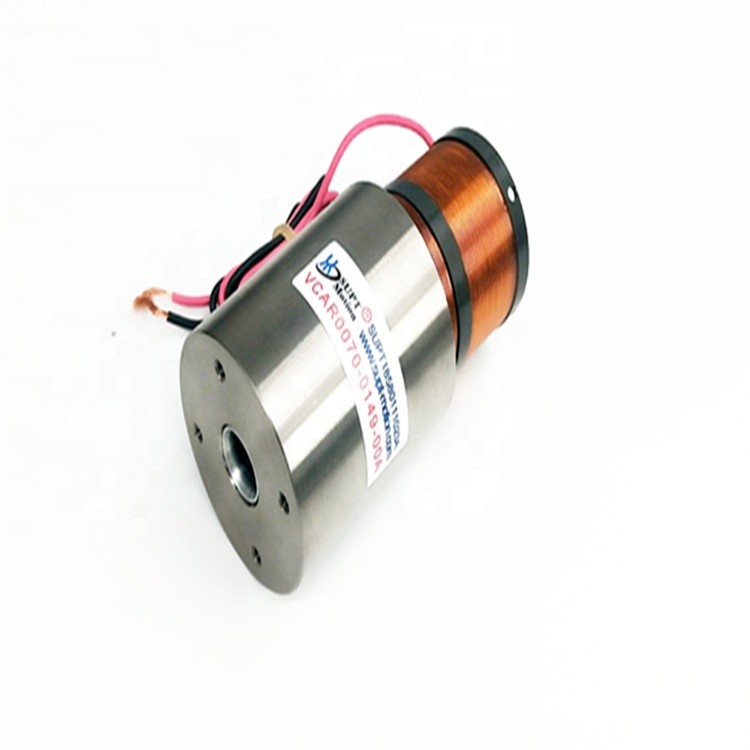

High Resolution Linear Voice Coil Motor With Shaft For Industrial Automation

High Resolution Linear Voice Coil Motor With Shaft For Industrial Automation

Product Description:

Linear Voice Coil Motor is a linear voice coil device that is highly efficient, reliable and cost-effective. This product is designed to provide precise linear motion and is used for various applications. It provides low power consumption with high repeatability, rated speed of 100HZ (RPM) and low noise level. This Linear Voice Coil Motor is also rated at 2500N, which is the highest power that can be achieved by any Linear Voice Coil product.

The Linear Voice Coil Motor is designed to provide high accuracy and repeatability, and its high power output ensures excellent performance. This product is also designed to be lightweight and compact, making it easy to install and operate. It also offers a low power consumption and low noise level, making it an ideal choice for many industrial applications. This Linear Voice Coil Motor is a reliable, efficient and cost-effective linear motion solution.

The VCAB series of Cylindrical Actuators constitute nearly 80% of the market,they can produce a high force with a high acceleration rates.Peak force range for 0.7N to 3000N.Typically,their stroke length is less than 50mm.

The VCAB series Actuators Application include valve actuators,Z axis pick and place,small accurate positive displacement metering pumps and both vibrators and active vibration dampening systems.Markets include Medical Semiconductor,Aeropspace and Automotive.

Features:

• Product Name: Linear Voice Coil Motor
• Load Capacity: High
• Force Output: High
• Model Number: VCAB Series
• Power Consumption: Low
• Rated Power: 2500N



Technical Parameters:

Parameters	VCAH Series
Linearity	High
Power Consumption	Low
Resolution	High
Force Output	High
Positioning Accuracy	High
Noise Level	Low
Rated Power	2500N
Repeatability	High
Rated Speed	100HZ(RPM)

Product Model	Peak Force (N)	Continuous Force at 25℃(N)	Total Stroke (mm)	Max Voltage (V)	Back EMF Constant (V/m/s)	Weight of the coil (g)	Stator Diameter	Shaft end thread (mm)
VCAB0005-0039-00A	5	1.5	3	5.4	0.9	23	29.5	M2(Outer)
VCAB0005-0050-00A	5	2.2	3.9	14.5	3.1	27	31.5	M2.5(Outer)
VCAB0013-0072-00A	13	4.2	7.2	26.6	5.72	16.2	26.2	M3(Outer)
VCAB0015-0062-00A	15	6.5	6.2	26.2	9.75	14.8	33	M3(Outer)
VCAB0015-0127-00A	15	4.9	12.7	21.5	4.1	12.5	30.5	Shaft ∮4.8
VCAB0022-0098-00A	22	6.6	9.8	24.7	5.8	20	34.1	M3(Outer)
VCAB0022-0448-00A	22	11.4	44.8	14.3	4	52	48	M3(Inner)
VCAB0032-0050-00A	32	8.9	5	29.3	7.1	48	40	M3(Inner)
VCAB0033-0099-00A	33	8	9.9	24.3	5.87	23.5	36	M3(Outer)
VCAB0033-0224-00A	33	13.5	22.4	26.7	6.8	69	58	M3(Inner)
VCAB0035-0105-00A	35	15.6	10.5	11.9	5	91	50	M3(Inner)
VCAB0044-0040-00A	44	16.3	4	18.3	8.9	46.5	53	M3(Inner)
VCAB0044-0059-00A	44.1	17.7	5.9	14.3	8	43	46	M3(Inner)
VCAB0044-0075-00A	44	13.7	7.5	16.8	7.6	38.6	31.1	M3(Outer)
VCAB0044-0249-00A	44	11.7	24.9	44.9	8.88	65.9	38.1	M3(Inner)
VCAB0070-0149-00A	70	27.3	14.9	26.9	17.7	79	43	M3(Inner)
VCAB0087-0062-00A	87	21.67	6.2	34.5	12.7	45.2	43.1	M3(Inner)
VCAB0087-0563-00A	87	17.5	56.3	63.4	8.1	177	72	shaft ∮10
VCAB0088-0191-00A	88.5	23.2	19.1	29.9	8	162	50.8	M3(Inner)
VCAB0105-0164-00A	105	35.4	16.1	20.1	11.5	150	60.4	M3(Inner)
VCAB0113-0089-00A	113	35	8.9	31	17.5	125	73	shaft ∮8
VCAB0262-0112-00A	262	111	11.2	35.1	41	285	71	shaft ∮10
VCAB0262-0249-00A	262	112	24.9	28.2	26	785	66	shaft ∮8
VCAB0294-0498-00A	294	56.8	49.8	114	24.5	685	93	shaft ∮10
VCAB0436-0187-00A	436	147.6	18.7	40.7	40.7	648	80.4	shaft ∮10
VCAB0436-0250-00A	436	167	25	31.6	37.2	775	78.4	shaft ∮10
VCAB0445-0300-00A	445	185	30	33	35	920	76.2	shaft ∮10

Applications:

The main application of a voice coil motor:
1.Semiconductor industry:Writting,cutting,drilling,transportation systems,welding,robotics.
2.Valve operation in the field:Type metering valves,pressure test systems,pneumatic valve chemistry injection system.
3.Micro machine industry:Feed systems,micro drilling,precision stamping.
4.Vibration system:Shaking table,vibration platform.
5.Medical filed:Micro-injection system,respiratory equipment,testing equipment.
6.Aviation Technology:Flight control system,pilot feedback system.
7.Commercial use field:Computer cooling pump miniature camera auto focus system.
8.Automation industry:Laser equipment,dispenser,test equipment,textile machinery.
