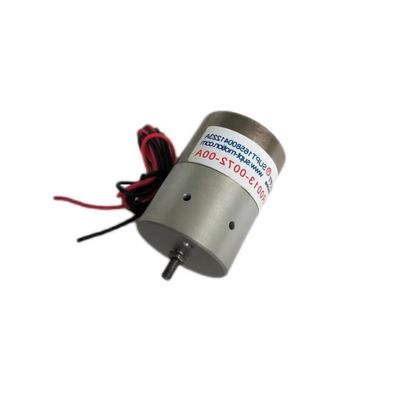

Precision Test Voice Coil Motor High Frequency Outlet Type Voice Coil Actuator
| Place of Origin | China Suzhou |
|---|---|
| Brand Name | SUPT |
| Certification | ISO9001 |
| Model Number | VCAH/VCRH Series |
| Minimum Order Quantity | ≥3 |
| Price | $135 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | General 5-7 days delivery, fast 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Micro Output Shaft Motor | Connector | Molex |
|---|---|---|---|
| Resolution | Hight | Continuous Force | 7.2N |
| Stroke Length | 10mm | Positioning Accuracy | ±0.1mm |
| Rated Speed | 100HZ(RPM) | Voltage | 25V |
| Product Model | VCAH0030-0100-00A | ||
| Highlight | Precision Test Voice Coil Motor 12mm,Voice Coil Motor High Frequency,Outlet Type Voice Coil Actuator 12mm |
||
Product Description
Precision Test And Detection Outlet Type Voice Coil Motor High Frequency High Speed
Product Description:
Built in motion shaft and precision linear bearing. The moving shaft is made of light, high rigidity and wear-resistant high-quality materials.
Introducing the Fully House Voice Coil Actuator – a fully-protected, outlet type voice coil motor that delivers exceptional performance and is fully-enclosed for a low noise level. Constructed with an aluminum alloy, the Fully House Voice Coil Actuator offers superior durability and longevity. It features a 47mm lead wire and produces a Low noise. This Voice Coil Actuator offers a reliable solution for a variety of applications and is highly recommended for micro output shaft motor applications.
Features:
- Fully-Housed Voice Coil Actuator: Product Name
- Positioning Accuracy: ±0.1mm
- Weight: Light
- Stroke Length: 10mm
- Resolution: High
Technical Parameters:
| Product Name | Fully Enclosed Voice Coil Actuator |
|---|---|
| Positioning Accuracy | ±0.1mm |
| Material | Aluminum Alloy |
| Max Voltage | 25V |
| Peak Force | 30N |
| Noise Level | Low |
| Weight | Light |
| Rated Speed | 100HZ(RPM) |
| Stroke Length | 10mm |
| Lead Wire | 47mm |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Stator Diameter (mm) | The Length (mm) |
Shaft end thread (mm) |
| VCAH0253-0120-00A | 253 | 46.5 | 12 | 42.7 | 16 | 53.95 | 109 | M5(Inner) |
| VCAH0011-0070-00A | 11 | 3.6 | 7 | 26.2 | 4.9 | 31.5 | 38.9 | M3(Outer) |
| VCAH0013-0070-00A | 13 | 4.2 | 7 | 26.6 | 5.7 | 29 | 40.5 | M3(Outer) |
| VCAH0030-0100-00A | 30 | 7.2 | 10 | 24.9 | 5.2 | 37 | 47 | M3(Outer) |
| VCAH0040-0075-00A | 40 | 12.3 | 7.5 | 16.8 | 6.9 | 36 | 50 | ∮3 |
| VCAH0040-0240-00A | 40 | 6 | 24 | 44.5 | 8 | 41 | 83 | M3(Inner) |
| VCAH0065-0140-00A | 65 | 24.6 | 14 | 27.6 | 16 | 44 | 75 | M3(Inner) |
| VCAH0230-0110-00A | 230 | 100 | 11 | 34.2 | 37 | 71 | 117 | ∮10 |
Applications:
Fully-Enclosed Voice Coil Actuator – SUPT VCAH/VCRH Series
The SUPT VCAH/VCRH Series is a fully-enclosed voice coil actuator, also known as a completely-housed or comprehensively-housed voice coil actuator, certified by ISO9001. It is made of aluminum alloy, and has a Low noise. The rated speed is 100HZ(RPM), and the lead wire is 47mm. It is lightweight, making it ideal for a variety of applications.
The minimum order quantity is ≥3, and the price is $135. Packaging is done in a carton, and delivery time is from general 5-7 days delivery, fast 3-5 days, bulk to be negotiated. Payment terms are T/T. SUPT has the capacity to meet the needs of any order, and can provide an interview if necessary.
It is widely used in semiconductor, precision test and detection, valve flow control field.
