50mm Stroke Linear Motor Actuator High Positioning Accuracy Voice Coil Motor
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001-2000 |
| Model Number | VCAS Series |
| Minimum Order Quantity | ≥1 |
| Price | $115-$156 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | General 5-7 days delivery, fast 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Peak Force | 2.1N | Repeatability | 0.05mm |
|---|---|---|---|
| Stroke Length | 50mm | Current | 2A |
| Speed | Hight | Type | Rectangular Type Actuator |
| Power Supply | DC | Weight | 16g |
| Product Model | VCAS0002-0498-00A | ||
| Highlight | 50mm Stroke Linear Motor Actuator,Linear Motor Actuator 0.1mm,0.1mm Positioning Accuracy Voice Coil Motor |
||
Product Description
50mm Stroke Linear Motor Actuator with 0.1mm Positioning Accuracy
Product Description:
Linear Electric Motor Actuator
Our Linear Electric Motor Actuator is a type of rectangular electric motor drive and system, designed for linear motion control and automation. It is fabricated with an aluminum alloy housing that provides total protection and insulation. The current rating of this motor actuator is 2A.
The Linear Electric Motor Actuator is ideal for applications that require high-precision, fast-speed, and reliable linear motion. It can be used for a variety of applications, such as industrial automation, robotics, and precision instrumentation.
The VCAS series Rectangular Actuators have a lower force per weight than the Cylindrical Actuators.But they also have a much longer strokes Forces range up to 1000N and 250mm.The VCAS series Rectangular Actuator are the ideal solution for X-Y Axis movements and their major market is in the semiconductor and micro machine tool industries.
Features:
- Product Name: Linear Motor Actuator
- Type: Rectangular Type Actuator
- Name: Linear Motor Actuator Unit
- Power Supply:DC
- Noise Level: 50dB
- Protect Feature: Totally Enclosed
- Linear Motor Actuator Unit: Linear Electric Motor Actuator
- Electric Motor Actuator: Linear Electric Motor Actuator
Technical Parameters:
| Feature | Specification |
|---|---|
| Protect Feature | Totally Enclosed |
| Weight | Low |
| Repeatability | 0.05mm |
| Stroke Length | 50mm |
| Voltage | 11V |
| Peak force | 2.1N |
| Power Supply | DC |
| Speed | High |
| Noise Level | Low |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAS0002-0498-00A | 2.1 | 1.3 | 50 | 11.3 | 1.3 | 15 | 72 | 42.6 | 33 |
| VCAS0002-0747-00A | 2.1 | 1.3 | 74.7 | 11.3 | 1.3 | 15 | 100.5 | 42.6 | 37 |
| VCAS0006-0030-00A | 6.1 | 3.2 | 3 | 13.3 | 4.6 | 18.2 | 25.1 | 34.1 | 27 |
| VCAS0006-0099-00A | 6.1 | 3.2 | 10 | 13.7 | 4.6 | 18.2 | 33.5 | 34.1 | 26.9 |

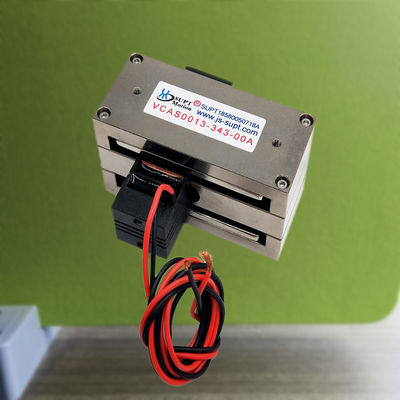

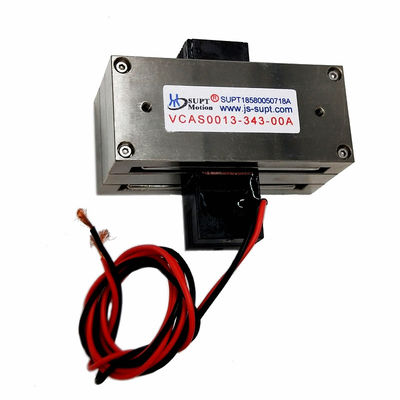

| VCAS0013-0343-00A | 13 | 8 | 34.3 | 12.6 | 5.8 | 40 | 68.3 | 60 | 34.8 |

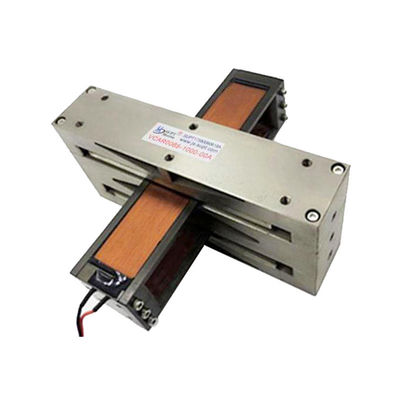

| VCAS0065-1000-00A | 65 | 22.4 | 100 | 28.7 | 9.7 | 135 | 170 | 59.6 | 81.9 |
Applications:
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding, robotics. |
| 2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment, dispenser, test equipment, textile machinery. |
