6N Peak Force Linear Electric Actuator High Positioning Accuracy Voice Coil Actuator
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001-2000 |
| Model Number | VCAS Series |
| Minimum Order Quantity | ≥1 |
| Price | $125 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | General 5-7 days delivery, fast 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Linear Motor Actuator | Power Supply | DC |
|---|---|---|---|
| Voltage | 13V | Peak Force | 6.1N |
| Speed | Hight | Current | 4.8A |
| Product Model | VCAS0006-0030-00A | Stroke | 3mm |
| Highlight | 2.1N Peak Force Linear Electric Actuator,Linear Electric Actuator 0.1mm Positioning Accuracy,2.1N Peak Force Voice Coil Actuator |
||
Product Description
Linear Electric Actuator with 0.1mm Positioning Accuracy and 2.1N Peak Force
Product Description:
The VCAS series Rectangular Actuators have a lower force per weight than the Cylindrical Actuators.But they also have a much longer strokes Forces range up to 1000N and 250mm.The VCAS series Rectangular Actuator are the ideal solution for X-Y Axis movements and their major market is in the semiconductor and micro machine tool industries.
This Linear Motor Actuator Unit is a Linear Motor Actuator System designed for precision linear motion. This Linear Electro-Mechanical Actuator is totally enclosed and features a stroke length of 3mm, positioning accuracy of 0.1mm, and repeatability of 0.05mm. The Linear Motor Actuator is a reliable and cost-effective solution for applications requiring motion control and accuracy. This Enclosed Motor Actuator is designed for reliable and repeatable motion control in a wide range of industrial applications.
This Linear Motor Actuator Unit is a Linear Motor Actuator System designed for precision linear motion. This Linear Electro-Mechanical Actuator is totally enclosed and features a stroke length of 3mm, positioning accuracy of 0.1mm, and repeatability of 0.05mm. The Linear Motor Actuator is a reliable and cost-effective solution for applications requiring motion control and accuracy. This Enclosed Motor Actuator is designed for reliable and repeatable motion control in a wide range of industrial applications.
Features:
- Product Name: Linear Motor Actuator
- Current: 4.8A
- Weight: Low
- Protect Feature: Totally Enclosed
- Speed: Hight
- Noise Level: Low
- Keywords: Linear Motor Actuator Unit, Linear Electric Actuator, Linear Electric Motor Actuator
Technical Parameters:
| Parameter | Value |
|---|---|
| Name | Linear Motor Actuator |
| Voltage | 13V |
| Stroke Length | 3mm |
| Type | Rectangular Type Actuator |
| Speed | High |
| Weight | 18g |
| Protect Feature | Totally Enclosed |
| Peak Force | 6N |
| Positioning Accuracy | 0.1mm |
| Material | Aluminum Alloy |
| Type | Linear Electro-Mechanical Actuator, Linear Electric Mechanical System, Linear Electric Mechanical System, Linear Electric Motion Control System |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAS0002-0498-00A | 2.1 | 1.3 | 50 | 11.3 | 1.3 | 15 | 72 | 42.6 | 33 |
| VCAS0002-0747-00A | 2.1 | 1.3 | 74.7 | 11.3 | 1.3 | 15 | 100.5 | 42.6 | 37 |
| VCAS0006-0030-00A | 6.1 | 3.2 | 3 | 13.3 | 4.6 | 18.2 | 25.1 | 34.1 | 27 |
| VCAS0006-0099-00A | 6.1 | 3.2 | 10 | 13.7 | 4.6 | 18.2 | 33.5 | 34.1 | 26.9 |

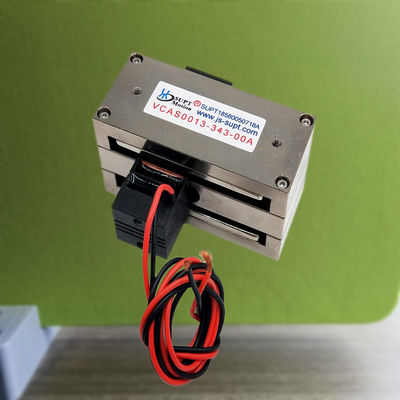

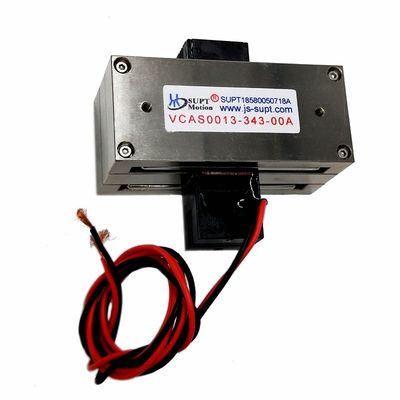

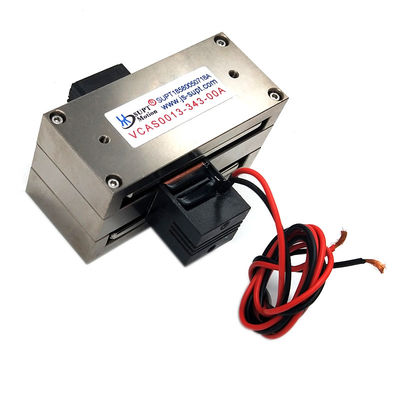

| VCAS0013-0343-00A | 13 | 8 | 34.3 | 12.6 | 5.8 | 40 | 68.3 | 60 | 34.8 |
| VCAS0065-1000-00A | 65 | 22.4 | 100 | 28.7 | 9.7 | 135 | 170 | 59.6 | 81.9 |
Applications:
The main application of a voice coil motor:
1.Semiconductor industry:Writting,cutting,drilling,transportation systems,welding,robotics.
2.Valve operation in the field:Type metering valves,pressure test systems,pneumatic valve chemistry injection system.
3.Micro machine industry:Feed systems,micro drilling,precision stamping.
4.Vibration system:Shaking table,vibration platform.
5.Medical filed:Micro-injection system,respiratory equipment,testing equipment.
6.Aviation Technology:Flight control system,pilot feedback system.
7.Commercial use field:Computer cooling pump miniature camera auto focus system.
8.Automation industry:Laser equipment,dispenser,test equipment,textile machinery.
