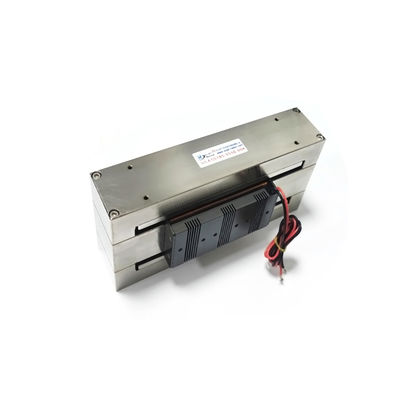

Stroke Length 75mm Linear Motor Actuator Aluminum Alloy Linear Voice Coil Motor
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001-2000 |
| Model Number | VCAS Series |
| Minimum Order Quantity | ≥1 |
| Price | $125 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | General 5-7 days delivery, fast 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Current | 4A | Weight | Low |
|---|---|---|---|
| Stroke Length | 75mm | Power Supply | DC |
| Peak Force | 2.1N | Positioning Accuracy | High |
| Material | Aluminum Alloy | Product Model | VCAS0002-0747-00A |
| Voltage | 11V | ||
| Highlight | Stroke Length 50mm Linear Motor Actuator,Linear Motor Actuator Aluminum Alloy,2A Aluminum Alloy Linear Voice Coil Motor |
||
Product Description
Aluminum Alloy Linear Motor Actuator Stroke Length 50mm High Frequency Response
Product Description:
The Linear Motor Actuator is an advanced linear electro-mechanical actuator system designed to provide a high voltage, high speed linear electric motor system for applications requiring precise positioning accuracy and protection features. This linear motor actuator unit features a voltage of 11V, a high speed motor, and a positioning accuracy of 0.1mm.
The Linear Motor Actuator is a reliable and versatile linear motor system featuring a totally enclosed protection feature. This ensures that the actuator is well protected from external environmental hazards while providing superior performance. It is the perfect solution for applications requiring precise positioning accuracy and protection from environmental hazards.
The VCAS series Rectangular Actuators have a lower force per weight than the Cylindrical Actuators.But they also have a much longer strokes Forces range up to 1000N and 250mm.The VCAS series Rectangular Actuator are the ideal solution for X-Y Axis movements and their major market is in the semiconductor and micro machine tool industries.
Features:
- Product Name: Linear Motor Actuator
- Name: Linear Motor Actuator
- Material: Aluminum Alloy
- Repeatability: 0.05mm
- Positioning Accuracy: High
- Linear Motor Drive System
- Linear Electric Actuator
- Linear Electric Mechanical System
Technical Parameters:
| Product Attribute | Description |
|---|---|
| Type | Rectangular Type Actuator |
| Noise Level | 50dB |
| Voltage | 11V |
| Current | 4A |
| Speed | Hight |
| Protect Feature | Totally Enclosed |
| Repeatability | 0.05mm |
| Material | Aluminum Alloy |
| Total Stroke | 75mm |
| Peak Force | 2.1N |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAS0002-0498-00A | 2.1 | 1.3 | 50 | 11.3 | 1.3 | 15 | 72 | 42.6 | 33 |
| VCAS0002-0747-00A | 2.1 | 1.3 | 74.7 | 11.3 | 1.3 | 15 | 100.5 | 42.6 | 37 |
| VCAS0006-0030-00A | 6.1 | 3.2 | 3 | 13.3 | 4.6 | 18.2 | 25.1 | 34.1 | 27 |
| VCAS0006-0099-00A | 6.1 | 3.2 | 10 | 13.7 | 4.6 | 18.2 | 33.5 | 34.1 | 26.9 |

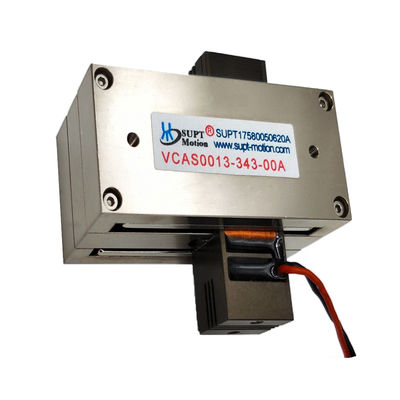

| VCAS0013-0343-00A | 13 | 8 | 34.3 | 12.6 | 5.8 | 40 | 68.3 | 60 | 34.8 |
| VCAS0065-1000-00A | 65 | 22.4 | 100 | 28.7 | 9.7 | 135 | 170 | 59.6 | 81.9 |
Applications:
The SUPT MOTION VCAS Series is a linear electric motor actuator unit, a linear electric actuator and a linear motor actuator designed and manufactured by SUPT MOTION in Jiangsu, China and is certified by ISO9001-2000. The minimum order quantity is ≥1 and the price is $125. It comes with carton packaging and delivery time is general 5-7 days delivery, fast 3-5 days, bulk to be negotiated. The payment terms are T/T, and the supply ability is available on request. The repeatability of the actuator is 0.05mm, the current is 4A and it is a rectangular type actuator with a totally enclosed protect feature with a stroke length of 75mm.
Rectangular Actuator are the ideal solution for X-Y Axis movements and their major market is in the semiconductor and micro machine tool industries.
