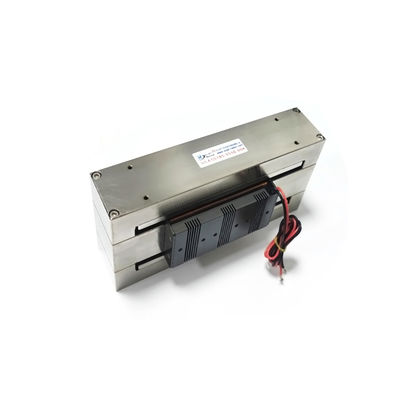

Rectangular Type Linear Actuator Motor 11V Low Weight Voice Coil Linear Actuator
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001-2000 |
| Model Number | VCAS Series |
| Minimum Order Quantity | ≥1 |
| Price | $125 |
| Packaging Details | Carton sealed packing etc. |
| Delivery Time | General 5-7 days delivery, fast 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Noise Level | Low | Name | Linear Motor Actuator |
|---|---|---|---|
| Stroke Length | 50mm | Protect Feature | Totally Enclosed |
| Weight | 16g | Voltage | 11V |
| Power Supply | DC | Material | Aluminum Alloy |
| Product Model | VCAS0002-0498-00A | ||
| Highlight | Totally Enclosed Linear Actuator Motor 11V,11V Voice Coil Linear Actuator,Low Weight Voice Coil Linear Actuator |
||
Product Description
High-Precision 11V Low Weight Totally Enclosed Linear Motor Actuator
Product Description:
Linear Motor Actuator
The Linear Motor Actuator Unit is a high performance linear motor actuator designed for applications requiring precise, reliable and repeatable linear motion. This rectangular actuator has a lightweight design. The actuator is equipped with a linear motor for quiet, low noise operation. The Linear Motor Actuator Unit is the ideal solution for applications requiring compact, lightweight, and reliable linear motion.
The VCAS series Rectangular Actuators have a lower force per weight than the Cylindrical Actuators.But they also have a much longer strokes Forces range up to 1000N and 250mm.The VCAS series Rectangular Actuator are the ideal solution for X-Y Axis movements and their major market is in the semiconductor and micro machine tool industries.
Features:
- Linear Motor Drive System: Low Weight, Low Noise Level, Aluminum Alloy Material
- Linear Electric Motor Actuator: High Speed, 2.1N Peak Force
- Linear Motor Actuator Unit: Low Weight, Low Noise Level, Aluminum Alloy Material, High Speed, 2.1N Peak Force
Technical Parameters:
| Name | Linear Motor Actuator |
|---|---|
| Voltage | 11V |
| Speed | High |
| Positioning Accuracy | High |
| Protect Feature | Totally Enclosed |
| Stroke | 50mm |
| Type | Rectangular Type Actuator |
| Peak force | 2.1N |
| Weight | 16g |
| Power Supply | DC |

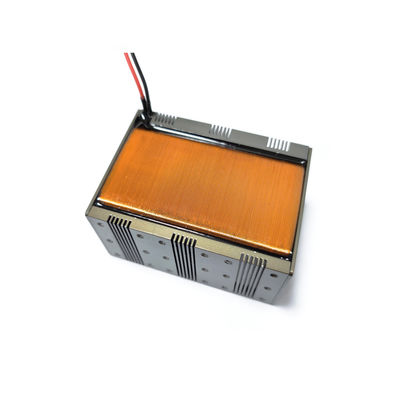

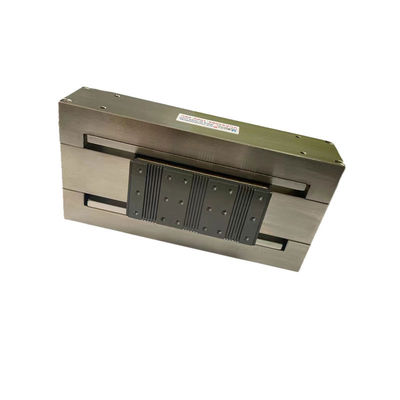

The VCAS series of Rectangular Voice Coil Motor
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAS0002-0498-00A | 2.1 | 1.3 | 50 | 11.3 | 1.3 | 15 | 72 | 42.6 | 33 |
| VCAS0002-0747-00A | 2.1 | 1.3 | 74.7 | 11.3 | 1.3 | 15 | 100.5 | 42.6 | 37 |
| VCAS0006-0030-00A | 6.1 | 3.2 | 3 | 13.3 | 4.6 | 18.2 | 25.1 | 34.1 | 27 |
| VCAS0006-0099-00A | 6.1 | 3.2 | 10 | 13.7 | 4.6 | 18.2 | 33.5 | 34.1 | 26.9 |
| VCAS0013-0343-00A | 13 | 8 | 34.3 | 12.6 | 5.8 | 40 | 68.3 | 60 | 34.8 |
| VCAS0065-1000-00A | 65 | 22.4 | 100 | 28.7 | 9.7 | 135 | 170 | 59.6 | 81.9 |
Applications:
The main application of a voice coil motor:
1.Semiconductor industry:Writting,cutting,drilling,transportation systems,welding,robotics.
2.Valve operation in the field:Type metering valves,pressure test systems,pneumatic valve chemistry injection system.
3.Micro machine industry:Feed systems,micro drilling,precision stamping.
4.Vibration system:Shaking table,vibration platform.
5.Medical filed:Micro-injection system,respiratory equipment,testing equipment.
6.Aviation Technology:Flight control system,pilot feedback system.
7.Commercial use field:Computer cooling pump miniature camera auto focus system.
8.Automation industry:Laser equipment,dispenser,test equipment,textile machinery.
