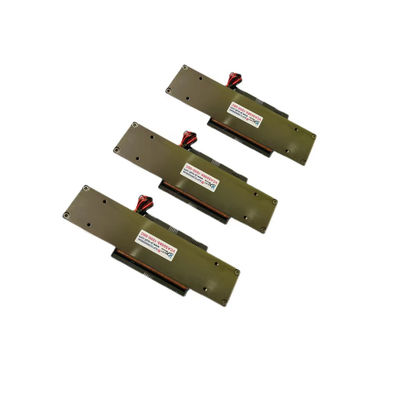

High Precision 0.05mm Voice Coil Motor Dc Linear Actuator For Industrial Automation
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001-2000 |
| Model Number | VCAS Series |
| Minimum Order Quantity | ≥1 |
| Price | $125 |
| Packaging Details | Carton sealed packing etc |
| Delivery Time | General 5-7 days delivery, fast 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Protect Feature | Totally Enclosed | Positioning Accuracy | 0.1mm |
|---|---|---|---|
| Name | Linear Motor Actuator | Peak Force | 2.1N |
| Power Supply | DC | Voltage | 11V |
| Type | Rectangular Type Actuator | Product Model | VCAS0002-0498-00A |
| Highlight | High Precision 0.05mm Voice Coil Motor,High Precision 0.05mm Dc Linear Actuator,Industrial Automation Voice Coil Motor vcm |
||
Product Description
High Precision 0.05mm Linear Motor Actuator for Industrial Automation
Product Description:
Linear Motor Actuator
The Linear Motor Actuator is a rectangular type actuator that utilizes a linear electric motor system to accurately and precisely position components with a positioning accuracy of 0.1mm. It has a peak force of 2.1N and a repeatability of 0.05mm, making it an ideal choice for applications requiring precise and controlled linear movements.
The Linear Motor Actuator is designed to provide high-precision control and reliable performance, and is suitable for many applications, such as machine tools, automation systems, and robotic systems. It features a highly efficient and reliable linear electric motor system, which is capable of providing smooth, precise, and repeatable motion for a variety of tasks.
The Linear Motor Actuator is designed to be easy to install and maintain, with minimal maintenance required. It has a robust and durable construction, and is able to withstand harsh working environments. With its high-precision control and reliable performance, the Linear Motor Actuator is an excellent choice for those looking for a reliable, precise linear electric motor system.
Features:
- Product Name: Linear Motor Actuator
- Power Supply: DC
- Material: Aluminum Alloy
- Peak force: 2.1N
- Stroke Length: 50mm
- Positioning Accuracy: 0.1mm
Technical Parameters:
| Attribute | Specification |
|---|---|
| Positioning Accuracy | 0.1mm |
| Material | Aluminum Alloy |
| Noise Level | Low |
| Voltage | 11V |
| Current | 2A |
| Speed | High |
| Power Supply | DC |
| Peak Force | 2.1N |
| Stroke Length | 50mm |
| Weight | Low |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAS0002-0498-00A | 2.1 | 1.3 | 50 | 11.3 | 1.3 | 15 | 72 | 42.6 | 33 |
| VCAS0002-0747-00A | 2.1 | 1.3 | 74.7 | 11.3 | 1.3 | 15 | 100.5 | 42.6 | 37 |
| VCAS0006-0030-00A | 6.1 | 3.2 | 3 | 13.3 | 4.6 | 18.2 | 25.1 | 34.1 | 27 |
| VCAS0006-0099-00A | 6.1 | 3.2 | 10 | 13.7 | 4.6 | 18.2 | 33.5 | 34.1 | 26.9 |
| VCAS0013-0343-00A | 13 | 8 | 34.3 | 12.6 | 5.8 | 40 | 68.3 | 60 | 34.8 |

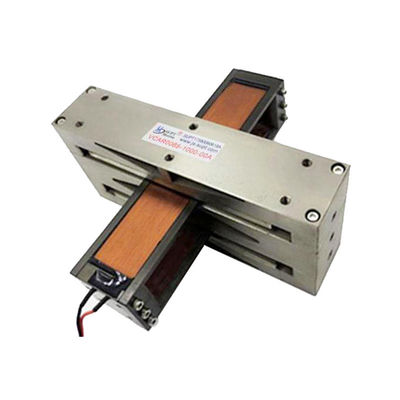

| VCAS0065-1000-00A | 65 | 22.4 | 100 | 28.7 | 9.7 | 135 | 170 | 59.6 | 81.9 |
Applications:
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding, robotics. |
| 2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment, dispenser, test equipment, textile machinery. |
