Aluminum Alloy Linear Actuator High Positioning Accuracy Rectangular Type Actuator
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001-2000 |
| Model Number | VCAS Series |
| Minimum Order Quantity | ≥1 |
| Price | $125 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | General 5-7 days delivery, fast 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Positioning Accuracy | 0.1mm | Noise Level | Low |
|---|---|---|---|
| Type | Rectangular Type Actuator | Protect Feature | Totally Enclosed |
| Name | Linear Motor Actuator | Repeatability | 0.05mm |
| Voltage | 11V | Product Model | VCAS0002-0498-00A |
| Peak Force | 2.1N | ||
| Highlight | Aluminum Alloy Linear Actuator Motor,Linear Actuator Motor Positioning Accuracy 0.1mm,Positioning Accuracy 0.1mm Linear Electric Motor |
||
Product Description
High-Precision High Speed Aluminum Alloy Linear Actuator Motor
Product Description:
The Linear Motor Actuator Unit is an advanced linear electro-mechanical system designed to provide linear motion in a reliable and efficient manner. This unit features a linear electric motor and a linear actuator that can be powered with both DC power supply of up to 2A of current and 11V of voltage. It offers a low and quiet noise. With the Linear Motor Actuator Unit, users can enjoy a more efficient, precise, and quiet linear electro-mechanical system. This advanced Linear Electro-Mechanical Actuator is perfect for a range of applications and industries, and is a great choice for anyone who needs reliable, precise, and efficient linear motion.

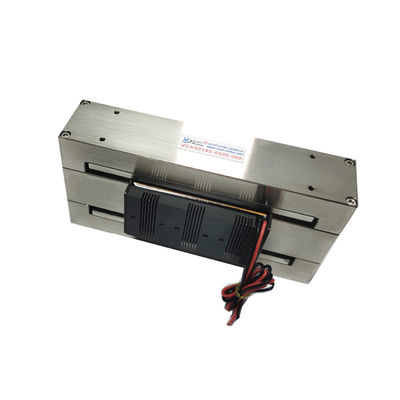

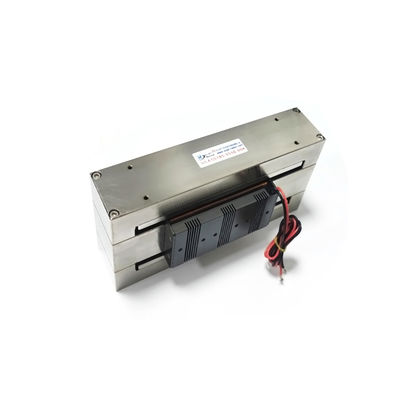

The VCAS series Rectangular Actuators have a lower force per weight than the Cylindrical Actuators.But they also have a much longer strokes Forces range up to 1000N and 250mm.The VCAS series Rectangular Actuator are the ideal solution for X-Y Axis movements and their major market is in the semiconductor and micro machine tool industries.
Features:
- Product Name: Linear Motor Actuator
- Type: Rectangular Type Actuator
- Linear Motor Drive System
- Linear Actuator Motor
- Linear Electric Mechanical System
- High Repeatability: 0.05mm
- Voltage: 11V
- Speed: High
Technical Parameters:
| Name | Linear Motor Actuator |
|---|---|
| Current | 2A |
| Voltage | 11V |
| Peak Force | 2.1N |
| Stroke Length | 50mm |
| Positioning Accuracy | 0.1mm |
| Power Supply | DC |
| Protect Feature | Totally Enclosed |
| Repeatability | 0.05mm |
| Noise Level | Low |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAS0002-0498-00A | 2.1 | 1.3 | 50 | 11.3 | 1.3 | 15 | 72 | 42.6 | 33 |
| VCAS0002-0747-00A | 2.1 | 1.3 | 74.7 | 11.3 | 1.3 | 15 | 100.5 | 42.6 | 37 |
| VCAS0006-0030-00A | 6.1 | 3.2 | 3 | 13.3 | 4.6 | 18.2 | 25.1 | 34.1 | 27 |
| VCAS0006-0099-00A | 6.1 | 3.2 | 10 | 13.7 | 4.6 | 18.2 | 33.5 | 34.1 | 26.9 |

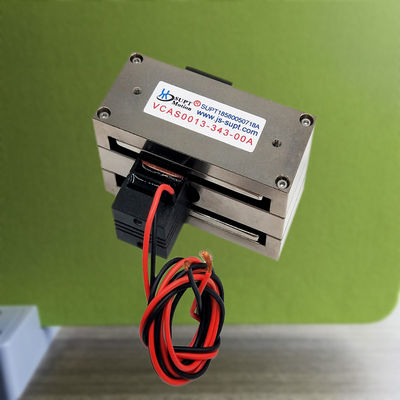

| VCAS0013-0343-00A | 13 | 8 | 34.3 | 12.6 | 5.8 | 40 | 68.3 | 60 | 34.8 |
| VCAS0065-1000-00A | 65 | 22.4 | 100 | 28.7 | 9.7 | 135 | 170 | 59.6 | 81.9 |
Applications:
The main application of a voice coil motor:
1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding, robotics.
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system.
3.Micro Machine industry:Feed systems, micro drilling, precision stamping.
4.Vibration System:Shaking table, vibration platform.
5.Medical field:Micro-injection system, respiratory equipment, testing equipment.
6.Aviation Technology:Flight control system, pilot feedback system.
7.Commercial use field:Computer cooling pump miniature camera auto focus system.
8.Automation industry:Laser equipment, dispenser, test equipment, textile machinery.
