Rectangular Type Voice Coil Motor Low Noise Level Linear Electric Motor
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001-2000 |
| Model Number | VCAS Series |
| Minimum Order Quantity | ≥1 |
| Price | $130 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | General 5-7 days delivery, fast 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Stroke Length | 34.3mm | Weight | 40g |
|---|---|---|---|
| Speed | Hight | Current | 4.8A |
| Protect Feature | Totally Enclosed | Noise Level | Low |
| Product Model | VCAS0013-0343-00A | Peak Force | 13N |
| Highlight | Totally Enclosed Linear Electric Motor 2A,Linear Electric Motor 50dB Noise Level,50dB Noise Level Voice Coil Motor |
||
Product Description
Totally Enclosed Linear Electric Motor System with 50dB Noise Level 0.1mm Positioning Accuracy
Product Description:

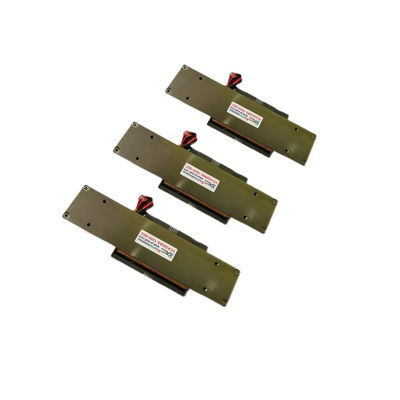

The VCAS series Rectangular Actuators have a lower force per weight than the Cylindrical Actuators.But they also have a much longer strokes Forces range up to 1000N and 250mm.
The Linear Motor Actuator is a reliable linear motor drive system with a low weight and noise level. It is made of aluminum alloy for durable performance and long-term use. The system features a peak force of 13N and a current of 4.8A. It is designed to provide a linear electric mechanical system and a linear electric motor system. This system is ideal for applications requiring high precision and accuracy. With its low noise, it is an ideal choice for a variety of industrial and commercial applications.
Features:
- Product Name: Linear Motor Actuator
- Protection Feature: Totally Enclosed
- Speed: High
- Positioning Accuracy: High
- Linear Electric Mechanical System
- Linear Motor Actuator Unit
Technical Parameters:
| Name | Technical Parameters |
|---|---|
| Stroke Length | 34mm |
| Current | 4.8A |
| Power Supply | DC |
| Repeatability | 0.05mm |
| Voltage | 12.6V |
| Peak force | 13N |
| Type | Rectangular Type Actuator |
| Speed | High |
| Weight | Low |
| Noise Level | 50dB |
| Name | Linear Actuator Motor |
| Name | Linear Electric Mechanical System |
| Name | Linear Electric Motor Drive |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAS0002-0498-00A | 2.1 | 1.3 | 50 | 11.3 | 1.3 | 15 | 72 | 42.6 | 33 |
| VCAS0002-0747-00A | 2.1 | 1.3 | 74.7 | 11.3 | 1.3 | 15 | 100.5 | 42.6 | 37 |
| VCAS0006-0030-00A | 6.1 | 3.2 | 3 | 13.3 | 4.6 | 18.2 | 25.1 | 34.1 | 27 |
| VCAS0006-0099-00A | 6.1 | 3.2 | 10 | 13.7 | 4.6 | 18.2 | 33.5 | 34.1 | 26.9 |

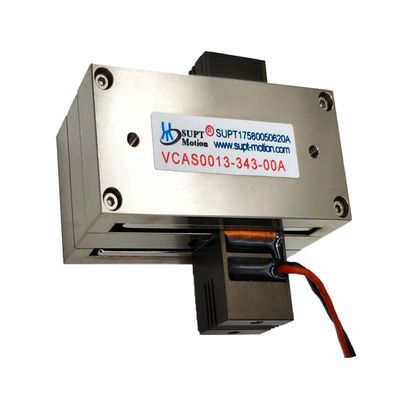

| VCAS0013-0343-00A | 13 | 8 | 34.3 | 12.6 | 5.8 | 40 | 68.3 | 60 | 34.8 |
| VCAS0065-1000-00A | 65 | 22.4 | 100 | 28.7 | 9.7 | 135 | 170 | 59.6 | 81.9 |
Applications:
The SUPT MOTION VCAS Series Linear Motor Actuator is an advanced linear electro-mechanical actuator drive system. This product is manufactured by SUPT MOTION, which has been certified by ISO9001-2000. It is designed with a low weight, a stroke length of 34.3mm, and a repeatability of 0.05mm. This linear motor system has a minimum order quantity of 1, and its price is $125. It also has a maximum current of 4.8A. In addition, SUPT MOTION provides customers with customized carton packaging and a delivery time of general 5-7 days delivery, fast 3-5 days, bulk to be negotiated. Customers can make payments by T/T and the company ensures a reliable supply ability for the product.
Rectangular Actuator are the ideal solution for X-Y Axis movements and their major market is in the semiconductor and micro machine tool industries.
