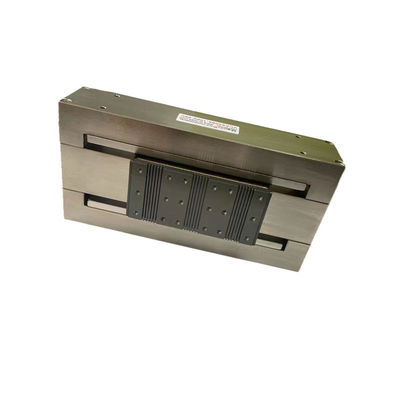

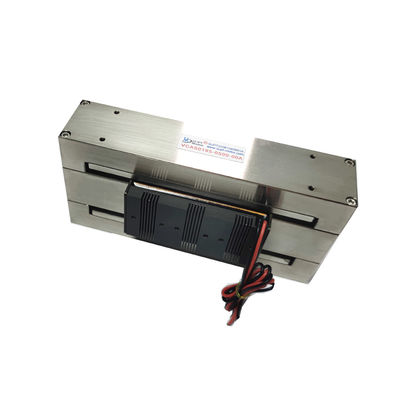

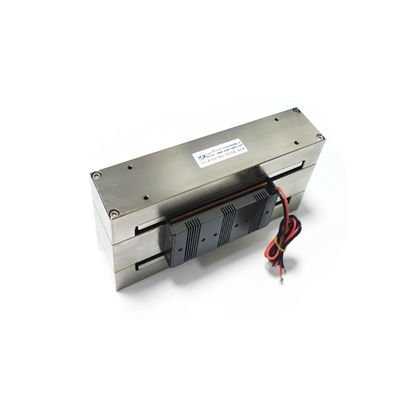

4.9A Current Linear Voice Coil Motor High Acceleration Compact Linear Actuator
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001-2000 |
| Model Number | VCAS Series |
| Minimum Order Quantity | ≥1 |
| Price | $145 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | General 5-7 days delivery, fast 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Peak Force | 65N | Noise Level | Low |
|---|---|---|---|
| Type | Rectangular Type Actuator | Weight | 135g |
| Power Supply | DC | Current | 4.9A |
| Stroke Length | 100mm | Product Model | VCAS0065-1000-00A |
| Highlight | 2A Current Linear Voice Coil Motor,Linear Voice Coil Motor 0.05mm Repeatability,0.05mm Repeatability Compact Linear Actuator |
||
Product Description
Linear Motor Actuator - 2A Current - 0.05mm Repeatability - Operating Temperature from -20℃ to +60℃
Product Description:
The Linear Motor Actuator Unit is a linear electro-mechanical actuator system that is designed to provide high-speed, high-force linear electric motor motion. It is made from durable aluminum alloy materials and is totally enclosed for ultimate protection. With a voltage of 29V, it delivers a peak force of 65N to ensure reliable performance. This Linear Motor Actuator Unit is the ideal choice for any linear electric motor system that requires high-speed and high-force motion.
Features:
- Product Name: Linear Motor Actuator
- Linear Motor Drive System: Linear Electric Motor Drive
- Positioning Accuracy: 0.1mm
- Protect Feature: Totally Enclosed
- Speed:High
- Weight: 135g
- Peak force: 65N
- Linear Motor Actuator Unit: High torque and accuracy
Technical Parameters:
| Parameter | Value |
|---|---|
| System Type | Linear Electric Motor System, Linear Motor Drive System, Linear Electro-Mechanical Actuator |
| Peak Force | 65N |
| Protect Feature | Totally Enclosed |
| Power Supply | DC |
| Repeatability | 0.05mm |
| Voltage | 29V |
| Type | Rectangular Type Actuator |
| Speed | High |
| Weight | Low |
| Current | 4.9A |
| Positioning Accuracy | 0.1mm |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAS0002-0498-00A | 2.1 | 1.3 | 50 | 11.3 | 1.3 | 15 | 72 | 42.6 | 33 |
| VCAS0002-0747-00A | 2.1 | 1.3 | 74.7 | 11.3 | 1.3 | 15 | 100.5 | 42.6 | 37 |
| VCAS0006-0030-00A | 6.1 | 3.2 | 3 | 13.3 | 4.6 | 18.2 | 25.1 | 34.1 | 27 |
| VCAS0006-0099-00A | 6.1 | 3.2 | 10 | 13.7 | 4.6 | 18.2 | 33.5 | 34.1 | 26.9 |
| VCAS0013-0343-00A | 13 | 8 | 34.3 | 12.6 | 5.8 | 40 | 68.3 | 60 | 34.8 |
| VCAS0065-1000-00A | 65 | 22.4 | 100 | 28.7 | 9.7 | 135 | 170 | 59.6 | 81.9 |
Applications:
The Linear Actuator Motor is widely used in a variety of applications, including medical equipment, industrial automation systems, aerospace, automotive, and other fields. It is an ideal choice for customers who need reliable and accurate linear motion control. With its high-performance linear motor actuator system, it is suitable for applications that require a high degree of accuracy and precise control. Its linear electric motor actuator supports a wide range of operation, ranging from high-speed operations to low speed applications.
