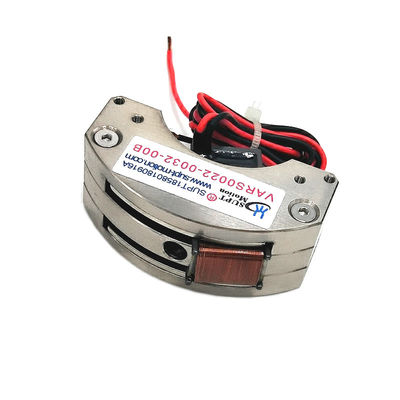

Low Noise Rotary Voice Coil 32° Stroke Rotating Motor VCM 0.22N.M Peak Torque
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001-2000 |
| Model Number | VARS0022-032-00A |
| Minimum Order Quantity | ≥1 |
| Price | $112 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Speed | High Speed | Continous Torque | 0.12N-m |
|---|---|---|---|
| Warranty | 3months-1 Year | Size | 50*50*50mm |
| Accuracy | 0.05mm | Name | Rotary Voice Coil Motor |
| Noise | Low | Voltage | 15.5V |
| Highlight | Low Noise Rotary Voice Coil 500rpm,Rotating Motor VCM 0.22N.M,500rpm Rotating Motor VCM |
||
Product Description
Low Noise 500rpm Rotating VCM 0.22N.m Peak Torque 50*50*50mm Size
Product Description:
Rotary Voice Coil Motor (VCM) is a type of curved voice coil motor with high speed and peak torque. It has a rotating design, providing a peak torque of 0.22N.m. Built with superior materials, this motor has excellent durability and can last for more than 10000 hours, even when powered by 15.5V. The rotating VCM is a perfect solution for a broad range of applications that require precise, fast and reliable controlling.
The Rotary Actuators have taken the technology of the rectangular linear actuator and bent therm to provide a high resolution limited angle positioning system.Typical stroke angles exceed 100 degrees and torques to 50 N-mThe Rotary Actuators are typically utilized as mirror position Actuators for laser technologies,rotary valve and damping Actuators, rotary positioning systems and flight control Actuators, Rotary Actuators markets include semiconductor,automotive,industrial and aerospace industries.Features:
- Product Name: Rotary Voice Coil Motor
- Size: 50*50*50mm
- Material: Aluminum Alloy
- Accuracy: 0.05mm
- Noise: Low
- Features: Rotational VCM, Rotating Voice Coil, Curved Voice Coil Motor
Technical Parameters:
| Parameter | Value |
|---|---|
| Type | Rotary Voice Coil Motor |
| Power | 7W |
| Voltage | 15.5V |
| Speed | High |
| Size | 50*50*50mm |
| Peak Torque | 0.22N.m |
| Continuous Torque | 0.12N-m |
| Accuracy | 0.05mm |
| Life | ≥10000h |
| Warranty | 3months-1 Year |
| Product Model | Peak torque (N-m) |
Continuos torque at 25℃(N-m) |
Total Stroke degrees ( mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil(g) | Length (mm) |
Width (mm) |
Height (mm) |

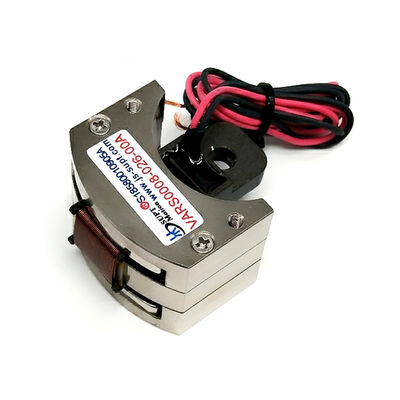

| VARS0008-026-00A | 0.08 | 0.05 | 26 | 6.4 | 0.05 | 11.7 | 35 | 39.8 | 36.1 |
| VARS0017-090-00A | 0.17 | 0.1 | 90 | 11.1 | 0.1 | 17.8 | 70 | 41.5 | 39 |
| VARS0022-032-00A | 0.22 | 0.12 | 32 | 15.5 | 0.16 | 21.5 | 60 | 60 | 36 |
| VARS0042-040-00A | 0.42 | 0.38 | 40 | 3.5 | 0.12 | 38 | 82 | 53.6 | 30.3 |
| VARS0077-020-00A | 0.77 | 0.63 | 20 | 6.7 | 0.24 | 66 | 75 | 50 | 30 |
| VARS0084-030-00A | 0.84 | 0.6 | 30 | 6.3 | 0.2 | 50.4 | 75 | 48.9 | 30.6 |
| VARS0120-020-00A | 1.2 | 0.5 | 20 | 8.4 | 0.67 | 65 | 81 | 73.4 | 32 |
| VARS0350-060-00A | 3.5 | 1.14 | 60 | 25.8 | 0.52 | 115 | 115 | 65 | 54.5 |
| VARS0706-014-00A | 7.1 | 2.1 | 14 | 52.4 | 1.03 | 225.5 | 115 | 65 | 54.5 |
| VARS4520-030-00A | 45.2 | 19 | 30 | 71.5 | 4.3 | 1350 | ￠240 | 78 |
Applications:
Rotary Voice Coil Motor from SUPT MOTION: High Accuracy, High Speed and Low Voltage
SUPT MOTION's Rotary Voice Coil Motor (VCM) model VARS0022-032-00A is made of high-quality aluminum alloy and certified by ISO9001-2000. It is a great choice for applications requiring high accuracy and speed with low voltage. The VCM has a rotation speed of 500rpm with an accuracy of 0.05mm and a voltage of 15.5V. With a minimum order quantity of 1 and a price of $112, the VCM will be packaged in a carton and delivered within 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated. Payment terms include T/T. Contact SUPT MOTION for further information about their Rotary Voice Coil Motor.
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding, robotics. |
| 2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment, dispenser, test equipment, textile machinery. |
