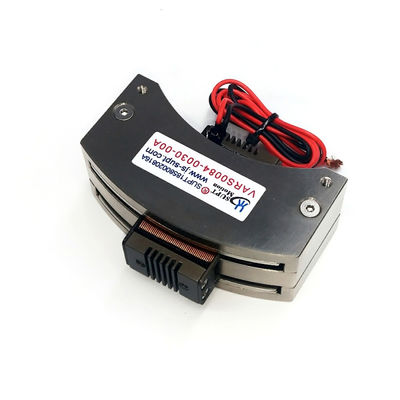

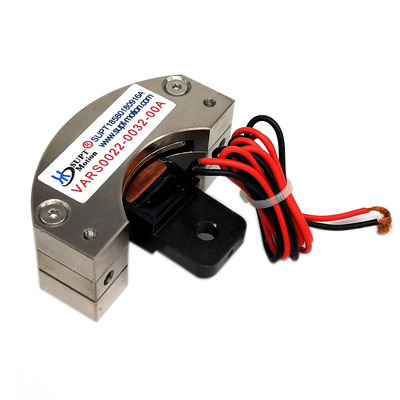

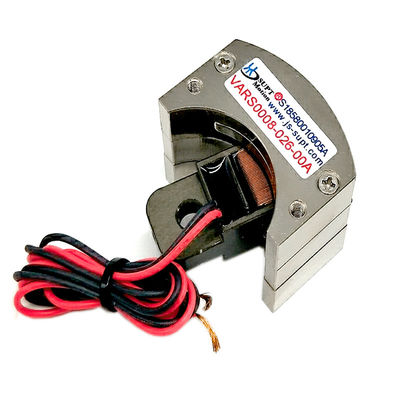

Rotary Voice Coil Motors High-Speed Peak Torque 0.22N.M For Semiconductor Industry

Product Description:

The Rotary Actuators have taken the technology of the rectangular linear actuator and bent therm to provide a high resolution limited angle positioning system.Typical stroke angles exceed 100 degrees and torques to 50 N-m.
Rotary Voice Coil Motor (VCM) is an innovative motor that offers continuous torque of up to 0.12N-m, low noise and high reliability. Its model number is VARS0022-032-00A, and it is specifically designed with rotational technology for superior performance. It is an ideal choice for applications that require a rotational motor with superior and reliable performance. It also comes with a warranty of 3 months to 1 year, depending on the application. With Rotary Voice Coil Motor, you can be sure of high-quality performance and maximum efficiency.

Features:

• Product Name: Rotary Voice Coil Motor
• Life: ≥10000h
• Material: Aluminum Alloy
• Peak Torque: 0.22N.m
• Accuracy: 0.05mm
• Model Number: VARS0022-032-00A
• Highlights: Rotational Voice Coil, Rotary Voice Coil Motor

Technical Parameters:

Applications:

The Rotary Actuators are typically utilized as mirror position Actuators for laser technologies,rotary valve and damping Actuators, rotary positioning systems and flight control Actuators, Rotary Actuators markets include semiconductor,automotive,industrial and aerospace industries.
SUPT MOTION is a professional manufacturer of Rotary VCM, Rotational Voice Coil, Rotary voice coil Actuator (VCM) with VARS Series from Jiangsu, China, which is certified with ISO9001-2000. The minimum order quantity is ≥1 and the price is $112 per unit. The packaging is carton packaging and the delivery time is from sample order 2-3 days,other one work days, bulk to be negotiated. Besides, the payment terms are T/T, and the supply ability is on interview. The continous torque is 0.12N-m, the power is 2W, the voltage is 15.5V and the warranty is from 3months to 1 year. The speed is Variable Speed.
