0.22N.M Peak Torque Rotary Voice Coil 0.05mm Accuracy Voice Coil Actuator
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001-2000 |
| Model Number | VARS Series |
| Minimum Order Quantity | ≥1 |
| Price | $112 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Continous Torque | 0.12N-m | Accuracy | 0.05mm |
|---|---|---|---|
| Noise | Low | Name | Rotary Voice Coil Motor |
| Speed | 500rpm | Size | 50*50*50mm |
| Model Number | VARS0022-032-00A | Material | Aluminum Alloy |
| Highlight | 0.22N.M Peak Torque Rotary Voice Coil,Rotary Voice Coil 0.05mm Accuracy,0.05mm Accuracy Rotary Voice Coil Actuator |
||
Product Description
0.22N.m Peak Torque Rotary Voice Coil Motor for 0.05mm Accuracy
Product Description:
The Rotary Voice Coil Motor is a rotary voice coil actuator that provides precise, fast, and repeatable positioning. It is designed to deliver highly accurate, reliable, and repeatable rotational motion in applications requiring accuracy and speed. This rotary voice coil motor has a voltage of 15.5V, a continuous torque of 0.12N-m, a size of 50*50*50mm, and a warranty of 3months-1 Year. It is ideal for precision rotational motion control applications, such as in robots, mechatronics, and medical equipment. This rotating voice coil motor is a compact, low-cost solution that offers high-precision control, fast response times, and high torque density. It is also suitable for applications requiring reliable and repeatable rotational motion. With its low profile, high torque, and excellent performance, the Rotary Voice Coil Motor is the best choice for a variety of rotational motion control applications.
Features:
- Product Name: Curved Voice Coil Motor
- Type: Micro Motor
- Life: ≥10000h
- Peak Torque: 0.22N.m
- Speed: Variable Speed
- Continous Torque: 0.12N-m
- Special Feature: Rotational Voice Coil, Rotating VCM
Technical Parameters:
| Parameter | Value |
|---|---|
| Rotary Voice Coil Motor(Rotating VCM, Curved Voice Coil Motor, Rotary VCM) | VARS0022-032-00A |
| Size | 50*50*50mm |
| Peak Torque | 0.22N.m |
| Material | Aluminum Alloy |
| Voltage | 15.5V |
| Type | Micro Motor |
| Warranty | 3months-1 Year |
| Noise | Low |
| Type | Rotary Motor |
| Speed | Variable Speed |
| Product Model | Peak torque (N-m) | Continuos torque at 25℃(N-m) | Total Stroke degrees ( mm) | Max Voltage (V) | Back EMF Constant (V/m/s) | Weight of the coil(g) | Length (mm) | Width (mm) | Height (mm) |

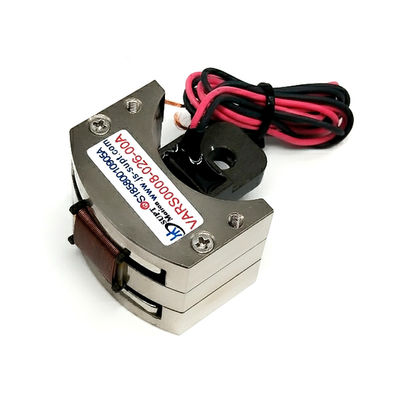

| VARS0008-026-00A | 0.08 | 0.05 | 26 | 6.4 | 0.05 | 11.7 | 35 | 39.8 | 36.1 |
| VARS0017-090-00A | 0.17 | 0.1 | 90 | 11.1 | 0.1 | 17.8 | 70 | 41.5 | 39 |
| VARS0022-032-00A | 0.22 | 0.12 | 32 | 15.5 | 0.16 | 21.5 | 60 | 60 | 36 |
| VARS0042-040-00A | 0.42 | 0.38 | 40 | 3.5 | 0.12 | 38 | 82 | 53.6 | 30.3 |
| VARS0077-020-00A | 0.77 | 0.63 | 20 | 6.7 | 0.24 | 66 | 75 | 50 | 30 |
| VARS0084-030-00A | 0.84 | 0.6 | 30 | 6.3 | 0.2 | 50.4 | 75 | 48.9 | 30.6 |
| VARS0120-020-00A | 1.2 | 0.5 | 20 | 8.4 | 0.67 | 65 | 81 | 73.4 | 32 |
| VARS0350-060-00A | 3.5 | 1.14 | 60 | 25.8 | 0.52 | 115 | 115 | 65 | 54.5 |

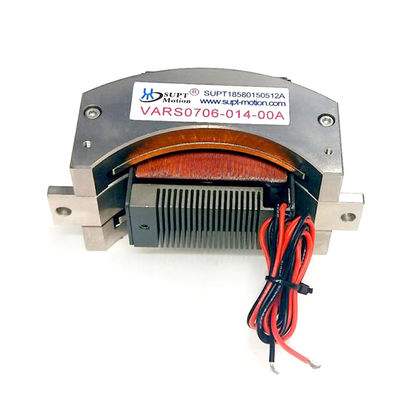

| VARS0706-014-00A | 7.1 | 2.1 | 14 | 52.4 | 1.03 | 225.5 | 115 | 65 | 54.5 |
| VARS4520-030-00A | 45.2 | 19 | 30 | 71.5 | 4.3 | 1350 | ￠240 | 78 |
Applications:
Rotary Voice Coil Motors from SUPT MOTION
SUPT MOTION's VARS Series Rotary Voice Coil Motor is an ISO9001-2000 certified curved voice coil actuator. It is available in minimum order quantities of ≥1 and is priced at $112. Packaging includes carton packaging and other options. Typical shipment is 5-7 days for 1-5 products, 3-5 days for samples, and negotiated delivery for bulk quantities. Payment method is T/T. This product has interview supply ability. Motor size is 50*50*50mm, low noise, small power. Accuracy is 0.05mm, life time ≥10000h.
Rotary actuators are commonly used as mirror position actuators for laser technology, rotary valves and damping actuators, rotary positioning systems and flight control actuators.Markets for rotary actuators include the semiconductor, automotive, industrial and aerospace industries.
