High Performance Rotary Voice Coil Motor Dynamic Coil Actuator For Semiconductor
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001-2000 |
| Model Number | VARS Series |
| Minimum Order Quantity | ≥1 |
| Price | $112 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | 2W | Voltage | 15.5V |
|---|---|---|---|
| Name | Rotary Voice Coil Motor | Accuracy | 0.05mm |
| Noise | Low | Continous Torque | 0.12N-m |
| Material | Aluminum Alloy | Type | Rotary Motor |
| Highlight | 50mm Rotary Voice Coil Motor,Rotary Voice Coil Motor 500rpm,2W Moving Coil Actuator |
||
Product Description
50mm*50mm*50mm Rotary Voice Coil Motor 500rpm
Product Description:
Rotary Voice Coil Motor (VCM) is a curved voice coil motor which is made of high-quality aluminum alloy, with model number VARS0022-032-00A. This motor is designed to provide maximum power and durability. It has a low noise level and a high speed of 500rpm. It is mainly used in robotics, medical, aerospace and other industrial applications. This rotary VCM is designed for long-term and reliable operation. Its high-quality components ensure smooth and reliable operation, making it a reliable choice for your applications. This motor is also very easy to install and maintain. It is a great choice for high-performance and reliable applications.
Features:
- Product Name: Rotary Voice Coil Motor
- Size: 50*50*50mm
- Type: Rotary Motor
- Accuracy: 0.05mm
- Material: Aluminum Alloy
- Noise: Low
- Keywords: Rotary Voice Coil Motor, Rotating VCM, Curved Voice Coil Motor
Technical Parameters:
| Property | Specification |
|---|---|
| Type | Rotary Voice Coil Motor |
| Life | ≥10000h |
| Material | Aluminum Alloy |
| Warranty | 3months-1 Year |
| Speed | 500rpm |
| Peak Torque | 0.22N.m |
| Noise | Low |
| Size | 50*50*50mm |
| Accuracy | 0.05mm |
| Voltage | 15.5V |
| Product Model | Peak torque (N-m) | Continuos torque at 25℃(N-m) | Total Stroke degrees ( mm) | Max Voltage (V) | Back EMF Constant (V/m/s) | Weight of the coil(g) | Length (mm) | Width (mm) | Height (mm) |

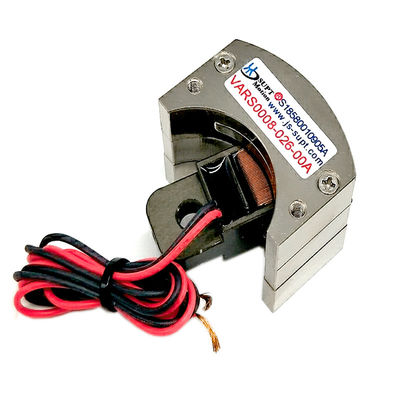

| VARS0008-026-00A | 0.08 | 0.05 | 26 | 6.4 | 0.05 | 11.7 | 35 | 39.8 | 36.1 |
| VARS0017-090-00A | 0.17 | 0.1 | 90 | 11.1 | 0.1 | 17.8 | 70 | 41.5 | 39 |

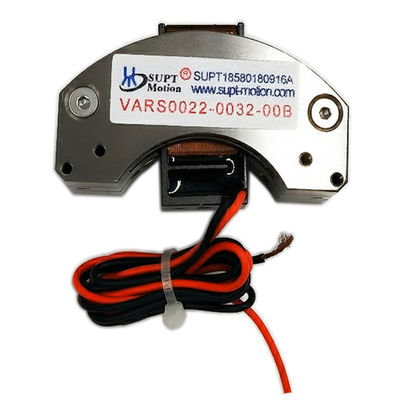

| VARS0022-032-00A | 0.22 | 0.12 | 32 | 15.5 | 0.16 | 21.5 | 60 | 60 | 36 |
| VARS0042-040-00A | 0.42 | 0.38 | 40 | 3.5 | 0.12 | 38 | 82 | 53.6 | 30.3 |
| VARS0077-020-00A | 0.77 | 0.63 | 20 | 6.7 | 0.24 | 66 | 75 | 50 | 30 |
| VARS0084-030-00A | 0.84 | 0.6 | 30 | 6.3 | 0.2 | 50.4 | 75 | 48.9 | 30.6 |

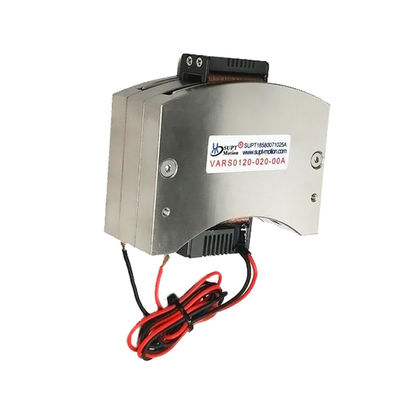

| VARS0120-020-00A | 1.2 | 0.5 | 20 | 8.4 | 0.67 | 65 | 81 | 73.4 | 32 |
| VARS0350-060-00A | 3.5 | 1.14 | 60 | 25.8 | 0.52 | 115 | 115 | 65 | 54.5 |
| VARS0706-014-00A | 7.1 | 2.1 | 14 | 52.4 | 1.03 | 225.5 | 115 | 65 | 54.5 |
| VARS4520-030-00A | 45.2 | 19 | 30 | 71.5 | 4.3 | 1350 | ￠240 | 78 |
Applications:
SUPT MOTION's Rotary Voice Coil Motor, model VARS Series, is manufactured in Jiangsu, China and is certified with ISO9001-2000. With a minimum order quantity of ≥1 and a price of $112, the motor comes with carton packaging and is delivered within 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated. Payment terms are available in T/T and the availability can be further discussed through an interview. The motor has a life of ≥10000h and comes with a warranty of 3months-1 year. It has a continuous torque of 0.12N-m and an accuracy of 0.05mm, with a speed of 500rpm.
The Rotary Actuators are typically utilized as mirror position Actuators for laser technologies,rotary valve and damping Actuators, rotary positioning systems and flight control Actuators, Rotary Actuators markets include semiconductor,automotive,industrial and aerospace industries.
