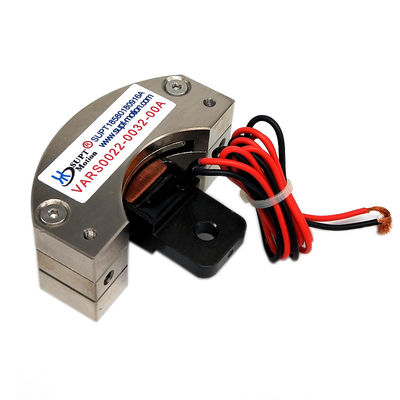

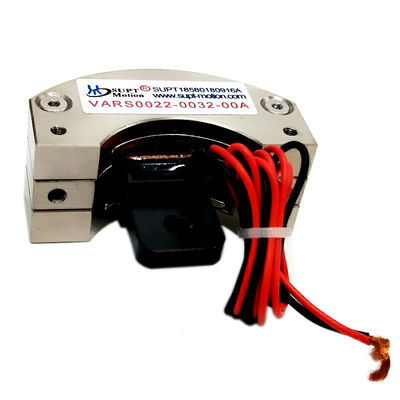

Low Noise Rotary Voice Coil Actuator Aluminum Alloy Rotary VCM Motor 0.12N-M
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001-2000 |
| Model Number | VARS0022-032-00A |
| Minimum Order Quantity | ≥1 |
| Price | $112 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1 Year | Size | 50*50*50mm |
|---|---|---|---|
| Peak Torque | 0.22N.m | Life | ≥10000h |
| Speed | High Speed | Continous Torque | 0.12N-m |
| Noise | Low | Voltage | 15.5V |
| Highlight | Low Noise Rotary Voice Coil Actuator,VCM Motor 0.12N-M,Aluminum Alloy Rotary VCM Motor |
||
Product Description
Low Noise Aluminum Alloy Rotary VCM with 0.12N-m Continous Torque
Product Description:
Rotary Voice Coil Motor (VCM) is a type of rotational motor developed using voice coil technology. It is characterized by its small size of 50 x 50 x 50mm, high peak torque of 0.22N.m, and reliability. Our Rotary VCM is a perfect choice for applications such as industrial automation, robotics, and aerospace. It is designed to provide reliable and powerful performance in harsh working environments. With a warranty of 3 months to 1 year, our Rotary Voice Coil Motor is sure to provide you with the best service.
Our Rotary Voice Coil Motor (VCM) is a high-performance rotational motor specifically designed for rotational applications. It is equipped with a voice coil actuator, and provides a high peak torque of 0.22N.m. Its small size of 50 x 50 x 50mm makes it suitable for various application environments. It is designed to operate reliably in extreme temperatures and tough industrial environments, making it the perfect choice for robotics, industrial automation, and aerospace applications.
Features:
- Product Name: Rotary Voice Coil Motor
- Name: Rotary Voice Coil Motor
- Material: Aluminum Alloy
- Model Number: VARS0022-032-00A
- Speed: High speed
- Continous Torque: 0.12N-m
- Curved Voice Coil Motor
- Rotational Voice Coil Motor
Technical Parameters:
| Parameter | Value |
|---|---|
| Type | Rotary Voice Coil Motor |
| Model Number | VARS0022-032-00A |
| Size | 50*50*50mm |
| Power | 6W |
| Speed | 500rpm |
| Accuracy | 0.05mm |
| Continous Torque | 0.12N-m |
| Peak Torque | 0.22N.m |
| Life | ≥10000h |
| Noise | Low |
| Product Model | Peak torque (N-m) | Continuos torque at 25℃(N-m) | Total Stroke degrees ( mm) | Max Voltage (V) | Back EMF Constant (V/m/s) | Weight of the coil(g) | Length (mm) | Width (mm) | Height (mm) |
| VARS0008-026-00A | 0.08 | 0.05 | 26 | 6.4 | 0.05 | 11.7 | 35 | 39.8 | 36.1 |
| VARS0017-090-00A | 0.17 | 0.1 | 90 | 11.1 | 0.1 | 17.8 | 70 | 41.5 | 39 |
| VARS0022-032-00A | 0.22 | 0.12 | 32 | 15.5 | 0.16 | 21.5 | 60 | 60 | 36 |
| VARS0042-040-00A | 0.42 | 0.38 | 40 | 3.5 | 0.12 | 38 | 82 | 53.6 | 30.3 |
| VARS0077-020-00A | 0.77 | 0.63 | 20 | 6.7 | 0.24 | 66 | 75 | 50 | 30 |
| VARS0084-030-00A | 0.84 | 0.6 | 30 | 6.3 | 0.2 | 50.4 | 75 | 48.9 | 30.6 |
| VARS0120-020-00A | 1.2 | 0.5 | 20 | 8.4 | 0.67 | 65 | 81 | 73.4 | 32 |
| VARS0350-060-00A | 3.5 | 1.14 | 60 | 25.8 | 0.52 | 115 | 115 | 65 | 54.5 |

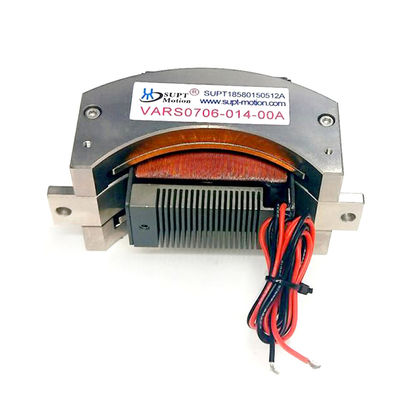

| VARS0706-014-00A | 7.1 | 2.1 | 14 | 52.4 | 1.03 | 225.5 | 115 | 65 | 54.5 |
| VARS4520-030-00A | 45.2 | 19 | 30 | 71.5 | 4.3 | 1350 | ￠240 | 78 |
Applications:
Rotary Voice Coil Motor
SUPT MOTION's Rotary Voice Coil Motor (VCM), Model Number: VARS0022-032-00A, is a curved voice coil motor with rotational motion. It is designed to provide precise and smooth rotational motion with low noise. The product is certified with ISO9001-2000, with minimum order quantity of 1 and delivery time of 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated. It is priced at $112 and comes with carton packaging. The size of the Rotary Voice Coil Motor is 50*50*50mm, with a life of ≥10000h. SUPT MOTION offers competitively priced Rotary Voice Coil Motors with guaranteed supply ability.
The Rotary Voice Coil Motor, also known as Rotational Voice Coil or Rotating VCM, is widely used in various industries for its precise and smooth rotational motion, low noise and long life. It is a great choice for applications such as motorized platforms, robotic arms, medical equipment, and automotive parts. With its high reliability and stability, the Rotary Voice Coil Motor from SUPT MOTION is suitable for all kinds of industrial and commercial applications.
