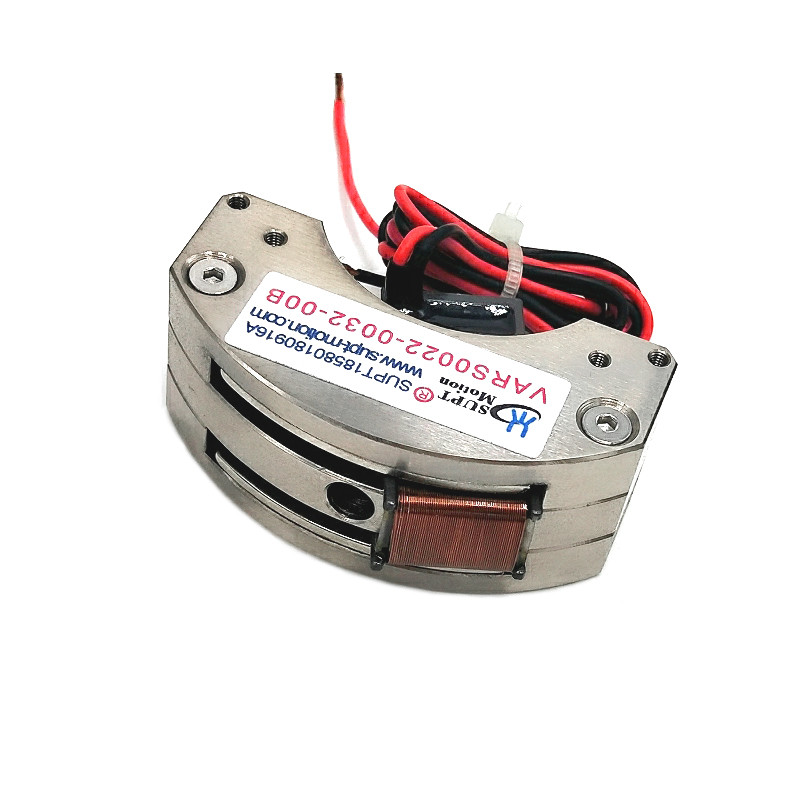

High Frequency Response Rotary Voice Coil Motor High Positioning Accuracy
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001-2000 |
| Model Number | VARS0022-032-00A |
| Minimum Order Quantity | ≥1 |
| Price | $112 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Accuracy | 0.05mm | Speed | High Speed |
|---|---|---|---|
| Power | 6W | Peak Torque | 0.22N.m |
| Continous Torque | 0.12N-m | Material | Aluminum Alloy |
| Type | Rotary Motor | Stroke | 32° |
| Highlight | High Frequency Response Rotary Voice Coil Motor,500rpm Rotary Voice Coil Motor,Rotary Voice Coil Motor High Positioning Accuracy |
||
Product Description
High Frequency Response High Positioning Accuracy Rotary Voice Coil Motor 500rpm
Product Description:
Rotary Voice Coil Motor – Compact, Powerful, Low Noise
The Rotary Voice Coil Motor (Rotational VCM) is a high-performance, curved voice coil motor that is 50mm x 50mm x 50mm in size and delivers up to 6W of power and 0.22N.m of peak torque with low noise. This Rotational Voice Coil Motor (VCM) features dual rotating coils, an integrated drive circuit, and an outer ring for providing a consistent torque output. The motor is designed to provide consistent performance in a variety of applications. It is a reliable and efficient motor for industrial automation, robotics, and other applications requiring precise motion control.
The Rotary Voice Coil Motor is a compact, high-torque motor with a long life-span. It is capable of providing smooth and precise motion control in a variety of applications. The motor is designed to be lightweight and durable, and its low noise output makes it suitable for use in a variety of environments. With its low noise and high torque, this motor is ideal for industrial automation and robotics applications.
The Rotary Voice Coil Motor is the perfect solution for applications requiring precise motion control. Whether you need a motor for industrial automation, robotics, or other motion control applications, this motor is the ideal choice. With its powerful output, low noise, and compact design, the Rotary Voice Coil Motor is the ideal choice for your motion control needs.
Features:
- Product Name: Rotary Voice Coil Motor
- Material: Aluminum Alloy
- Speed: High speed
- Voltage: 15.5V
- Warranty: 3months-1 Year
- Model Number: VARS0022-032-00A
- Special Features: Rotational Voice Coil, Rotating VCM, Rotational VCM
Technical Parameters:
| Parameters | Details |
|---|---|
| Warranty | 3months-1 Year |
| Type | Rotary Motor |
| Name | Rotary Voice Coil Motor |
| Speed | High speed |
| Voltage | 15.5V |
| Continous Torque | 0.12N-m |
| Life | ≥10000h |
| Peak Torque | 0.22N.m |
| Material | Aluminum Alloy |
| Noise | Low |
| Product Model | Peak torque (N-m) |
Continuos torque at 25℃(N-m) |
Total Stroke degrees ( mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil(g) | Length (mm) |
Width (mm) |
Height (mm) |
| VARS0008-026-00A | 0.08 | 0.05 | 26 | 6.4 | 0.05 | 11.7 | 35 | 39.8 | 36.1 |
| VARS0017-090-00A | 0.17 | 0.1 | 90 | 11.1 | 0.1 | 17.8 | 70 | 41.5 | 39 |
| VARS0022-032-00A | 0.22 | 0.12 | 32 | 15.5 | 0.16 | 21.5 | 60 | 60 | 36 |
| VARS0042-040-00A | 0.42 | 0.38 | 40 | 3.5 | 0.12 | 38 | 82 | 53.6 | 30.3 |
| VARS0077-020-00A | 0.77 | 0.63 | 20 | 6.7 | 0.24 | 66 | 75 | 50 | 30 |
| VARS0084-030-00A | 0.84 | 0.6 | 30 | 6.3 | 0.2 | 50.4 | 75 | 48.9 | 30.6 |
| VARS0120-020-00A | 1.2 | 0.5 | 20 | 8.4 | 0.67 | 65 | 81 | 73.4 | 32 |
| VARS0350-060-00A | 3.5 | 1.14 | 60 | 25.8 | 0.52 | 115 | 115 | 65 | 54.5 |
| VARS0706-014-00A | 7.1 | 2.1 | 14 | 52.4 | 1.03 | 225.5 | 115 | 65 | 54.5 |
| VARS4520-030-00A | 45.2 | 19 | 30 | 71.5 | 4.3 | 1350 | ￠240 | 78 |
Applications:
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding, robotics. |
| 2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment, dispenser, test equipment, textile machinery. |
The Rotary Actuators are typically utilized as mirror position Actuators for laser technologies,rotary valve and damping Actuators, rotary positioning systems and flight control Actuators, Rotary Actuators markets include semiconductor,automotive,industrial and aerospace industries.
