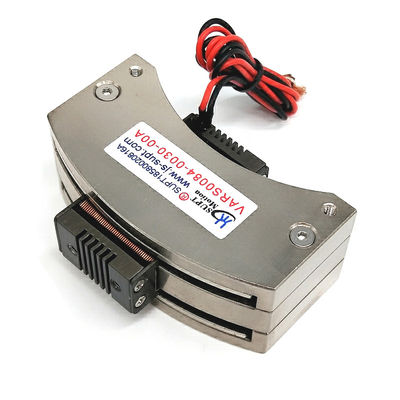

High Speed Rotary Voice Coil Motor VCM 54g Rotating With 0.05mm Accuracy
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001-2000 |
| Model Number | VARS Series |
| Minimum Order Quantity | ≥1 |
| Price | $109 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Life | 10000h | Size | 50*50*50mm |
|---|---|---|---|
| Accuracy | 0.05mm | Stroke | 30° |
| Noise | Low | Torque | 0.84N.m |
| Power | 16W | Name | Rotary Voice Coil Motor |
| Product Model | VARS0084-030-00A | ||
| Highlight | High Speed Rotary Voice Coil Motor,Motor VCM 500rpm Rotating,0.05mm Accuracy Rotary Voice Coil Motor |
||
Product Description
1 Year Warranty 500rpm High Speed Rotating VCM with 0.05mm Accuracy
Product Description:
Rotary Voice Coil Motor (VCM) is a highly efficient and reliable rotational motor designed for various applications. It is made of high-strength aluminum alloy and has a long life of up to 10000 hours. With an accuracy of 0.05mm, it is perfect for precise and sensitive operations. This rotational voice coil motor is powered by 6.3V DC and is suitable for various applications requiring high torque and low speed.
The rotary voice coil motor is a great choice for applications that require a high torque and low speed. Its highly reliable and accurate design make it an ideal choice for delicate and precise operations. It has a long life span of up to 10000 hours and is made of strong and durable aluminum alloy for long-term reliability.
The Rotary Actuators have taken the technology of the rectangular linear actuator and bent therm to provide a high resolution limited angle positioning system.Typical stroke angles exceed 100 degrees and torques to 50 N-mThe Rotary Actuators are typically utilized as mirror position Actuators for laser technologies,rotary valve and damping Actuators, rotary positioning systems and flight control Actuators, Rotary Actuators markets include semiconductor,automotive,industrial and aerospace industries.
Features:
- Product Name: Rotary Voice Coil Motor
- Lifespan: 10000h
- Noise: Low
- Material: Aluminum Alloy
- Warranty: 1 Year
- Speed: High Speed
- Special Feature: Curved Voice Coil Motor, Rotational Voice Coil, Rotary VCM
Technical Parameters:
| Name | Rotary Voice Coil Motor |
|---|---|
| Size | 50*50*50mm |
| Material | Aluminum Alloy |
| Weight | 54.2g |
| Speed | High Speed |
| Life | 10000h |
| Accuracy | 0.05mm |
| Torque | 0.84N.m |
| Stroke | 30° |
| Voltage | 6.3V |
| Product Model | Peak torque (N-m) | Continuos torque at 25℃(N-m) | Total Stroke degrees ( mm) | Max Voltage (V) | Back EMF Constant (V/m/s) | Weight of the coil(g) | Length (mm) | Width (mm) | Height (mm) |

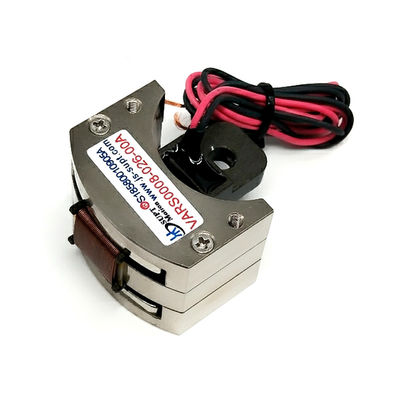

| VARS0008-026-00A | 0.08 | 0.05 | 26 | 6.4 | 0.05 | 11.7 | 35 | 39.8 | 36.1 |
| VARS0017-090-00A | 0.17 | 0.1 | 90 | 11.1 | 0.1 | 17.8 | 70 | 41.5 | 39 |
| VARS0022-032-00A | 0.22 | 0.12 | 32 | 15.5 | 0.16 | 21.5 | 60 | 60 | 36 |
| VARS0042-040-00A | 0.42 | 0.38 | 40 | 3.5 | 0.12 | 38 | 82 | 53.6 | 30.3 |
| VARS0077-020-00A | 0.77 | 0.63 | 20 | 6.7 | 0.24 | 66 | 75 | 50 | 30 |
| VARS0084-030-00A | 0.84 | 0.6 | 30 | 6.3 | 0.2 | 50.4 | 75 | 48.9 | 30.6 |

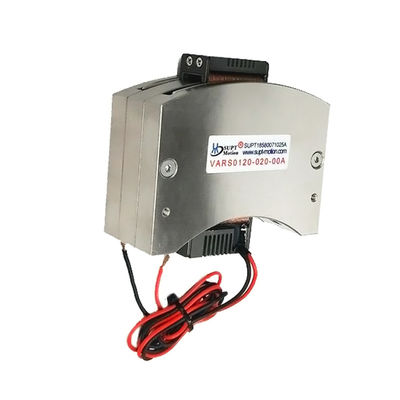

| VARS0120-020-00A | 1.2 | 0.5 | 20 | 8.4 | 0.67 | 65 | 81 | 73.4 | 32 |
| VARS0350-060-00A | 3.5 | 1.14 | 60 | 25.8 | 0.52 | 115 | 115 | 65 | 54.5 |
| VARS0706-014-00A | 7.1 | 2.1 | 14 | 52.4 | 1.03 | 225.5 | 115 | 65 | 54.5 |
| VARS4520-030-00A | 45.2 | 19 | 30 | 71.5 | 4.3 | 1350 | ￠240 | 78 |
Applications:
SUPT MOTION VARS Series Rotary Voice Coil Motor is an ideal product for a wide range of applications. It comes with Brand Name of SUPT MOTION, Model Number of VARS Series, Place of Origin of Jiangsu, China, Certification of ISO9001-2000, Minimum Order Quantity of≥1, Price of $109, Packaging Details of Carton Packaging, Delivery Time of 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated, Payment Terms of T/T, Supply Ability of Interview, Type of Rotary Motor, Torque of 0.84N.m, Name of Rotary Voice Coil Motor, Life of 10000h, and Warranty of 1 Year. It is the best solution for applications requiring precise and fast rotary motion, such as curved voice coil motor, rotary voice coil actuator, rotating voice coil motor, and rotary voice coil motor.
It is widely used in semiconductor, precision test and detection ,Boat, Car, Electric Bicycle, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical project.
