Aluminum Alloy Rotary Voice Coil Motor High Positioning Accuracy VCM Motor 52V Rotary
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001-2000 |
| Model Number | VARS Series |
| Minimum Order Quantity | ≥1 |
| Price | $109 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Noise | Low | Material | Aluminum Alloy |
|---|---|---|---|
| Torque | 7.1N.m | Name | Rotary Voice Coil Motor |
| Weight | 220g | Type | Rotary Motor |
| Product Model | VARS0706-014-00A | Stroke | 14° |
| Highlight | Aluminum Alloy Rotary Voice Coil Motor,High Positioning Accuracy VCM Motor,VCM Motor 24V Rotary |
||
Product Description
High Positioning Accuracy 24V Rotary Voice Coil Actuator Made of Aluminum Alloy
Product Description:
Rotary Voice Coil Motor
Our Rotary Voice Coil Motor is a curved type of Voice Coil Motor that has been designed for rotating motions. It offers a great combination of high torque, low noise, and a short stroke of 14°. The maximum torque output is 7.1N.m. This motor is a great fit for applications that require rotary motion in a small space.
The Rotary Actuators have taken the technology of the rectangular linear actuator and bent therm to provide a high resolution limited angle positioning system.Typical stroke angles exceed 100 degrees and torques to 50 N-mThe Rotary Actuators are typically utilized as mirror position Actuators for laser technologies,rotary valve and damping Actuators, rotary positioning systems and flight control Actuators, Rotary Actuators markets include semiconductor,automotive,industrial and aerospace industries.
Features:
- Product Name: Rotary Voice Coil Motor
- Weight: 220g
- Size: Small
- Name: Rotary Voice Coil Motor
- Stroke: 14°
- Life: 10000h
- Special Feature: Curved Voice Coil Motor, Rotating VCM, Rotary Voice Coil Motor
Technical Parameters:
| Parameters | Details |
|---|---|
| Type | Rotary Voice Coil Motor (Rotary VCM, Rotary voice coil Actuator) |
| Warranty | 1 Year |
| Stroke | 14° |
| Power | 6W |
| Noise | Low |
| Size | Small size |
| Torque | 7.1N.m |
| Speed | High speed |
| Weight | 220g |
| Voltage | 52.4V |
| Product Model | Peak torque (N-m) | Continuos torque at 25℃(N-m) | Total Stroke degrees ( mm) | Max Voltage (V) | Back EMF Constant (V/m/s) | Weight of the coil(g) | Length (mm) | Width (mm) | Height (mm) |
| VARS0008-026-00A | 0.08 | 0.05 | 26 | 6.4 | 0.05 | 11.7 | 35 | 39.8 | 36.1 |
| VARS0017-090-00A | 0.17 | 0.1 | 90 | 11.1 | 0.1 | 17.8 | 70 | 41.5 | 39 |
| VARS0022-032-00A | 0.22 | 0.12 | 32 | 15.5 | 0.16 | 21.5 | 60 | 60 | 36 |
| VARS0042-040-00A | 0.42 | 0.38 | 40 | 3.5 | 0.12 | 38 | 82 | 53.6 | 30.3 |

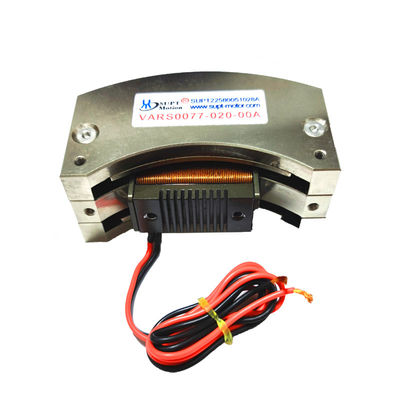

| VARS0077-020-00A | 0.77 | 0.63 | 20 | 6.7 | 0.24 | 66 | 75 | 50 | 30 |

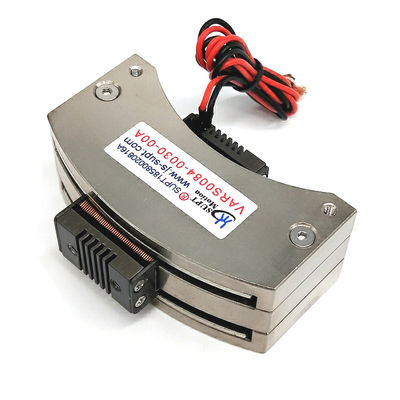

| VARS0084-030-00A | 0.84 | 0.6 | 30 | 6.3 | 0.2 | 50.4 | 75 | 48.9 | 30.6 |

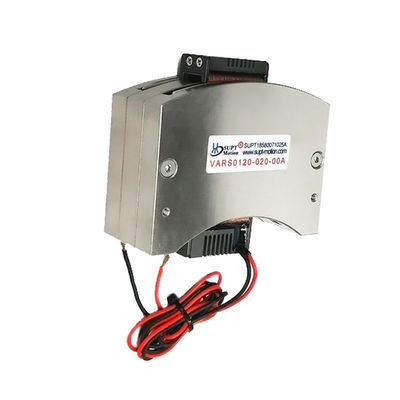

| VARS0120-020-00A | 1.2 | 0.5 | 20 | 8.4 | 0.67 | 65 | 81 | 73.4 | 32 |
| VARS0350-060-00A | 3.5 | 1.14 | 60 | 25.8 | 0.52 | 115 | 115 | 65 | 54.5 |
| VARS0706-014-00A | 7.1 | 2.1 | 14 | 52.4 | 1.03 | 225.5 | 115 | 65 | 54.5 |
| VARS4520-030-00A | 45.2 | 19 | 30 | 71.5 | 4.3 | 1350 | ￠240 | 78 |
Applications:
SUPT MOTION's VARS Series Rotary Voice Coil Motor is a type of rotary motor featuring high performance and reliable operation. It is certified by ISO9001-2000 and manufactured in Jiangsu, China. The minimum order quantity for this product is ≥1 and its price is $109. It is packaged in a carton for delivery and the delivery time is 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated. The payment terms are T/T and the supply ability is available for interview. This VCM has a high torque of 7.1N.m, stroke of 14°, life of 10000h and small size. Therefore, it can be widely used in various applications.
It is widely used in semiconductor, precision test and detection ,Boat,Car, Electric Bicycle, Medical Ventilators,Optical project,Laser equipment.
