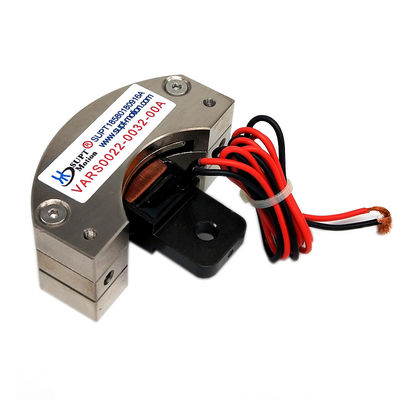

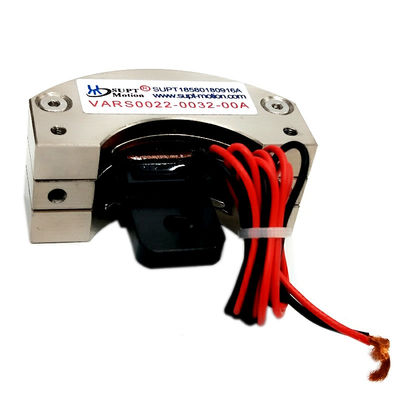

Rotary Voice Coil Motor 0.22N.M Rotary Voice Coil Actuator For Industrial
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001-2000 |
| Model Number | VARS Series |
| Minimum Order Quantity | ≥1 |
| Price | $109 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1 Year | Voltage | 15.5V |
|---|---|---|---|
| Material | Aluminum Alloy | Type | Rotary Motor |
| Stroke | 32° | Noise | Low |
| Size | Small Size | Name | Rotary Voice Coil Motor |
| Product Model | VARS0022-032-00A | Peak Torque | 0.22N-m |
| Highlight | Rotary Voice Coil Motor 50mm,Rotary Voice Coil Motor 10000h,10000h Rotary Voice Coil Actuator |
||
Product Description
50*50*50mm 10000h Rotary Voice Coil Motor for Industrial Automation
Product Description:
The Rotary Actuators have taken the technology of the rectangular linear actuator and bent therm to provide a high resolution limited angle positioning system.Typical stroke angles exceed 100 degrees and torques to 50 N-m.
Rotary Voice Coil Motor, also known as Rotary VCM or Rotational Voice Coil Motor, is a high-precision, long-lasting motor with excellent torque and accuracy. It can provide up to 0.22N.m of torque with accuracy of 0.05mm, making it suitable for various industrial and consumer applications. It has a life expectancy of 10000 hours and weighs 21.5g. The operating voltage is 15.5V, making it energy-efficient and cost-effective. It is ideal for applications requiring precise movements and reliable operation.
Features:
- Product Name: Rotary Voice Coil Motor
- Type: Rotary Motor
- Accuracy: 0.05mm
- Name: Rotary Voice Coil Motor
- Torque: 0.22N.m
- Material: Aluminum Alloy
- Speciality : Rotary voice coil Actuator, Curved Voice Coil Motor, Rotary Voice Coil Motor
Technical Parameters:
| Name | Rotary Voice Coil Motor |
|---|---|
| Accuracy | 0.05mm |
| Power | 2W |
| Torque | 0.22N.m |
| Warranty | 1 Year |
| Life | 10000h |
| Material | Aluminum Alloy |
| Voltage | 15.5V |
| Stroke | 32° |
| Size | Small Size |
| Product Model | Peak torque (N-m) | Continuos torque at 25℃(N-m) | Total Stroke degrees ( mm) | Max Voltage (V) | Back EMF Constant (V/m/s) | Weight of the coil(g) | Length (mm) | Width (mm) | Height (mm) |

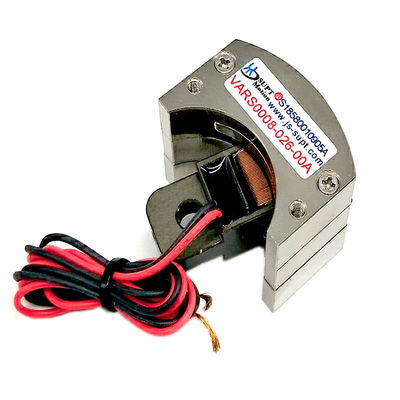

| VARS0008-026-00A | 0.08 | 0.05 | 26 | 6.4 | 0.05 | 11.7 | 35 | 39.8 | 36.1 |
| VARS0017-090-00A | 0.17 | 0.1 | 90 | 11.1 | 0.1 | 17.8 | 70 | 41.5 | 39 |
| VARS0022-032-00A | 0.22 | 0.12 | 32 | 15.5 | 0.16 | 21.5 | 60 | 60 | 36 |
| VARS0042-040-00A | 0.42 | 0.38 | 40 | 3.5 | 0.12 | 38 | 82 | 53.6 | 30.3 |
| VARS0077-020-00A | 0.77 | 0.63 | 20 | 6.7 | 0.24 | 66 | 75 | 50 | 30 |
| VARS0084-030-00A | 0.84 | 0.6 | 30 | 6.3 | 0.2 | 50.4 | 75 | 48.9 | 30.6 |
| VARS0120-020-00A | 1.2 | 0.5 | 20 | 8.4 | 0.67 | 65 | 81 | 73.4 | 32 |
| VARS0350-060-00A | 3.5 | 1.14 | 60 | 25.8 | 0.52 | 115 | 115 | 65 | 54.5 |
| VARS0706-014-00A | 7.1 | 2.1 | 14 | 52.4 | 1.03 | 225.5 | 115 | 65 | 54.5 |
| VARS4520-030-00A | 45.2 | 19 | 30 | 71.5 | 4.3 | 1350 | ￠240 | 78 |
Applications:
It is widely used in semiconductor, precision test and detection ,Boat,Car, Electric Bicycle, Medical Ventilators,Optical project,Laser equipment.
The VARS Series Rotary Voice Coil Motor is an ideal choice for rotating applications, such as medical instruments, robotic arms, and printing equipment. It is a robust rotating VCM that can be used in a wide range of industries, including aerospace, automotive, and industrial automation. The VCM is designed to be highly durable, with low maintenance requirements and long service life. It provides excellent torque and speed accuracy, and can be used for precision motion control. In addition, the VCM is vibration-free and provides quiet operation.
The VARS Series Rotary Voice Coil Motor from SUPT MOTION is the perfect choice for any rotating application. It is a reliable and efficient curved voice coil motor with excellent noise-free operation. It is ideal for applications that require precision motion control, and can be used for a wide range of industries. It is a robust rotating VCM with low maintenance requirements and long service life, and provides excellent torque and speed accuracy. With its vibration-free operation and quiet performance, the VARS Series Rotary Voice Coil Motor is an ideal choice for any rotational application.
