2500N Linear Voice Coil Motor Low Power Consumption Moving Magnet Voice Coil Actuator
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | VCAB Series |
| Minimum Order Quantity | ≥5 |
| Price | $119 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | General 5-7 days delivery, fast 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage Range | 5.4V | Stroke Length | 3mm |
|---|---|---|---|
| Current Range | 1.2A | Noise Level | Low |
| Rated Speed | 100HZ(RPM) | Load Capacity | High |
| Product Type | Linear Voice Coil Motor With Shaft | Rated Power | 2500N |
| Peak Force | 5N | Product Model | VCAB0005-0039-00A |
| Highlight | 2500N Linear Voice Coil Motor,Linear Voice Coil Motor Low Power Consumption,2500N Moving Magnet Voice Coil Actuator |
||
Product Description
Low Power Consumption 2500N Linear Voice Coil Motor
Product Description:
The Linear Voice Coil Motor offers you a reliable and efficient linear motion solution. Featuring a high degree of precision and accuracy, the Linear Voice Coil System is designed to meet the needs of a variety of industries. With its Linear Voice Coil Device, it is capable of providing a high level of positioning accuracy. The Linear Voice Coil Device With High Positioning Accuracy is ideal for applications where accuracy is critical. The VCAB Series model number is rated at 2500N and has a current range of 1.2A. This Linear Voice Coil Motor is designed to provide superior performance while being reliable and cost-effective.
Built in motion shaft and precision linear bearing. The moving shaft is made of light, high rigidity and wear-resistant. It is widely used in semiconductor, precision test and detection,valve flow control field.
Features:
- Linear Voice Coil Motor:
- Stroke Length:3mm
- Linearity: High
- Current Range: 4.2A
- Resolution: High
- Rated Speed: 100HZ(RPM)
Technical Parameters:
| Parameter | Value |
|---|---|
| Load Capacity | High |
| Power Consumption | Low |
| Current Range | 1.2A |
| Product Type | Linear Voice Coil Motor With Shaft |
| Repeatability | High |
| Stroke Length | 3mm |
| Voltage Range | 5.4V |
| Rated Speed | 100HZ(RPM) |
| Model Number | VCAB Series |
| Rated Power | 2500N |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |

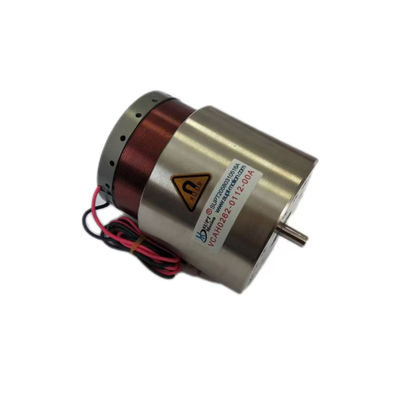

| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
SUPT MOTION VCAB Series Linear Voice Coil Motor is a linear voice coil device that is used in a variety of applications. It has a high load capacity and low power consumption, and its linearity is extremely high. It has a current range of 1.2A and is certified with ISO9001. It comes with a minimum order quantity of ≥5 and price of $119. It is packaged in carton packaging and is typically delivered within general 5-7 days delivery, fast 3-5 days, bulk to be negotiated. Payment terms are T/T.SUPT MOTION has a good supply ability and can be interviewed for more details.
Built in motion shaft and precision linear bearing. The moving shaft is made of light, high rigidity and wear-resistant,high-quality materials. It is widely used in semiconductor, precision test and detection,valve flow control field.
