High Positioning Accuracy And Precise Positioning Linear Voice Coil Motor
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | VCAB Series |
| Minimum Order Quantity | ≥5 |
| Price | $119 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | General 5-7 days delivery, fast 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | High | Force Output | High |
|---|---|---|---|
| Positioning Accuracy | High | Noise Level | Low |
| Voltage Range | 24V | Rated Power | 2500N |
| Current Range | 4.2A | Model Number | VCAB0033-0099-00A |
| Highlight | High Linearity Linear Voice Coil Motor,Linear Voice Coil Motor 2500N,High Positioning Linear Voice Coil Actuator |
||
Product Description
High Accuracy High Positioning Linear Voice Coil Motor with High Linearity
Product Description:

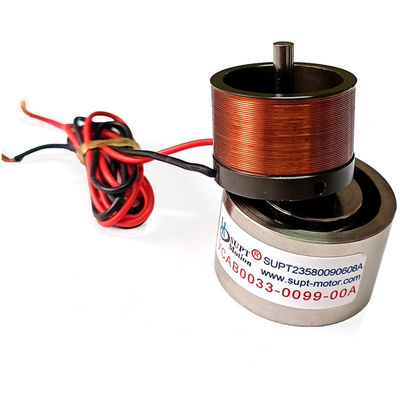

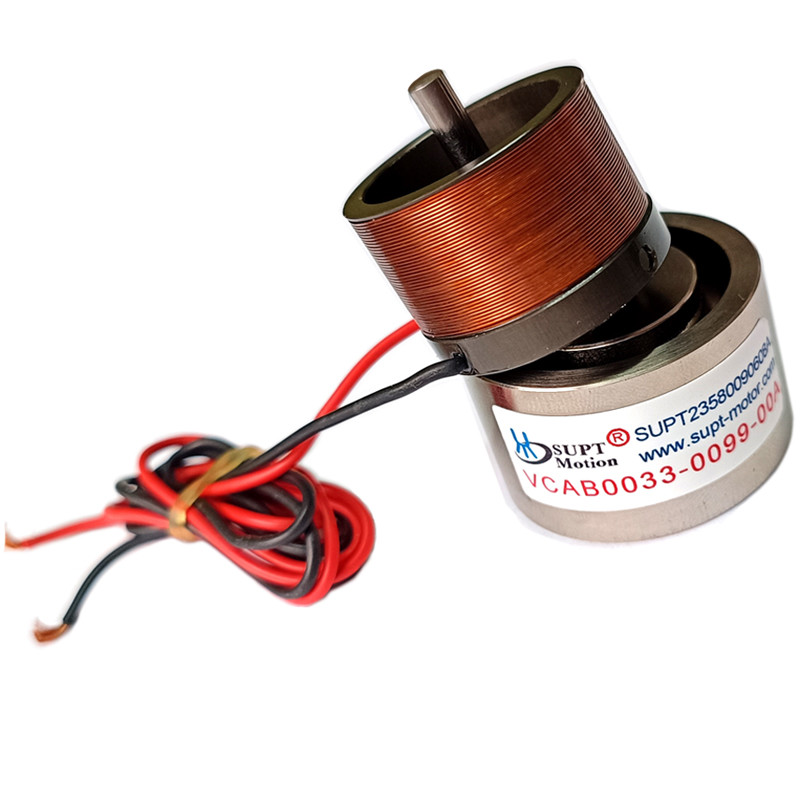

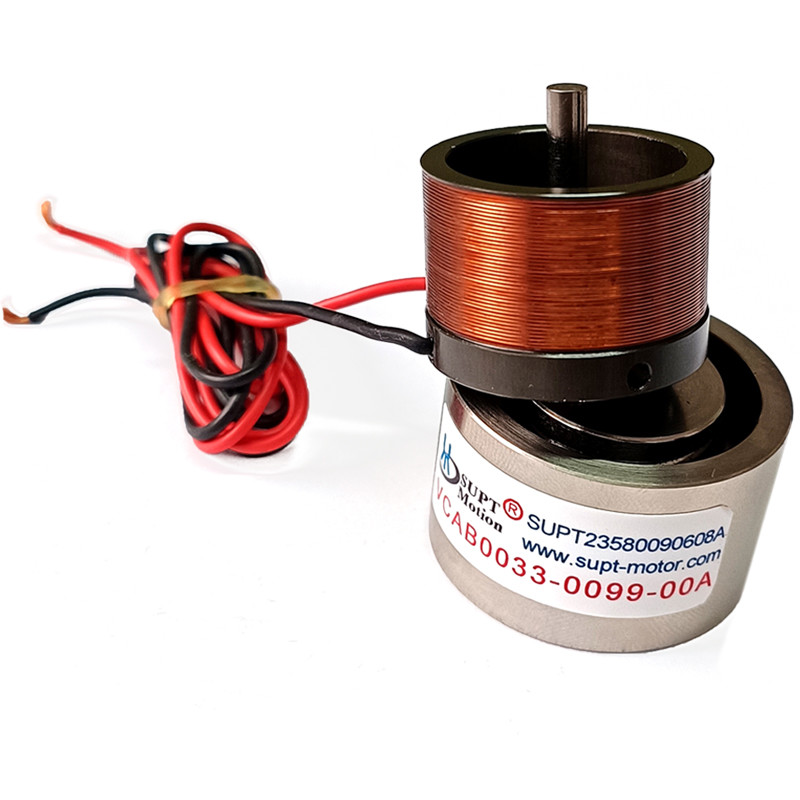

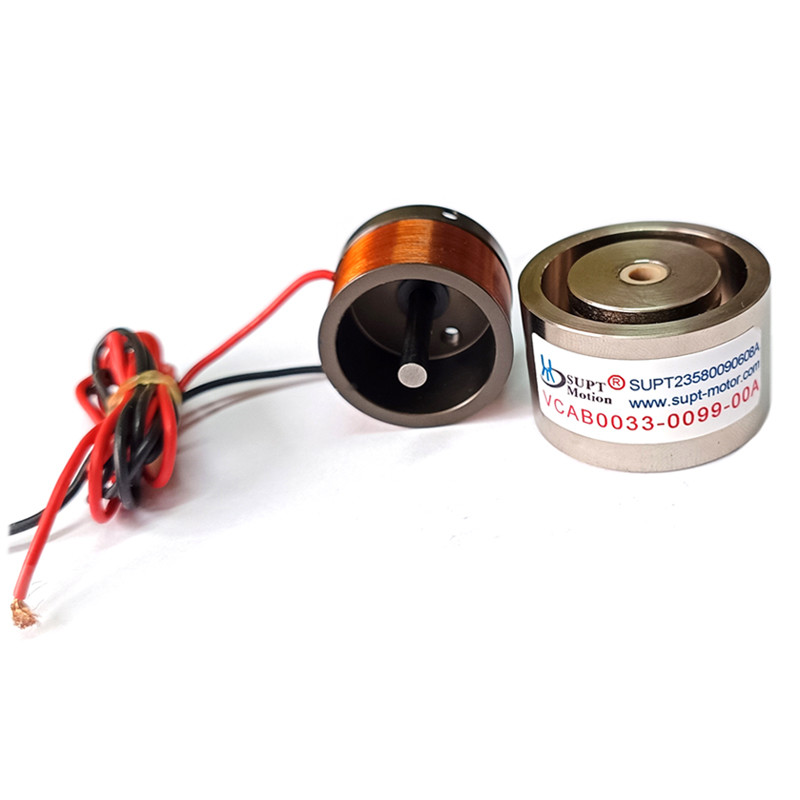

Linear voice coil motors have a built-in motion shaft and precision linear bearings. The motion shaft is made of lightweight, highly rigid and wear-resistant materials. Linear voice coil motors have the advantages of high frequency response, high accuracy, high speed, high acceleration, simple structure, small size, good force characteristics, and easy control.
With nearly 80% of the market share, the VCAB series of cylindrical actuators produce high forces at high accelerations with peak forces ranging from 0.7N to 3000N. Markets include medical semiconductor, aerospace and automotive. Applications include semiconductors, precision test and inspection, and valve flow control.
Linear built-in shaft voice coil motor in semiconductor photolithography machine application:
Lithography is a key equipment in the semiconductor manufacturing process, used to transfer the circuit pattern to the silicon wafer. The lithography process requires extremely high precision and fast response. Linear built-in shaft voice coil motors are ideally suited for use in lithography alignment and scanning systems due to their high acceleration, precise position control, and wear-free motion.
The Linear Voice Coil Motor is a motion control device designed to provide high repeatability. The device has low power consumption and operates from 24 V. It is available in speeds up to 100 HZ (RPM) and power ratings up to 2500 N. It is a reliable and cost-effective solution for a variety of linear motion applications.
With nearly 80% of the market share, the VCAB series of cylindrical actuators produce high forces at high accelerations with peak forces ranging from 0.7N to 3000N. Markets include medical semiconductor, aerospace and automotive. Applications include semiconductors, precision test and inspection, and valve flow control.
Linear built-in shaft voice coil motor in semiconductor photolithography machine application:
Lithography is a key equipment in the semiconductor manufacturing process, used to transfer the circuit pattern to the silicon wafer. The lithography process requires extremely high precision and fast response. Linear built-in shaft voice coil motors are ideally suited for use in lithography alignment and scanning systems due to their high acceleration, precise position control, and wear-free motion.
The Linear Voice Coil Motor is a motion control device designed to provide high repeatability. The device has low power consumption and operates from 24 V. It is available in speeds up to 100 HZ (RPM) and power ratings up to 2500 N. It is a reliable and cost-effective solution for a variety of linear motion applications.
Translated with www.DeepL.com/Translator (free version)
Features:
- Product Name: Linear Voice Coil Motor
- Positioning Accuracy: High
- Repeatability: High
- Product Type: Linear Voice Coil Motor With Shaft
- Current Range: 4.2A
- Power Consumption: Low
- Linear Voice Coil System: Powerful and Accurate
- Linear Voice Coil Device: Lightweight and Compact
- Linear Voice Coil Product: Reliable and Cost-Effective
Technical Parameters:
| Parameter | Value |
|---|---|
| Product Type | Linear Voice Coil Motor With Shaft |
| Current Range | 4.2A |
| Stroke Length | 12mm |
| Rated Speed | 100HZ(RPM) |
| Force Output | High |
| Power Consumption | Low |
| Rated Power | 2500N |
| Model Number | VCAB0033-0099-00A |
| Linearity | High |
| Repeatability | High |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
The main application of a voice coil motor:
1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics.
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry
injection system.
3.Micro Machine industry:Feed systems, micro drilling, precision stamping.
4.Vibration System:Shaking table, vibration platform.
5.Medical field:Micro-injection system, respiratory equipment, testing equipment.
6.Aviation Technology:Flight control system, pilot feedback system.
7.Commercial use field:Computer cooling pump miniature camera auto focus system.
8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery.
