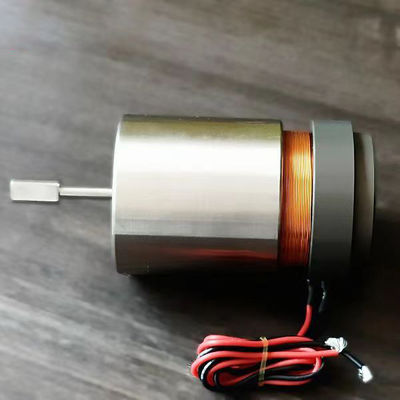

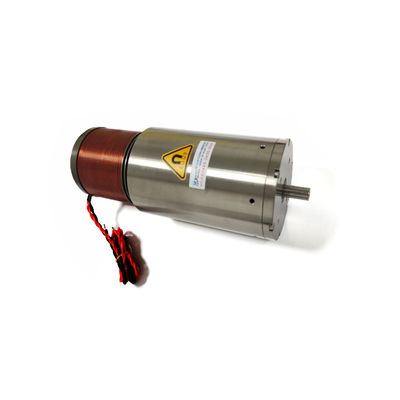

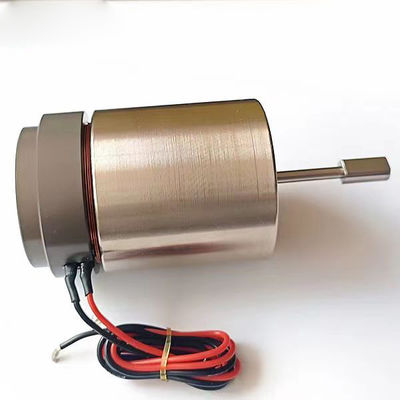

High-Precision Linear Voice Coil Motor VCAB Series For Low Noise And Smooth Operation

  • High-Precision Linear Voice Coil Motor VCAB Series For Low Noise And Smooth Operation
  • High-Precision Linear Voice Coil Motor VCAB Series For Low Noise And Smooth Operation
  • High-Precision Linear Voice Coil Motor VCAB Series For Low Noise And Smooth Operation
Place of Origin Jiangsu, China
Brand Name SUPT MOTION
Certification ISO9001
Model Number VCAB Series
Minimum Order Quantity ≥5
Price $119
Packaging Details Carton Packaging etc
Delivery Time General 5-7 days delivery, fast 3-5 days, bulk to be negotiated
Payment Terms T/T
Supply Ability Interview

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Load Capacity High Voltage Range 28V
Linearity High Positioning Accuracy High
Noise Level Low Resolution High
Rated Speed 100HZ(RPM) Peak Force 262
Model Number VCAB0262-0249-00A
Highlight

VCAB Series Linear Voice Coil Motor

,

Low Noise VCM Voice Coil Motor

,

VCM Voice Coil Motor With Shaft
Leave a Message
Product Description

Low Noise And High-Precision Linear Voice Coil Motor With Shaft VCAB Series

Product Description:

A Linear Voice Coil System with Shaft is a highly reliable device with excellent performance characteristics. Built in motion shaft and precision linear bearing. The moving shaft is made of light, high rigidity and wear-resistant. high-quality materials. It is widely used in semiconductor, precision test and detection,valve flow control field.This device is widely used in various industrial and commercial applications due to its low power consumption, low noise level, high load capacity, and high repeatability,high-quality materials. It is widely used in semiconductor, precision test and detection,valve flow control field. The Linear Voice Coil System is designed to provide the highest level of precision and accuracy in the motion of the shaft.

The Linear Voice Coil System with Shaft is a highly efficient device which is capable of providing a high degree of accuracy and repeatability. The device is designed to provide the highest level of precision and accuracy in the motion of the shaft and is capable of providing a wide range of motion. The device is designed to provide a high level of performance and reliability, while still providing a low power consumption and low noise level.



Features:

  • Product Name: Linear Voice Coil Motor
  • Stroke Length: 24mm
  • Current Range: 4.9A
  • Rated Power: 2500N
  • Positioning Accuracy: High
  • Linearity: High
  • Linear Voice Coil Engine: Compact design, increased strength, and improved accuracy.
  • Linear Voice Coil System: Wide range of applications, high velocity, and low noise.
  • Linear Voice Coil Motor: High force, precision control, and long life.


Technical Parameters:

Parameter Value
Product Type Linear Voice Coil Motor With Shaft
Noise Level Low
Rated Speed 100HZ(RPM)
Current Range 4.9A
Model Number VCAB Series
Load Capacity High
Voltage Range 28V
Resolution High
Power Consumption Low
Positioning Accuracy High

Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Stator Diameter Shaft end thread
(mm)
VCAB0005-0039-00A 5 1.5 3 5.4 0.9 23 29.5 M2(Outer)
VCAB0005-0050-00A 5 2.2 3.9 14.5 3.1 27 31.5 M2.5(Outer)
VCAB0013-0072-00A 13 4.2 7.2 26.6 5.72 16.2 26.2 M3(Outer)
VCAB0015-0062-00A 15 6.5 6.2 26.2 9.75 14.8 33 M3(Outer)
VCAB0015-0127-00A 15 4.9 12.7 21.5 4.1 12.5 30.5 Shaft ∮4.8
VCAB0022-0098-00A 22 6.6 9.8 24.7 5.8 20 34.1 M3(Outer)
VCAB0022-0448-00A 22 11.4 44.8 14.3 4 52 48 M3(Inner)
VCAB0032-0050-00A 32 8.9 5 29.3 7.1 48 40 M3(Inner)
VCAB0033-0099-00A 33 8 9.9 24.3 5.87 23.5 36 M3(Outer)
VCAB0033-0224-00A 33 13.5 22.4 26.7 6.8 69 58 M3(Inner)
VCAB0035-0105-00A 35 15.6 10.5 11.9 5 91 50 M3(Inner)
VCAB0044-0040-00A 44 16.3 4 18.3 8.9 46.5 53 M3(Inner)
VCAB0044-0059-00A 44.1 17.7 5.9 14.3 8 43 46 M3(Inner)
VCAB0044-0075-00A 44 13.7 7.5 16.8 7.6 38.6 31.1 M3(Outer)
VCAB0044-0249-00A 44 11.7 24.9 44.9 8.88 65.9 38.1 M3(Inner)
VCAB0070-0149-00A 70 27.3 14.9 26.9 17.7 79 43 M3(Inner)
VCAB0087-0062-00A 87 21.67 6.2 34.5 12.7 45.2 43.1 M3(Inner)
VCAB0087-0563-00A 87 17.5 56.3 63.4 8.1 177 72 shaft ∮10
VCAB0088-0191-00A 88.5 23.2 19.1 29.9 8 162 50.8 M3(Inner)
VCAB0105-0164-00A 105 35.4 16.1 20.1 11.5 150 60.4 M3(Inner)
VCAB0113-0089-00A 113 35 8.9 31 17.5 125 73 shaft ∮8
VCAB0262-0112-00A 262 111 11.2 35.1 41 285 71 shaft ∮10
VCAB0262-0249-00A 262 112 24.9 28.2 26 785 66 shaft ∮8
VCAB0294-0498-00A 294 56.8 49.8 114 24.5 685 93 shaft ∮10
VCAB0436-0187-00A 436 147.6 18.7 40.7 40.7 648 80.4 shaft ∮10
VCAB0436-0250-00A 436 167 25 31.6 37.2 775 78.4 shaft ∮10
VCAB0445-0300-00A 445 185 30 33 35 920 76.2 shaft ∮10

Applications:

If you are looking for an efficient and reliable linear voice coil system, then SUPT MOTION's VCAH series linear voice coil engine is your best choice. It is manufactured in Jiangsu, China and is ISO9001 certified. It can be purchased for only $119 with a minimum order of ≥5 units. The products are packed in cartons and are usually shipped within 5-7 days, fast shipping within 3-5 days, bulk quantities are subject to negotiation. Payment can be made via T/T. SUPT MOTION can provide interviews for this product. It features high force output, low noise, high linearity and high positioning accuracy. This linear voice coil unit is a linear voice coil motor with shaft.
It is widely used in semiconductors, precision testing and inspection, valve flow control, and other fields.
