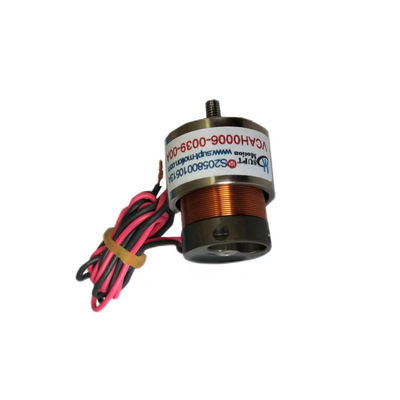

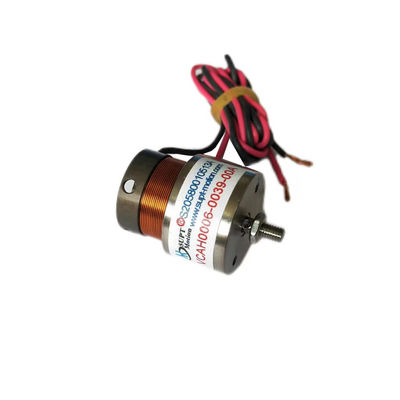

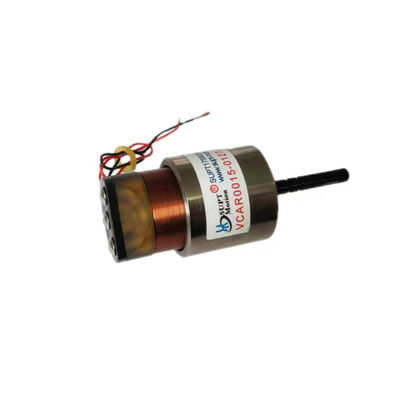

42.7V Linear Vocal Coil Engine VCAH Series Light Weight Linear Coil Actuator
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | VCAH Series |
| Minimum Order Quantity | ≥5 |
| Price | $119 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | General 5-7 days delivery, fast 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Current Range | 4.2A | Rated Power | 2500N |
|---|---|---|---|
| Product Type | Linear Voice Coil Motor With Shaft | Linearity | High |
| Force Output | High | Load Capacity | High |
| Voltage Range | 42.7V | Positioning Accuracy | High |
| Product Model | VCAH0253-0120-00A | ||
| Highlight | 28V Linear Vocal Coil Engine,VCAH Series Linear Coil Actuator,Light Weight Linear Coil Actuator |
||
Product Description
28V Linear Vocal Coil Engine VCAH Series High Load Capacity
Product Description:
The Linear Voice Coil System is a highly efficient, cost-effective linear motor that provides precise position repeatability and low noise. With a stroke length of 12 mm and a current range of 4.2 A, this linear voice coil product is designed to consume low power yet provide high repeatability. It also provides excellent linear velocity and acceleration control.
The linear voice coil system is ideal for applications that require precise positioning and repeatability while maintaining low noise levels. It is also suitable for applications requiring low power consumption and high linear velocity and acceleration control. Linear voice coil products are reliable and economical solutions for a wide range of applications.
Linear voice coil motors have a built-in kinematic axis and precision linear bearings. The kinematic axis is made of high quality materials that are lightweight, highly rigid and wear-resistant.
Widely used in semiconductor, precision testing and inspection, valve flow control and other applications.
Features:
- Linear Voice Coil System: Linear Voice Coil Motor
- Rated Power: 2500N
- Stroke Length: 12mm
- Resolution: High
- Force Output: High
- Product Type: Linear Voice Coil Motor With Shaft
Technical Parameters:
| Parameters | Value |
|---|---|
| Voltage Range | 42.7V |
| Power Consumption | Low |
| Linearity | High |
| Rated Power | 2500N |
| Product Type | Linear Voice Coil Motor With Shaft |
| Noise Level | Low |
| Rated Speed | 100HZ(RPM) |
| Stroke Length | 12mm |
| Model Number | VCAH Series |
| Repeatability | High |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Stator Diameter (mm) | The Length (mm) |
Shaft end thread (mm) |
| VCAH0253-0120-00A | 253 | 46.5 | 12 | 42.7 | 16 | 53.95 | 109 | M5(Inner) |
| VCAH0011-0070-00A | 11 | 3.6 | 7 | 26.2 | 4.9 | 31.5 | 38.9 | M3(Outer) |
| VCAH0013-0070-00A | 13 | 4.2 | 7 | 26.6 | 5.7 | 29 | 40.5 | M3(Outer) |
| VCAH0030-0100-00A | 30 | 7.2 | 10 | 24.9 | 5.2 | 37 | 47 | M3(Outer) |
| VCAH0040-0075-00A | 40 | 12.3 | 7.5 | 16.8 | 6.9 | 36 | 50 | ∮3 |
| VCAH0040-0240-00A | 40 | 6 | 24 | 44.5 | 8 | 41 | 83 | M3(Inner) |
| VCAH0065-0140-00A | 65 | 24.6 | 14 | 27.6 | 16 | 44 | 75 | M3(Inner) |
| VCAH0230-0110-00A | 230 | 100 | 11 | 34.2 | 37 | 71 | 117 | ∮10 |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
SUPT MOTION's Linear Voice Coil Motor (Model Number: VCAH Series) is a product of Jiangsu, China with ISO9001 certification. It is available in minimum order quantity of ≥5 and the price is $119 per unit. The packaging details are carton packaging etc and delivery time is general 5-7 days delivery, fast 3-5 days, bulk to be negotiated. Payment terms are T/T and supply ability is on interview. The resolution and force output of this Linear Voice Coil Motor are high and the product type is Linear Voice Coil Motor with shaft. The rated speed is 100HZ(RPM).
Built in motion shaft and precision linear bearing. The moving shaft is made of light, high rigidity and wear-resistant,high-quality materials. It is widely used in semiconductor, precision test and detection,valve flow control field.
