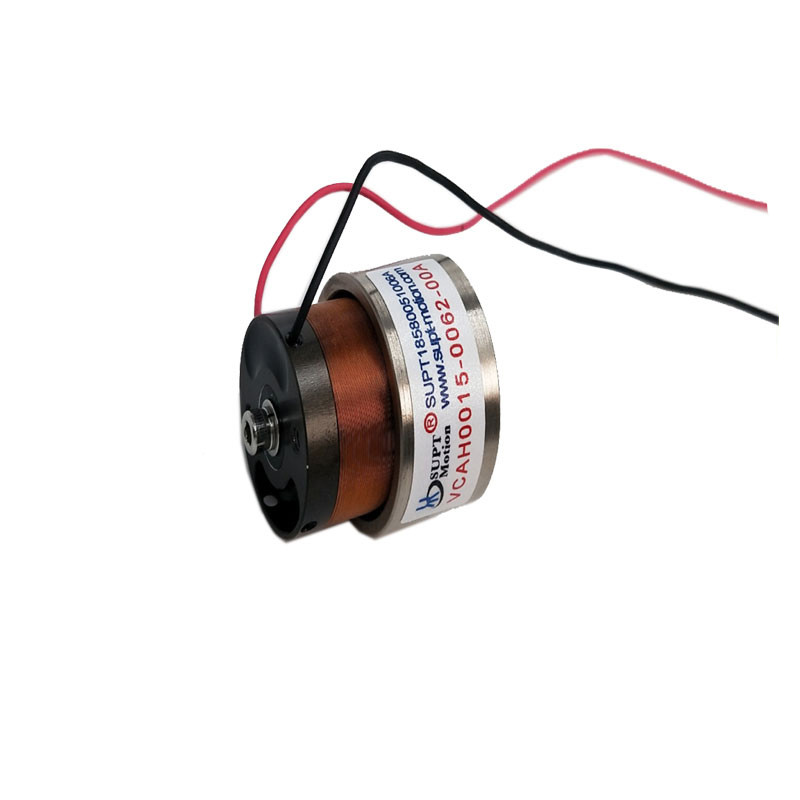

High Frequency Linear Voice Coil Motors For Semiconductor Applications
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | VCAB Series |
| Minimum Order Quantity | 1PCS |
| Price | $105-$135 |
| Packaging Details | Customized packaging etc. |
| Delivery Time | 1-5pcs ,5 days . >20pcs ,To be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Noise Level | Low | Load Capacity | High |
|---|---|---|---|
| Resolution | High | Stroke Length | 10mm |
| Force Output | High | Voltage | 24V |
| Rated Power | 2500N | Product Type | Linear Voice Coil Motor With Shaft |
| Model Number | VCAB0033-0099-00A | ||
| Highlight | Semiconductor Linear Voice Coil Motors,Semiconductor Linear Voice Coil Motor |
||
Product Description
Low Power Consumption High Resolution Linear Voice Coil Motor
Product Description:
Our Linear Voice Coil Product is a reliable product that offers a high level of performance. It is a Linear Voice Coil Motor With Shaft that is designed for precise positioning accuracy and a stroke length of 10mm. This product is also characterized by its low power consumption and a current range of 4.2A. Our Linear Voice Coil Product provides exceptional performance and is an ideal choice for applications that require precision and accuracy.
Built in motion shaft and precision linear bearing. The moving shaft is made of light, high rigidity and wear-resistant high-quality materials.
It is widely used in semiconductor, precision test and detection, valve flow control field.
Features:
- Product Name: Linear Voice Coil Motor
- Product Type: Linear Voice Coil Motor With Shaft
- Voltage Range: 24V
- Noise Level: Low
- Resolution: High
- Positioning Accuracy: High
Technical Parameters:
| Parameters | Value |
|---|---|
| Model Number | VCAB Series |
| Current Range | 4.2A |
| Linearity | High |
| Stroke Length | 10mm |
| Power Consumption | Low |
| Product Type | Linear Voice Coil Motor With Shaft |
| Rated Power | 2500N |
| Positioning Accuracy | High |
| Resolution | High |
| Load Capacity | High |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
It is widely used in semiconductor, precision test and detection ,Boat, Car, Electric Bicycle, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical projec .
The Linear Voice Coil Device is now being offered by SUPT MOTION, with the model number VCAB Series. This product is made in Jiangsu, China and it is known for its high force output and low noise level. The Linear Voice Coil System Motor is an innovative solution for high load capacity applications, with a 10mm stroke length. It is designed to provide high performance and reliable operation. The Linear Voice Coil System is an efficient and cost-effective alternative to traditional solutions. It is also easy to install and maintain. SUPT MOTION’s Linear Voice Coil Motor with Shaft is the perfect solution for those who are looking for a high performance and reliable product, with high load capacity and low noise level.
