Lightweight High Linearity Linear Voice Coil Motors With Low Noise For The Automation Industry
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | VCRH Series |
| Minimum Order Quantity | 3PCS |
| Price | $108-$135 |
| Packaging Details | Customized packaging etc. |
| Delivery Time | 1-5pcs ,5 days . >30pcs ,To be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Repeatability | High | Voltage Range | 24V |
|---|---|---|---|
| Speed Range | High | Load Capacity | High |
| Linearity | High | Resolution | High |
| Rated Power | 2500N | ||
| Highlight | Semi Enclosed Voice Coil Motor 24V,Voice Coil Motor High Frequency 24V,High Frequency Response Linear Coil Actuator |
||
Product Description
High Frequency Response High Speed Low Noise Semi-Enclosed Voice Coil Motor
Product Description:
Linear Voice Coil Motor (VCRH Series)
The VCRH series Linear Voice Coil Motor is a linear vocal coil engine that offers high linearity, positioning accuracy and rated power of up to 2500N. It is a lightweight device with low noise level and high responsiveness, making it an ideal choice for a range of applications.
The linear voice coil motor offers superior performance with its high linearity feature. It ensures accurate positioning and provides a smooth and stable motion with its low noise level. The motor also has a high rated power of up to 2500N, making it suitable for applications requiring high forces.
The VCRH series linear voice coil motor is a robust, reliable and efficient device that is easy to integrate into a variety of applications. Its lightweight design and low noise level make it an ideal choice for a range of applications. It is a reliable and efficient device that is sure to meet your expectations.
Features:
- Product Name: Linear Voice Coil Motor
- Model Number: VCRH Series
- Resolution: High
- Rated Power: 2500N
- Positioning Accuracy: High
- Current Range: 4.9A
Technical Parameters:
| Product Feature | Parameter |
|---|---|
| Product Type | Linear Voice Coil Motor With Shaft |
| Model Number | VCRH Series |
| Voltage Range | 24V |
| Rated Power | 2500N |
| Current Range | 4.9A |
| Resolution | High |
| Force Output | High |
| Linearity | High |
| Power Consumption | Low |
| Noise Level | Low |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |

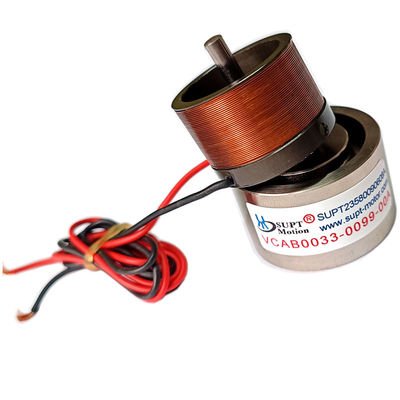

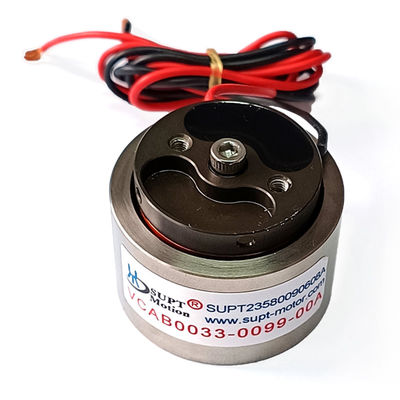

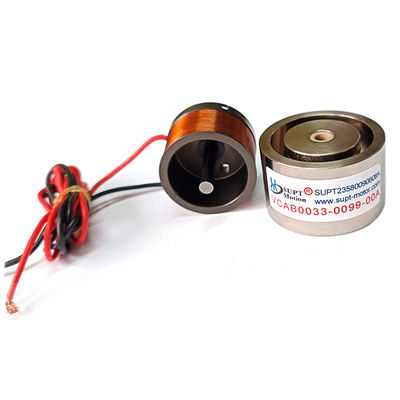

| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
SUPT MOTION VCRH Series Linear Voice Coil Motor: High Load Capacity, Low Noise Level and 2500N Rated Power
The SUPT MOTION VCRH Series Linear Voice Coil Motor is designed to meet the needs of high load capacity, low noise level and high rated power in a variety of applications. It is a linear voice coil system with 24V voltage range and maximum power of 2500N. With its strong load capacity, low noise level, and high rated power, it is ideal for applications in industrial automation, robotics, medical equipment, and other motion control applications.
The VCRH Series Linear Voice Coil Motor is designed to provide smooth and precise linear motion in a variety of applications. With its high power, low noise level, and high load capacity, it is perfect for applications that require precision and reliability. It is also designed for long-term use, with a long service life.
The SUPT MOTION VCRH Series Linear Voice Coil Motor is designed to provide reliable and accurate motion control. With its high power, low noise level, and high load capacity, it is ideal for industrial automation, robotics, medical equipment, and other motion control applications. It is designed to provide smooth and precise linear motion in a wide range of applications.
