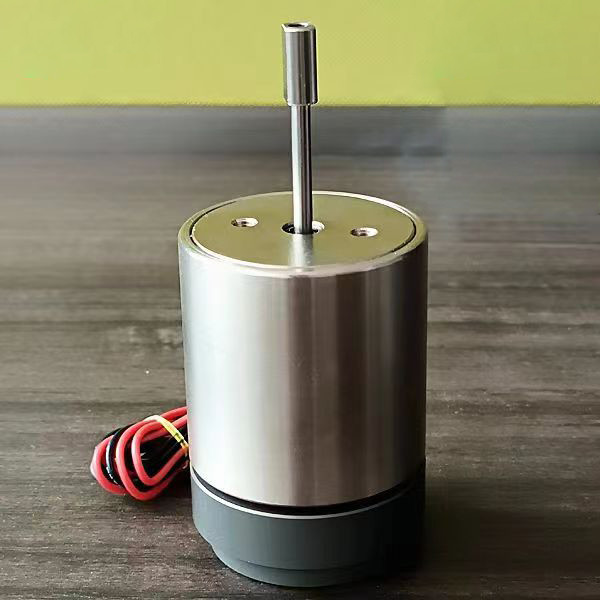

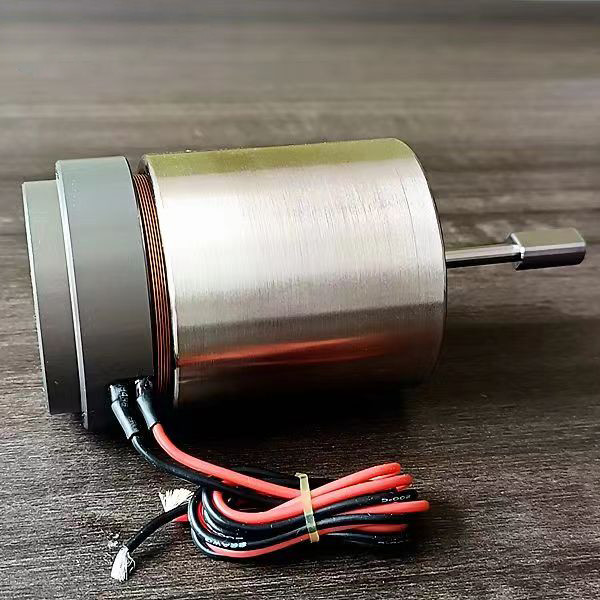

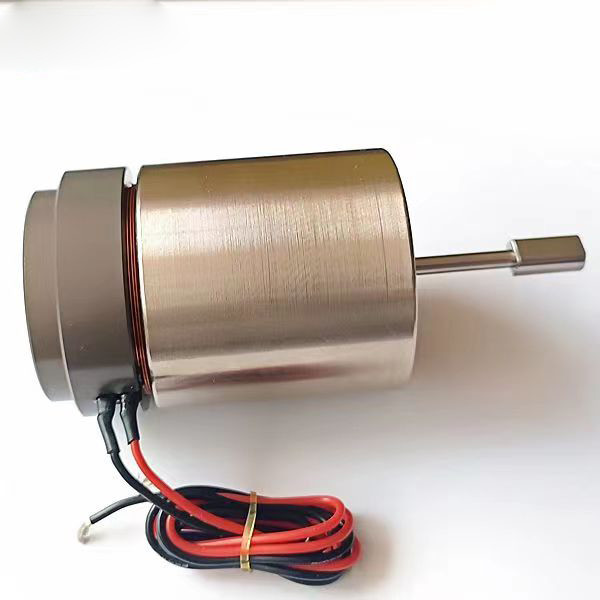

High Speed High Effective Electric Motor Coil Magnetic Motor With Shaft

  • High Speed High Effective Electric Motor Coil Magnetic Motor With Shaft
  • High Speed High Effective Electric Motor Coil Magnetic Motor With Shaft
  • High Speed High Effective Electric Motor Coil Magnetic Motor With Shaft
Place of Origin Jiangsu, China
Brand Name SUPT MOTION
Certification ISO9001
Model Number VCAH0253-0120-00A
Minimum Order Quantity 5PCS
Price $115-$140
Packaging Details Customized packaging etc.
Delivery Time 1-5pcs ,5 days . >20pcs ,To be negotiated
Payment Terms T/T
Supply Ability To be negotiated

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Speed Range High Speed Positioning Accuracy High
Voltage Range 42.7 Load Capacity High
Product Type Linear Voice Coil Motor Power Consumption Low
Linearity High
Highlight

High Speed Linear Voice Coil Motor

,

Linear Vocal Coil Engine ISO9001

,

4.2 Current Range Linear Vocal Coil Engine
Leave a Message
Product Description

High Speed Linear Vocal Coil Engine with High Load Capacity and 4.2 Current Range

Product Description:

The Linear Voice Coil Motor is a high-performance product with a wide voltage range of 42.7, high load capacity, and high positioning accuracy. The current range of the motor is 4.2. The motor offers high speed, high torque, and high accuracy. The motor is also energy efficient and reliable. It is suitable for a variety of applications including medical, automotive, aerospace, and industrial. The motor is also highly durable and can withstand harsh conditions. The Linear Voice Coil Motor is an ideal choice for applications requiring precision and accuracy.



High Speed High Effective Electric Motor Coil Magnetic Motor With Shaft 0

Features:

  • Product Name: Linear Voice Coil Motor
  • Positioning Accuracy: High
  • Product Type: Linear Voice Coil Motor
  • Repeatability: High
  • Voltage Range: 42.7
  • Speed Range: High Speed
  • Linear Voice Coil Product: High Precision Positioning
  • Linear Voice Coil System: High Repeating Accuracy
  • Linear Vocal Coil Engine: High Speed Performance


Technical Parameters:

Parameter Value
Product Type Linear Voice Coil Motor
Model Number VCAH0253-0120-00A
Force Output High
Repeatability High
Voltage Range 42.7
Resolution High
Positioning Accuracy High
Linearity High
Speed Range High Speed
Load Capacity High



VCAH series:

Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Stator Diameter (mm) The Length
(mm)		 Shaft end thread
(mm)
VCAH0253-0120-00A 253 46.5 12 42.7 16 53.95 109 M5(Inner)
VCAH0011-0070-00A 11 3.6 7 26.2 4.9 31.5 38.9 M3(Outer)
VCAH0013-0070-00A 13 4.2 7 26.6 5.7 29 40.5 M3(Outer)
VCAH0030-0100-00A 30 7.2 10 24.9 5.2 37 47 M3(Outer)
VCAH0040-0075-00A 40 12.3 7.5 16.8 6.9 36 50 ∮3
VCAH0040-0240-00A 40 6 24 44.5 8 41 83 M3(Inner)
VCAH0065-0140-00A 65 24.6 14 27.6 16 44 75 M3(Inner)
VCAH0230-0110-00A 230 100 11 34.2 37 71 117 ∮10



 VCAB series:

Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Stator Diameter Shaft end thread
(mm)
VCAB0005-0039-00A 5 1.5 3 5.4 0.9 23 29.5 M2(Outer)
VCAB0005-0050-00A 5 2.2 3.9 14.5 3.1 27 31.5 M2.5(Outer)
VCAB0013-0072-00A 13 4.2 7.2 26.6 5.72 16.2 26.2 M3(Outer)
VCAB0015-0062-00A 15 6.5 6.2 26.2 9.75 14.8 33 M3(Outer)
VCAB0015-0127-00A 15 4.9 12.7 21.5 4.1 12.5 30.5 Shaft ∮4.8
VCAB0022-0098-00A 22 6.6 9.8 24.7 5.8 20 34.1 M3(Outer)
VCAB0022-0448-00A 22 11.4 44.8 14.3 4 52 48 M3(Inner)
VCAB0032-0050-00A 32 8.9 5 29.3 7.1 48 40 M3(Inner)
VCAB0033-0099-00A 33 8 9.9 24.3 5.87 23.5 36 M3(Outer)
VCAB0033-0224-00A 33 13.5 22.4 26.7 6.8 69 58 M3(Inner)
VCAB0035-0105-00A 35 15.6 10.5 11.9 5 91 50 M3(Inner)
VCAB0044-0040-00A 44 16.3 4 18.3 8.9 46.5 53 M3(Inner)
VCAB0044-0059-00A 44.1 17.7 5.9 14.3 8 43 46 M3(Inner)
VCAB0044-0075-00A 44 13.7 7.5 16.8 7.6 38.6 31.1 M3(Outer)
VCAB0044-0249-00A 44 11.7 24.9 44.9 8.88 65.9 38.1 M3(Inner)
VCAB0070-0149-00A 70 27.3 14.9 26.9 17.7 79 43 M3(Inner)
VCAB0087-0062-00A 87 21.67 6.2 34.5 12.7 45.2 43.1 M3(Inner)
VCAB0087-0563-00A 87 17.5 56.3 63.4 8.1 177 72 shaft ∮10
VCAB0088-0191-00A 88.5 23.2 19.1 29.9 8 162 50.8 M3(Inner)
VCAB0105-0164-00A 105 35.4 16.1 20.1 11.5 150 60.4 M3(Inner)
VCAB0113-0089-00A 113 35 8.9 31 17.5 125 73 shaft ∮8
VCAB0262-0112-00A 262 111 11.2 35.1 41 285 71 shaft ∮10
VCAB0262-0249-00A 262 112 24.9 28.2 26 785 66 shaft ∮8
VCAB0294-0498-00A 294 56.8 49.8 114 24.5 685 93 shaft ∮10
VCAB0436-0187-00A 436 147.6 18.7 40.7 40.7 648 80.4 shaft ∮10
VCAB0436-0250-00A 436 167 25 31.6 37.2 775 78.4 shaft ∮10
VCAB0445-0300-00A 445 185 30 33 35 920 76.2 shaft ∮10



Applications:

Linear Voice Coil Motor produced by SUPT MOTION, with model number VCAH0253-0120-00A, is widely used in various industrial applications. It is originated from Jiangsu, China, and its stroke length is 12. It is featured by a wide voltage range of 42.7, and its resolution is high. The Linear Voice Coil Motor is a linear voice coil device with excellent performance and high resolution, making it ideal for precise motion control. It is also a reliable linear voice coil product with excellent performance and quality. SUPT MOTION's Linear Voice Coil Motor is widely used in various industries, such as medical, robotics, automation and aerospace. This Linear Voice Coil Motor is a reliable and cost-effective solution for precise motion control. It is a perfect choice for customers looking for a reliable and cost-effective linear voice coil device.

It is widely used in semiconductor, precision test and detection​ ,Boat, Car, Electric Bicycle, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical project.
