120N Servo Motor Linear Actuator Dc Linear Motor High Precision Positioning
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ISO9001, CE |
| Model Number | MLCD-0120-135-00 |
| Minimum Order Quantity | ≥1 |
| Price | $300.00 - $490.00/pieces |
| Packaging Details | Carton/Wooden box for linear motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 2000 Piece/Pieces per Month linear motor |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Peak Force(N) | 360 |
|---|---|---|---|
| Peak Current(Amps) | 4.5 | Linear Motor(mh) | 5.7 |
| Continuous Force(N) | 120 | Continuous Current(Amps) | 1.5 |
| Weight Rotor(kg) | 0.68 | Port | Shanghai Linear Motor |
| Highlight | 120N Servo Motor Linear Actuator,Servo Motor Linear Actuator XYZ,XYZ Linear Dc Servo Motor |
||
Product Description
Factory Directly Sale XYZ Linear Servo Motor High-Precision Positioning
Product Description

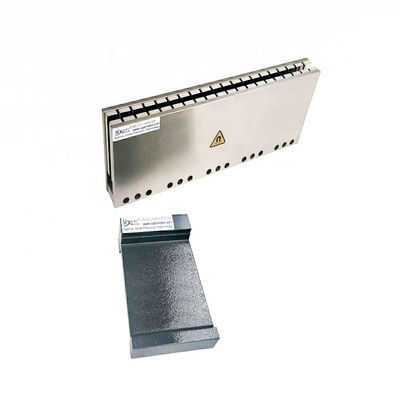

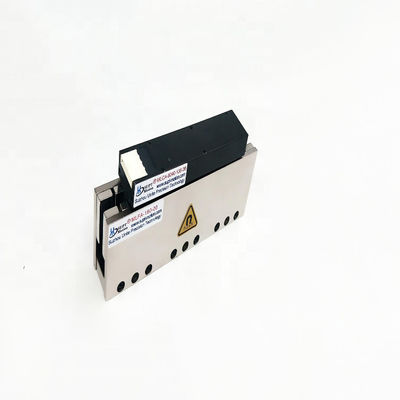

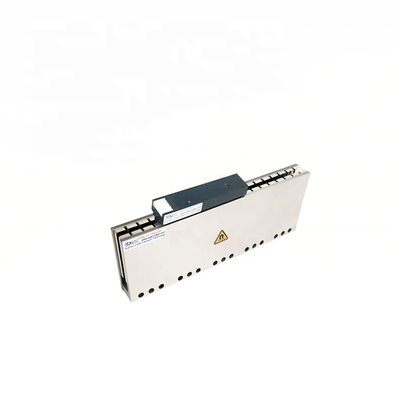

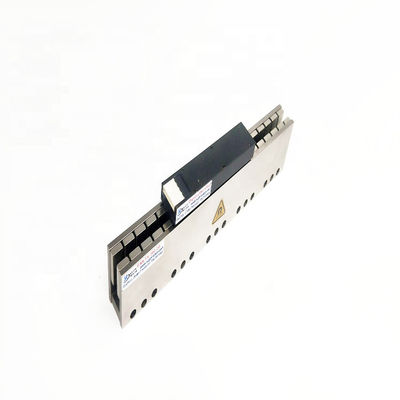

U-type coreless linear motor MCD series rotor only coil without magnet, moving stator between no suction, no cogging effect, smooth operation. Light power, high speed, high acceleration, smooth thrust characteristics, with the application of grating ruler, to achieve high accuracy, travel can be arbitrarily extended, mute, maintenance-free. Imported epoxy high temperature high pressure vacuum filling, high flexible power cable. Widely used in semiconductor manufacturing equipment, Flat panel display industry precision testing equipment, laser cutting, laser marking, machine vision inspection equipment. Modular design, can be customized processing.
Technology parameters:
| D Series--MLCD(Dynamic) MLFD(Stator) | |||||||
| Model/Par | MLCD-0055-075-00 | MLCD-0120-135-00 | MLCD-0200-255-00 | ||||
| Peak force(Fp) | N | 165 | 360 | 600 | |||
| Peak current(lp) | Amps | 4.5 | 4.5 | 7.8 | |||
| Continuous force(Fc) | N | 55 | 120 | 200 | |||
| Continuous current(lc) | Amps | 1.5 | 1.5 | 2.6 | |||
| Actuator constants(DC motor conversion/3p)(Ka) | N/W | 11.1 | 16.9 | 21.9 | |||
| Constant Thrust(L-L)(Kf) | N/Amps | 39.1 | 80.5 | 80.5 | |||
| Back EMF constant(L-L)(Kb) | V/m/sec | 22.6 | 47.2 | 44.8 | |||
| Electrical constant(Te) | ms | 0.35 | 0.35 | 0.35 | |||
| Resistance(L-L)(R) | @25℃Ω | 8.2 | 16.1 | 8.2 | |||
| Inductance(L-L)(l) | mh | 2.85 | 5.7 | 2.86 | |||
| Heat transfer coefficient(Rth) | ℃/W | *2.6 | **1.5 | **0.88 | |||
| Coil maximum temperature(Tmax) | ℃ | 120 | 120 | 120 | |||
| Magnet Pole pitch(2T) | mm | 30 | 30 | 30 | |||
| Mover weight | Kg | 0.38 | 0.68 | 1.3 | |||
Linear motor main features.
1, large acceleration;.
2,Smooth thrust characteristics.
3,Modularized design
4,Stroke can be arbitrarily extended.
5,Silent sound; 6,Maintenance-free etc.
6, maintenance-free, etc., with the application of scale, to achieve high precision.
Linear motor its main applications.
1. Semiconductor manufacturing equipment, including wafer manufacturing and chip packaging equipment, etc.
2. Flat panel display industry (FPD) precision test equipment, hard disk manufacturing, connector manufacturing, printed board equipment, etc.
3. Life sciences, medical equipment, machine vision inspection equipment, various pick-and-place devices
4. Electronic component surface mounting, PCB testing equipment, etc.
5:Logistics equipment and devices, etc.
Packaging & Shipping
Main port:Shanghai/Shenzhen/Guangzhou or as require.
Leading time:Normally goods can be ready within in 20-40days.
Express company:DHL,TNT,UPS,FEDEX,etc.
